Product Description
Our products have CE, FCC, RoHS, ISO 9001 certifications and acquired 13 patents
We provide factory direct technician support and all-life after-sales services.
We have different capacity drones, 10liter, 16liter, 30liter and 40liter sprayer drones.
We also accept OEM order.
Xag Dji T30 T40 Type Joyance 10kg 16kg 30kg 40kg Agricultural/Agriculture Spraying Pesticides, herbicides Agras Pest Control Sprayer Drone With GPS

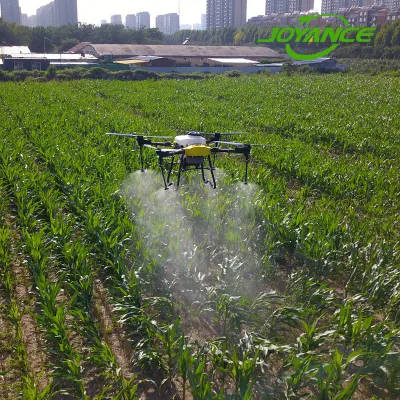

Joyance agricultural sprayer drone, 10 16 30 40 liter pesticide tank.
Functions:
1. Intelligent flight with autopilot

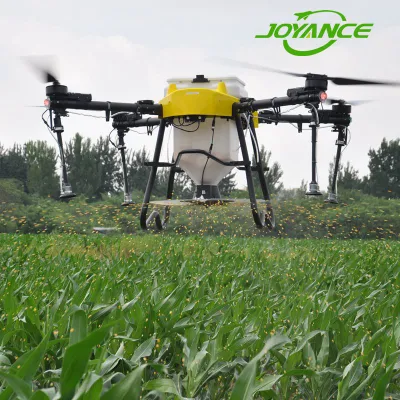

2. Sprayer & spreading 2 in 1 functions
3. Intelligent memory, recording break-point; auto-return and continue to spray
4. Adjustable spray flow rate by fly speed
5. Adjustable altitude and fly speed
6. Fail-safe protection, return when out of control
7. Low voltage warning
8. Low liquid capacity warning
9. Terrain following
10. Digital fence
11.Obstacle avoidance
12. Display spray datas in real time
| Model | JT 10L-404 QC | JT 16L-404QC | JT30L-404 | JT30L-606 | JT40L-404 |
| Pesticide Tank | 10L | 16L | 30L | 30L | 40L |
| Net Weight | 13 kg | 18 kg | 23 kg | 27.5 kg | 42 kg |
| Take-off Weight | 27 kg | 40 kg | 62 kg | 67 kg | 82 kg |
| Flying Time | 10~15min | 10~15min | 10~15min | 10~15min | 10~15min |
| Flying Radius | 0~1000m | 0~1000m | 0~1000m | 0~1000m | 0~1000m |
| Flying Height | 0~30m | 0~30m | 0~30m | 0~30m | 0~30m |
| Flying Speed | 0~12m/s | 0~12m/s | 0~12m/s | 0~12m/s | 0~12m/s |
| Spray Speed | 0~8m/s | 0~8m/s | 0~8m/s | 0~8m/s | 0~8m/s |
| Work Temperature | -10~70°C | -10~70°C | -10~70°C | -10~70°C | -10~70°C |
| Work Humidity | 0~90% | 0~90% | 0~90% | 0~90% | 0~90% |
| Spray Width | 3.5~5.5m | 4~6m | 8~10m | 8~10m | 6~10m |
| Spray Flow | 1~1.5L/min | 2~2.5L/min | <7.5L/min | ≤7.5L/min | ≤10L/min |
| Spray Efficiency | 5~7Ha/Hr | 8~10Ha/Hr | 12~15Ha/Hr | 12~15Ha/Hr | 15~20Ha/Hr |
| Flying Downward Airflow | 4~15m/s | 4~15m/s | 4~15m/s | 4~15m/s | 4~15m/s |
| Wind Resistance | 10m/s | 10m/s | 10m/s | 10m/s | 10m/s |
- Pesticides, Insecticides, Herbicides, Liquid Pesticides and all liquids spraying.
- Food crops, fruit trees, cash crops, and tall crops are all very suitable for spraying by drones.
-Keep operators away from the pesticide spray area to avoid pesticides poisoning.
-Mountains, hills, slopes, and muddy areas are all ideal for spraying with drones.
-High work efficiency, it can continuous work all day.
-Whole drone is foldable, after folded, the drone size will be smaller, easy for storage and transportation.
-You can place the drone in the trunk of your car, or place the drone on the back seat of your motorcycle. Very easy to transport.
-Foliding joints, made by aviation aluminum alloy, satisfy many folding times demand.
-Whole drone frame is made of aviation aluminum alloy and carbon fiber, longer service life, strong and durable.
-The warranty of the drone frame is 3 years.

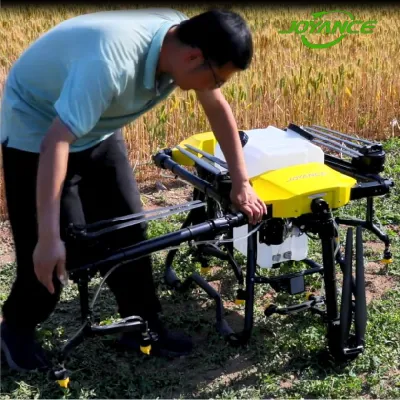

-The frame is modular design, so you can easily repair and maintain the drone.
-Obstacle avoidance radar: It can detect trees/electric poles in front of drone and stop flying immediately to avoid any accident. Make the flight satety.
-Terrain following radar: It can make the drone keep a certain height above the crops and trees. Make the flight satety.
-Quick detachable intelligent battery, easy to change, save time during working. You can see electricity directly on the battery.
-The battery level can be displayed on the APP in real time.
-Sufficient batteries in stock, ready to ship.
-The FPV camera can transmit the image in front of the drone to the APP in real time.
-LED lights can help to work at night.

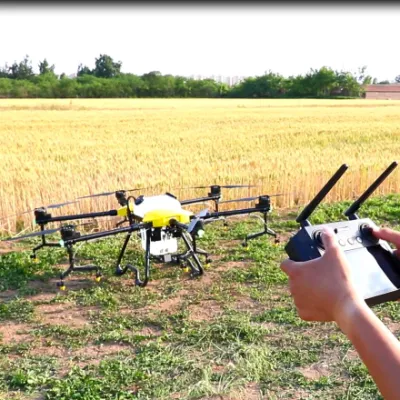

-With integrated App and 5.5 inch touch screen.
-It can program flight routes with Google maps without the need for a separate phone/tablet.
-Control distance is 1.5km.
JT40L-404 agricultural sprayer drone, highest configuration:
- 40 liter pesticide tank, 40 kg payload;
- 4 axis, 4 centrifugal nozzles;
- Spraying and spreading 2 functions;
- Aviation aluminum alloy frame and folding joints;
- Front and rear FPV cameras;
- Front and rear obstacle detection radar;
- Terrain following radar;
- Ultrasonic flow meter to achieve precise spraying;
- Weighing module enables precise spreading;
- RTK antennas;
JT30L-606 agricultural sprayer drone, 6-axis design:
- 30 liter pesticide tank, 30 kg payload;
- 6 axis, 12pcs high-pressure nozzles or 4 pcs centrifugal nozzles;
- Spraying and spreading 2 functions;
- Aviation aluminum alloy frame and folding joints;
- Front FPV camera;
- Front obstacle detection radar;
- Terrain following radar;
JT30L-404 agricultural sprayer drone:
- 30 liter pesticide tank, 30 kg payload;
- 4 axis, 2 pcs centrifugal nozzles;
- Spraying and spreading 2 functions;
- Aviation aluminum alloy frame and folding joints;
- Front FPV camera;
- Front obstacle detection radar;
- Terrain following radar;
- Ultrasonic flow meter to achieve precise spraying;
JT16L-404QC agricultural sprayer drone, the most cost-effective one:
- 16 liter pesticide tank, 16 kg payload;
- 4 axis, 8pcs high-pressure nozzles;
- Spraying and spreading 2 functions;
- Aviation aluminum alloy frame and folding joints;
- Front FPV camera;
- Front obstacle detection radar;
- Terrain following radar;
-Quick detachable pesticide tank
JT10L-404QC agricultural sprayer drone, suitable for small farm use:
- 10 liter pesticide tank, 10 kg payload;
- 4 axis, 4pcs high-pressure nozzles;
- Aviation aluminum alloy frame and folding joints;
- Front FPV camera;
- Front obstacle detection radar;
- Terrain following radar;
- Quick detachable pesticide tank;
We transport all our agriculture sprayer drones by aluminum box.
Battery, charger, drone in one aluminum box, for spare space, with fill with foam.
So during transportation, the drone will not move.
It will protect drones during delivery, and all Joyance drones will arrive safely and without damage.
JOYANCE TECH is a professional and leading drone agricultural sprayer manufacturer located in China. Since 2016, JOYANCE TECH has focused on the research & development of sprayer drones and UAV application solutions. Our products have obtained CE, FCC, RoHS, ISO9001 certifications along with 19 national patents and 7 software copyrights. We have users and agents in more than 90 countries and have received significant positive feedback.
Our sprayer drones, spreading drones, fogger drones, and biological control drones are widely used in agricultural spraying, seeding, pest control, and public disinfection. After several years of development, we have expertly designed 10lt, 16lt, 30lt, 40lt capacity sprayer drones. We can produce approximately 200 drones per month. The drones undergo 100% indoor and flight tests to ensure they are qualified and ready to fly before delivery.
We offer professional technician support, superior competitive price and fast response after-sales service and one-on-one technical guidance.
Our mission is to make the most desirable drones on the market. Let all farmers can use drones. We also accept OEM orders and looking for agents all over the world.
1. Are you manufacturer?
Yes. Joyance Tech is a leading & professional sprayer drone factory with 10 years Research & Development experiences. We have sold to 90 countries all over the world, we have all models in stock.2. What certificates do you have for your products?
Our products have got CE, FCC, RoHS, ISO 9001 certifications and acquired 13 patents, and have been exported to 90 countries and regions. Our sprayer drones are very popular with farmers.
3. Can this drone fly autonomously?
Yes. It has an autonomously flying app in the remote controller you will mark the points on the app, and the drone will carry out the plan autonomously
4. Does the drone need phone signal/internet to work?
During the spraying, the drone can still work without signal/internet. When planning a plot, you need the Internet. You can plan the plot and save it at home or anywhere else with an Internet connection.
5. Can we operate the drone in the car?
Yes, but make sure you can see the drone position during working and open the door and window of the car to keep the signal well.
6. Can it fly in greenhouse?
No, there is no GPS signal in the greenhouse, so the drone can not fly. Do you have other non-greenhouse crops that need spraying?
