Basic Info.
Model NO.
D72L-8
Material
Aviation Carbon Fiber and Aviation Aluminum
Type
Sprayer Drone
Sprayer Type
Pump
Usage
Agriculture
Applicable Industry
Farms,Home Use,Epidemic Prevention
Feature
Anti-Fall
Production Material
Aviation Carbon Fiber and Aviation Aluminum
Production Folding Size
730mm*830mm*1560mm
Max Pesticide Load
72kg
Aircraft Medicine Box Capacity
72L
Flight Radius
Less Than 5000m
Max Takeoff Weight
123kg
Aircraft Weight
44kg
Flight Attitude
Less Than 30m
Flight Duration
13-40minutes
Condition
New
Warranty Time
12 Months
Transport Package
Professional Package Box
Specification
2 CBM
Trademark
Brouav
Origin
China
HS Code
8802200090
Production Capacity
10000 Unit
Product Description

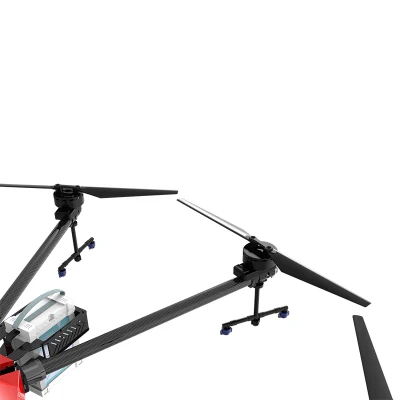

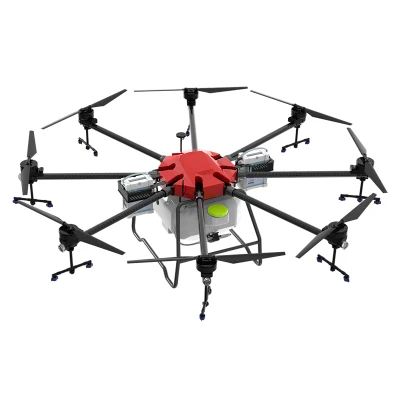

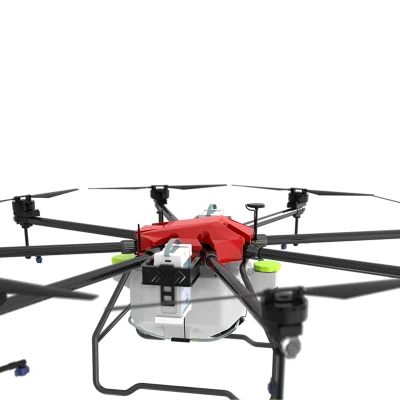

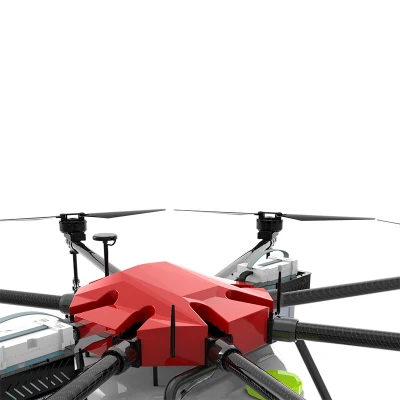

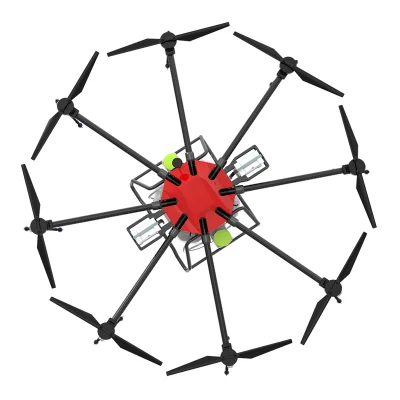

Agricultural Spraying Nozzles Pump Drone UAV For Fruit Tree
- OEM & ODM Service -
- OEM & ODM Service -
(1) There is no substitute for artificial operation for crops in the near maturity stage, such as tall stem and rattan, and artificial and tractor towing sprayer in complex terrain and paddy fields. The advantages of PLANT protection UAV in high-altitude operation are prominent.
(2) Good prevention and control Effect. As the PLANT protection UAV adopts ultra-low quantity spray, special flight prevention auxilaries are used in plant protection flight and prevention operations, with low height and less drift, the downward airflow generated by the rotor during pesticide spraying can help to increase the penetrability of logistics to crops.
(2) Good prevention and control Effect. As the PLANT protection UAV adopts ultra-low quantity spray, special flight prevention auxilaries are used in plant protection flight and prevention operations, with low height and less drift, the downward airflow generated by the rotor during pesticide spraying can help to increase the penetrability of logistics to crops.
| Model | D72L-8 |
| Product material | Aviation carbon fiber + aviation aluminum |
| Product expansion size | 3090mm*3090mm*910mm |
| Product folding size | 900mm*730mm*1760mm |
| Packaging size | 1730mm*1200mm*790mm |
| Maximum takeoff weight | 123KG |
| Aircraft weight | 44KG |
| Pesticide Barrel | 72L |
| Flight altitude | ≤30 meters |
| Fly time(unloaded) | 20~30 minutes |
| Fly time(loaded) | 1-20 m / sec |
| Flight speed | ≥10 years |
| Structure lift span | 6-12 meters |
| Spray width | 10~18minutes when fully loaded |
| Hovering in the air | Hovering in any direction |
| Spray flow | 3-16L/min |
| Spray system | Imported high pressure anti-floating atomizing nozzle |
| Atomization point size | 60~500μm |
| Fly control | Agricultural special controller |
| Spray efficiency | ≥20hectares / hour |
| Safe takeoff and landing wind speed | ≤5 |
| Motor speed | 5000rpm |
| Power system | 60.9V power polymer computer battery |
| Charer | AC Input 100-240V |
| Lithium-polymer battery | 32000mAh*2 |
