Save 30% Pesticide Evenly Spraying New 4-Axis Crop Spraying Drones Save Your Farming Cost

Get the newest 4-Axis Crop Spraying Drones from our factory and save 30% on pesticide usage, while achieving even coverage. Save on farming costs now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Detailed Photos
  • Our Advantages
  • Other Products
  • Packaging & Shipping
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
JT30L-404 crops spraying drone
Warranty
3 Years
Installation
Intelligent
Liquid Contained
Medicine, Disinfector, Pesticides
Spraying Shape
Pesticide/Fertilizer
Volume
30liter
Power Supply
Electric
Technics
Intelligent
Material
Aviation Aluminum Alloy
Type
Sprayer Drone
Product Name
Spraying New 4-Axis Crop Spraying Drones
Manufacturer
Yes
Autonomously Flight
Yes
Foldable
Yes
Capacity
30 Liter
Spraying Speed
10 M/S
Nozzles
2 PCS Centrifugal Nozzles
Battery
1 PC 14s 22000mAh Smart Battery
Spraying Width
8-10m(Above Crops 1-3 M)
Waterproof
Yes
Radar
Obstacle Detect Radar
Charger
Fast Charger
Remote Controller
H12
Technical Support
Yes
Wind Resistance
10m/S
Transport Package
Aluminum Box
Specification
30 Liter
Trademark
Joyance
Origin
China
HS Code
8424899990
Production Capacity
200 Units/Month

Packaging & Delivery

Package Size
96.00cm * 91.00cm * 64.00cm
Package Gross Weight
100.000kg

Product Description

  Save 30% Pesticide Evenly Spraying New 4-Axis Crop Spraying Drones Save Your Farming Cost

Product Description

Save 30% Pesticide Evenly Spraying New 4-Axis Crop Spraying Drones Save Your Farming Cost
Save 30% Pesticide Evenly Spraying New 4-Axis Crop Spraying Drones Save Your Farming Cost


Joyance JT30L-404 agricultural sprayer drone, 30 liter pesticide tank, payload 30kg.
- Aviation aluminum alloy frame and folding joint, durable and tough
- Quick pluggable intelligent battery, high energy density, support for fast charging, longer life. It can display the left voltage and electricity directly.
- Whole drone is waterproof IP56, suitable for working in the farm.
- Heavy duty brushless motors, waterproof and dustproof, with self cooling system, can work continuously for 12 hours per day.
- Two centrifugal nozzles, suitable for fruit trees
- Spraying and spreading system, 2 functions in one drone

Product Parameters

Model JT 10L-404 QC JT 16L-404QC JT30L-404 JT30L-606 JT40L-404
Pesticide Tank 10L 16L 30L 30L 40L
Net Weight 13 kg 18 kg 23 kg 27.5 kg 42 kg
Take-off Weight 27 kg 40 kg 62 kg 67 kg 82 kg
Flying Time 10~15min 10~15min 10~15min 10~15min 10~15min
Flying Radius 0~1000m 0~1000m 0~1000m 0~1000m 0~1000m
Flying Height 0~30m 0~30m 0~30m 0~30m 0~30m
Flying Speed 0~12m/s 0~12m/s 0~12m/s 0~12m/s 0~12m/s
Spray Speed 0~8m/s 0~8m/s 0~8m/s 0~8m/s 0~8m/s
Work Temperature -10~70°C -10~70°C -10~70°C -10~70°C -10~70°C
Work Humidity 0~90% 0~90% 0~90% 0~90% 0~90%
Spray Width 3.5~5.5m  4~6m  8~10m  8~10m 6~10m
Spray Flow 1~1.5L/min 2~2.5L/min <7.5L/min ≤7.5L/min ≤10L/min
Spray Efficiency  5~7Ha/Hr 8~10Ha/Hr 12~15Ha/Hr 12~15Ha/Hr 15~20Ha/Hr
Flying Downward Airflow 4~15m/s 4~15m/s 4~15m/s 4~15m/s 4~15m/s
Wind Resistance 10m/s 10m/s 10m/s 10m/s 10m/s

Detailed Photos

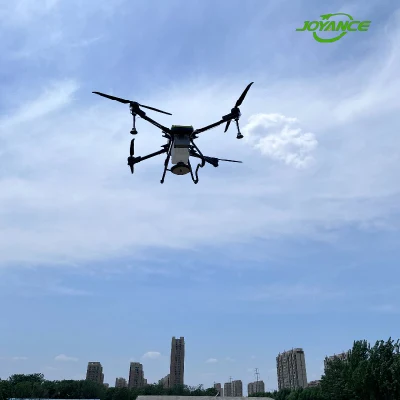

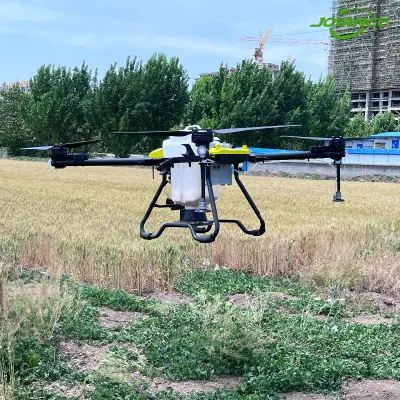

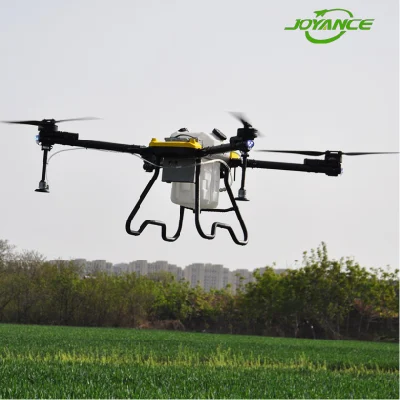

JT30L-404 sprayer drone has 4 arms, 4 axis, 4 propellers, 2 centrifugal nozzles. Fly with 1pc 14S 22000mAh smart battery. It can spraying pesticides, and also can spreading fertilizers, spraying and spreading 2 in 1 functions.
Save 30% Pesticide Evenly Spraying New 4-Axis Crop Spraying Drones Save Your Farming Cost
Save 30% Pesticide Evenly Spraying New 4-Axis Crop Spraying Drones Save Your Farming CostSave 30% Pesticide Evenly Spraying New 4-Axis Crop Spraying Drones Save Your Farming Cost
Save 30% Pesticide Evenly Spraying New 4-Axis Crop Spraying Drones Save Your Farming CostSave 30% Pesticide Evenly Spraying New 4-Axis Crop Spraying Drones Save Your Farming Cost
Save 30% Pesticide Evenly Spraying New 4-Axis Crop Spraying Drones Save Your Farming CostSave 30% Pesticide Evenly Spraying New 4-Axis Crop Spraying Drones Save Your Farming Cost
Save 30% Pesticide Evenly Spraying New 4-Axis Crop Spraying Drones Save Your Farming CostSave 30% Pesticide Evenly Spraying New 4-Axis Crop Spraying Drones Save Your Farming Cost

Our Advantages

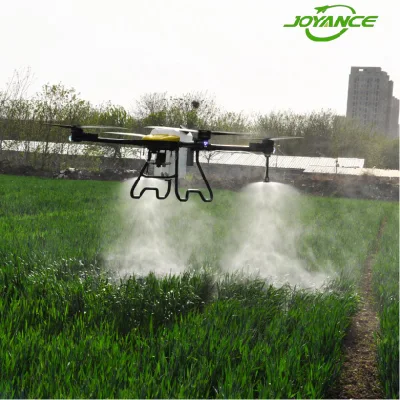

JT30L-404 agricultural sprayer drone:
- With 2 centrifugal nozzles, can spray pesticides, herbicides and all liquid chemicals

- Spray degree 130°
- Droplet size 50~200um
- Suitable for spraying all crops, especially fruit trees
Save 30% Pesticide Evenly Spraying New 4-Axis Crop Spraying Drones Save Your Farming Cost
Save 30% Pesticide Evenly Spraying New 4-Axis Crop Spraying Drones Save Your Farming Cost
JT30L-404 agricultural drone:
- Sprayer and spreader 2 in 1
- The drone can spray both liquid chemicals and solid fertilizer, fast and easy to switch 2 systems.
- Spreading system, can spread solid fertilizers, seeds, baits, etc
JT30L-404 agricultural drone:
- High quality aviation aluminum alloy frame and carbon fiber axes, strong and long service life.
- Buckle folding design, easy to fold the arm.
Save 30% Pesticide Evenly Spraying New 4-Axis Crop Spraying Drones Save Your Farming Cost
Save 30% Pesticide Evenly Spraying New 4-Axis Crop Spraying Drones Save Your Farming Cost
JT30L-404 agricultural drone:
- Adopt smart battery, high energy density, support fast charge, long life. Build-in battery management system, easy to manage and maintain.
- 14s 22000mAh Tattu battery, low cost for spraying service.
4 batteries for continuous work. 15 minutes fast recharging.
JT30L-404 agricultural drone:
Waterproof & dustproof level IP56.
- Easy to clean and maintain after work
Save 30% Pesticide Evenly Spraying New 4-Axis Crop Spraying Drones Save Your Farming Cost
Save 30% Pesticide Evenly Spraying New 4-Axis Crop Spraying Drones Save Your Farming Cost
JT30L-404 agricultural drone:

Rugged FPV camera and night lights make flying safer. Integrated remote control, 5-inch large display, ground station, and image switch with one button.




Save 30% Pesticide Evenly Spraying New 4-Axis Crop Spraying Drones Save Your Farming Cost

Other Products



Save 30% Pesticide Evenly Spraying New 4-Axis Crop Spraying Drones Save Your Farming Cost
Save 30% Pesticide Evenly Spraying New 4-Axis Crop Spraying Drones Save Your Farming Cost
Save 30% Pesticide Evenly Spraying New 4-Axis Crop Spraying Drones Save Your Farming Cost

             10L agricultural sprayer drone                                                         16L agricultural sprayer drone                                           30L agricultural sprayer drone



Save 30% Pesticide Evenly Spraying New 4-Axis Crop Spraying Drones Save Your Farming Cost
Save 30% Pesticide Evenly Spraying New 4-Axis Crop Spraying Drones Save Your Farming Cost
Save 30% Pesticide Evenly Spraying New 4-Axis Crop Spraying Drones Save Your Farming Cost

                40L agricultural sprayer drone                                               16L hybrid agricultural sprayer drone                                             Cleaning drone


  Joyance drone factory supply different capacity sprayer drones, 10-liter drone, 16-liter drone, 16-liter hybrid drone, 30-liter drone, 40-liter drone, cleaning drones.
Welcome to contact for more info!

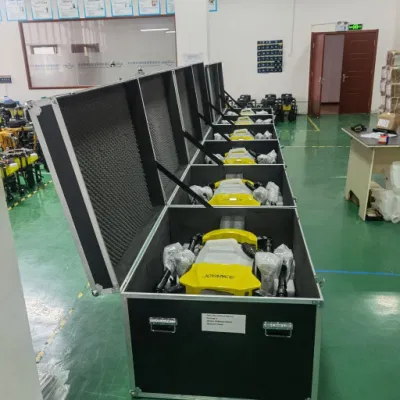

Packaging & Shipping

Shipping way: ship by sea, air, courier.
We can ship the drone according to customers' request.
Save 30% Pesticide Evenly Spraying New 4-Axis Crop Spraying Drones Save Your Farming Cost

Company Profile

Shandong Joyance Intelligence Technology Co., Ltd.
Joyance Tech is a professional and leading drone agricultural sprayer manufacturer located in China. Since 2012. Joyance Tech has focused on the research & development of sprayer drones and UAV application solutions. Our products have obtained C E, F C C, R O H S, I S O 9 0 0 1 certifications along with 18 national patents and 7 software copyrights. We have users and agents in more than 92 countries and have received significant positive feedback.

Save 30% Pesticide Evenly Spraying New 4-Axis Crop Spraying Drones Save Your Farming Cost

Joyance agricultural drones received many good feedbacks from customers in different countries. And we are looking for distributors and agents all over the world, welcome to contact for more info.

Save 30% Pesticide Evenly Spraying New 4-Axis Crop Spraying Drones Save Your Farming CostSave 30% Pesticide Evenly Spraying New 4-Axis Crop Spraying Drones Save Your Farming Cost


FAQ



1. Are you manufacturer?
Yes. Joyance Tech is a leading & professional sprayer drone factory with 10 years Research & Development experiences. We have sold to 90 countries all over the world, we have all models in stock.

2. What certificates do you have for your products?
Our products have got CE, FCC, RoHS, ISO 9001 certifications and acquired 13 patents, and have been exported to 90 countries and regions. Our sprayer drones are very popular with farmers.

3. Can this drone fly autonomously?
Yes. It has an autonomously flying app in the remote controller you will mark the points on the app, and the drone will carry out the plan autonomously

4. Does the drone need phone signal/internet to work?
During the spraying, the drone can still work without signal/internet. When planning a plot, you need the Internet. You can plan the plot and save it at home or anywhere else with an Internet connection.


5. Does your drone have GPS? Which satellites?
Yes, the drone has GPS supporting GPS GLONASS GALILEO BDS satellites.

6. Can this drone work in rain/strong wind/at night?
1) The whole drone is waterproof IP56, the motor is waterproof IP67. It can work in the rain, and the drone can be return in safety. Water pump waterproof grade IP68
2) The wind resistance is 10m/s, can spray in the strong wind
3)The drone has FPV function, including a camera and 2 LED light for night work.
