Basic Info.
Model NO.
XK-FA100
Production Capacity
50000PCS/Year
Product Description
Surveillance UAV Plant Supply Protection UAS Manufacturer Traffic Patrol Security Store Patrol Environmental Monitoring Pipeline Inspection Water Conserva
Basic Info
| Model NO. | XK-FA100 | Forest Inspection Uav | Fixed Wing Uav |
| Max. Takeoff Weight | 13.5kg | Max. Payload | <2.0 Kg |
| Autonomous Flight Mode | GPS Navigation | Recommended Cruising Speed | 70-90km/H |
| Battery Time | 2h-3h | Power System | Brushless Motor |
| Wind Resistance (Head Wind) | Fixed Wing Wind Resistance Level 6 | Max Flight Distance | >120km |
| Max Flight Altitude | 4800m | Typical Mission Load | 30X Visible Light Camera |
| Communication Distance | 30km (No Obstruction, No Interference) | Transport Package | Heavy-Duty Hard Case |
| Specification | Packing size 1200*510*420mm |
Product Description

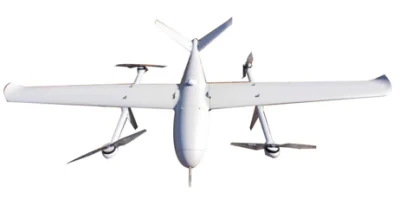

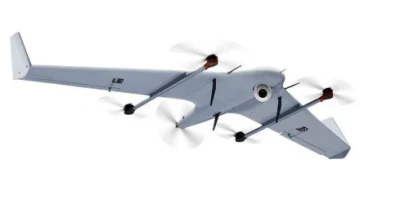

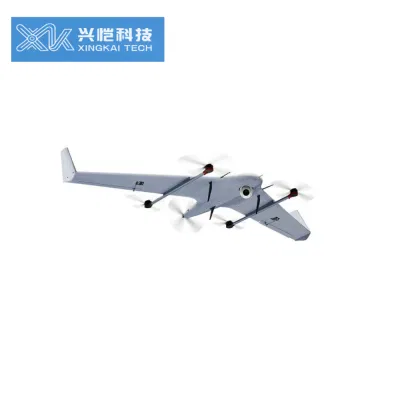

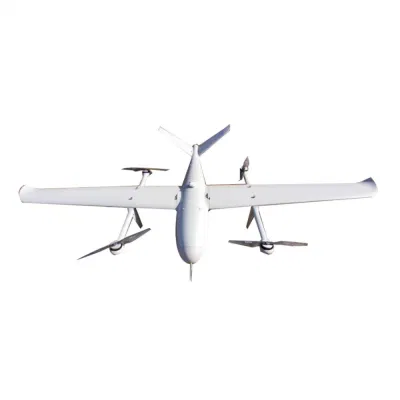

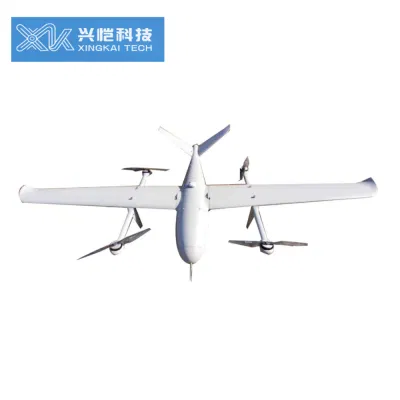

Parameters of Fixed Wing Drone
| Electric vertical take-off and landing fixed-wing UAV | |
| Length | 1260mm |
| Power mode | Electric |
| Wingspan | 2500mm |
| Max take-off weight | 13.5kg |
| Recommended Payload | ≤ 2.0kg |
| Autonomous flight mode | GPS navigation |
| Max flight altitude | 4800m |
| power system | Brushless Motor |
| Typical mission load | 30x visible light camera |
| Communication distance | 30km (no obstruction, no interference) |
| Package dimensions | 1200mm*510mm*420mm |
| Ground station | 1000mm*420mm*180mm |
| Ground station display | Dual screen display |
| Recommended cruising speed | 70-90Km/h |
| Take-off and landing method | Vertical take-off and landing |
| Maximum flight speed | 93Km/h |
| Battery life | 2h~3h |
| Flight distance | ≥120km |
| Maximum climb rate | 6m/s |
| Landing accuracy | ≤0.1m |
| Wind resistance (Head wind) | Multi-axis wind resistance level 4 Fixed wing wind resistance level 6 |
| Rainproof ability | 6mm/min |
| Power Battery | 6S 22.2V 22000mAH*2 |
| Attitude smoothness | Pitch angle≤±4o, roll angle≤±4o, yaw angle≤±3o |
Company Introduction
Shenzhen Xingkai Technology Co., Ltd. is a Global leading high-tech enterprise engaged in R&D development and production of RF wireless communication systems for the broadcast, public surveillance, and defense industries.Our R&D team has over 20 years of professional technical experience in design, develop, build, support and delivery ot end-to-end communications&advanced networkings. The company attaches great importance to the construction of the R&D team, with a team who with extensive industry experience and accumulation in the fields of RF communication, Baseband unit, and images processing.
Our products range includes mimo mesh network, tactical radio, software detined radio, tactical data link, ip encoder, there has also been continued demand in the areas of C2/C3/C4ISR/C5ISR mission systems, border and perimeter security systems, unmanned aircraft systems, unmanned surtace vessels, remote controlled systems, and homeland security solutions, law enforcement and also covering film, broadcast and live stream activities that who can't risk communication failure.
Exhibitions
Testing Instruments
Certification
Cooperative Partners
FAQ:
Q: Who we are?A: We are a Global leading high-tech enterprise engaged in R&D development and production of RF wireless communication systems for the broadcast, public surveillance and defense industries.
Q: Could you support OEM&ODM ?
A: We are able to offer you the best solutions on market by providing you OEM/ODM service.
Q. How long is the delivery time ?.
A: Normally small quantity orders will be dispatched within 2-5 working days after receiving payment. For bulk order, we will ship out within 10-15 days..
Q. How do we make a business long term and good relationship with you?
A. We will protect our partner's profit by providing them with good quality products and competitive prices. We treat every customer as a friend and do business with everyone sincerely. no matter where they come from.
Q: How can you guarantee quality?
A: For all systems before shipment, will undergo a series of tests, including vibration testing, test for functional interface&RF indicators&sensitivity¶meter settings, high and low temperature testing, trial aging testing, test the interface and all wiring, field testing outsides etc.
Q: What is your usual payment terms for orders?
A: T/T, Western Union
