Pesiticide Mist Generator for Drone Fog Sprayer for Agricultural Drone Fruit Trees Drone Sprayer Pesticide Drone Sprayer

Pesticide Mist Generator for Agricultural Drone Fruit Trees. Factory direct supply of advanced drone fog sprayers for effective pesticide application.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Company Profile
Overview

Basic Info.

Warranty
3 Years
Installation
Ready-to-Work Kit
Liquid Contained
Medicine, Disinfector
Spraying Shape
Sector
Volume
10L 16L 30L 40L
Power Supply
Electric
Technics
Self-Adhesive Label
Material
Carbon Fiber
Type
Drone Spraying
Certification
ISO9001, FCC, RoHS, CE, MSDS, Un38.3
Usage
Industrial
Structure
Unmanned Rotorcraft
Height
200m
Operating Radius
1.5km
Size
1.95X1.95X0.57m
Ready to Fly
Yes
Nozzle
Electrostatic Centrifugal Nozzles
Battery
18s 30000mAh
Charger
7200W Charger
Coverage on a Single Charge
4 Ha
Spray Efficiency
15-18 Ha Per Hour
Low Voltage Alarm
Yes
Fail-Safe Function
Yes
Cloud Service
Yes
Transport Package
Aluminum Packing Case
Specification
40 liter
Trademark
Joyance
Origin
Shandong, China
HS Code
8802200090
Production Capacity
200 Sets Per Month

Packaging & Delivery

Package Size
154.00cm * 94.00cm * 101.00cm
Package Gross Weight
150.000kg

Product Description

Pesiticide Mist Generator For Drone Fog Sprayer For Agricultural Drone Fruit Trees drone Sprayer  Pesticide drone sprayer

Product Description

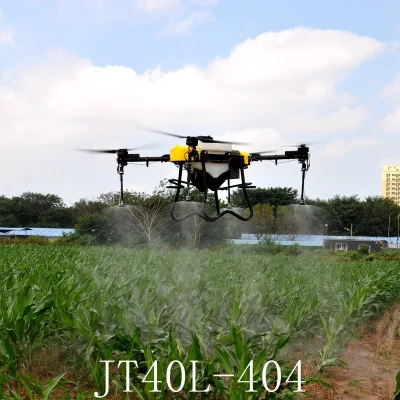

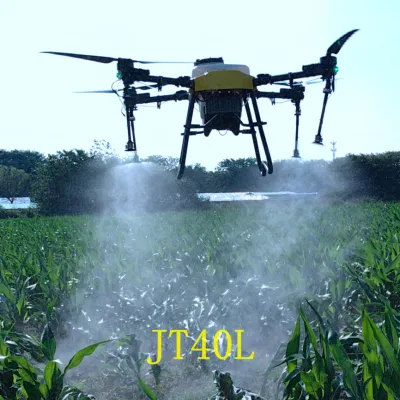

JT40L-404 drone sprayer

40L sprayer tank
Spraying: 16-18 hectares per hour

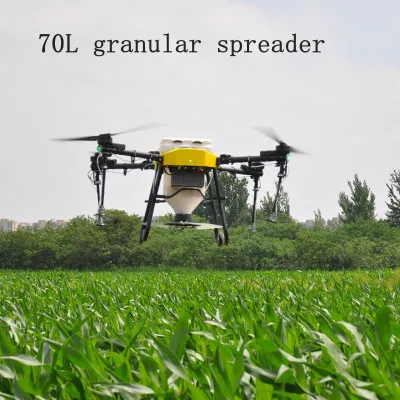

70L spreading tank
5.5 hectares per hour
Max spreading speed: 80kgs/min



4pcs centrifugal nozzles spraying span 10-12m
Accurate ultrasonic flow meter
Precise weighing module
Front and rear camera
Front and rear obstacle avoidance radar
Terrain following radar
RTK Antenna


Pesiticide Mist Generator for Drone Fog Sprayer for Agricultural Drone Fruit Trees Drone Sprayer Pesticide Drone Sprayer

Pesiticide Mist Generator for Drone Fog Sprayer for Agricultural Drone Fruit Trees Drone Sprayer Pesticide Drone Sprayer

Model JT40L-404
Pesticide Tank 40L
Net Weight 48 kg
Take-off Weight 88 kg
Flying Time 10~12min
Flying Radius 0~1000m
Flying Height 0~30m
Flying Speed 0~10m/s
Work Temperature -10~70°C
Work Humidity 0~90%
Spray Speed 0~8m/s
Spray Width/Nozzle No. >10~12m / 4 Centrifugal Nozzles
Spray Flow MAX 12L/min
Spray Efficiency 16~18Ha/Hr
Flying Downward Airflow 4~15m/s
Wind Resistance 20m/s
Machine Size Unfold: W1.52m x L0.67m x H0.93m
Fold: L1.05m x W0.67m x H0.93m
Power System FOC X11 MAX
Flight Control JIYI K++ V2
Remote Controller  H12 RC with 5.5" screen app

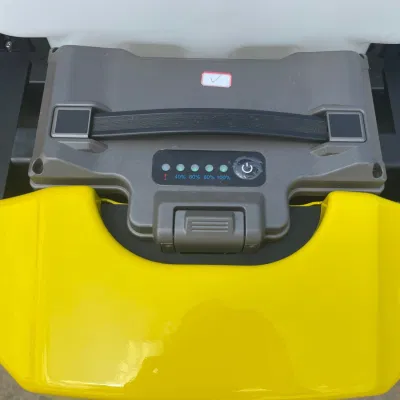

Battery / Quantity 18S 30000mAh / 1pc
Pump  Doule brushless pump

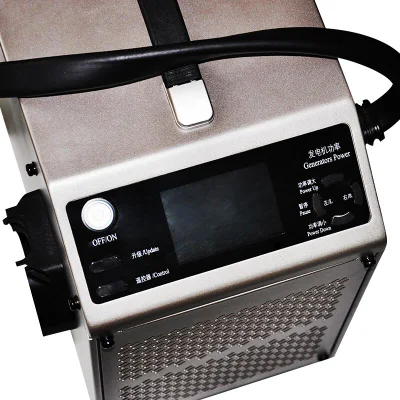

Adapter + Charger Dual-Channel Charger 7200W
Packing Case Aluminum Case
Toolkit Maintenance/Repair Tools
Terrain following radar  Terrain following
Obstacles avoiding sensor  Front and back sensor
FPV  Camera with night light

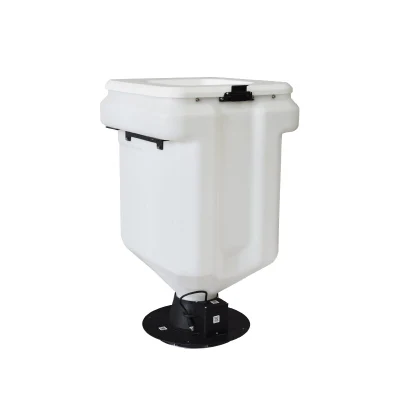

Spreader tank  scattering grass seeds, sowing seeds ,feeding , fertilizer, deicing agent etc
Detailed Photos

Pesiticide Mist Generator for Drone Fog Sprayer for Agricultural Drone Fruit Trees Drone Sprayer Pesticide Drone SprayerPesiticide Mist Generator for Drone Fog Sprayer for Agricultural Drone Fruit Trees Drone Sprayer Pesticide Drone SprayerPesiticide Mist Generator for Drone Fog Sprayer for Agricultural Drone Fruit Trees Drone Sprayer Pesticide Drone SprayerPesiticide Mist Generator for Drone Fog Sprayer for Agricultural Drone Fruit Trees Drone Sprayer Pesticide Drone Sprayer

Pesiticide Mist Generator for Drone Fog Sprayer for Agricultural Drone Fruit Trees Drone Sprayer Pesticide Drone Sprayer
Pesiticide Mist Generator for Drone Fog Sprayer for Agricultural Drone Fruit Trees Drone Sprayer Pesticide Drone SprayerPesiticide Mist Generator for Drone Fog Sprayer for Agricultural Drone Fruit Trees Drone Sprayer Pesticide Drone Sprayer



Pesiticide Mist Generator for Drone Fog Sprayer for Agricultural Drone Fruit Trees Drone Sprayer Pesticide Drone SprayerPesiticide Mist Generator for Drone Fog Sprayer for Agricultural Drone Fruit Trees Drone Sprayer Pesticide Drone Sprayer

Pesiticide Mist Generator for Drone Fog Sprayer for Agricultural Drone Fruit Trees Drone Sprayer Pesticide Drone Sprayer



Company Profile




Pesiticide Mist Generator for Drone Fog Sprayer for Agricultural Drone Fruit Trees Drone Sprayer Pesticide Drone SprayerPesiticide Mist Generator for Drone Fog Sprayer for Agricultural Drone Fruit Trees Drone Sprayer Pesticide Drone Sprayer

Clients Use Application



Company Profile
This is our drone transparent production process and qualified certificates got with CE FCC ROHS ISO9001 certificates and 24 Patents.



After Sales Service

1. Warranty: 3 years for the agriculture drone frame; 12 months for main drone spare parts; 3 months for wearing spare parts.

2. Ready to fly and Quality control: Before dispatch, every agriculture drone is 100% tested and has to pass through a rigorous quality control requirements. Ready to fly.

3. Lifelong after-sales service, operate manual and videos, timely video support is available.

4. Free training in our factory, including operation and maintenance, takes 2-3 days.

5. Offer operation manual & video in English , Spanish....and online technical support.

FAQ

Q. Are you sprayer drone factory?
A: Yes, we are a professional agricultural sprayer drone R & D and production:agricultural sprayer drones, spreader drones. thermal fogger drones. Agriculture Spraying Drone 10 kg Joyance factory price Agricultural sprayer nozzle farm drone for orchard agriculture purpose. Agriculture Spraying Drone 10 kg Joyance factory price Agricultural sprayer nozzle farm drone for orchard agriculture purpose

Q. Is uav sprayer drone ready to fly?
A:Yes.Before dispatch, JOYANCE assembled all the parts and set all the parameters. every drone is 100% tested and confirm it meets the highest standards in performance and durability

Q: How long is your delivery time of spraying drones?
A:Generally it is 2-3 days if the goods are in stock. or it is 7-15 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?
A: 50% T/T deposit for sprayer drone production, balance paid before shipment.
