Shandong Joyance Intelligence Technology Co., Ltd.
Joyance Tech is a professional and leading drone agricultural sprayer manufacturer located in China. Since 2012. Joyance Tech has focused on the research & development of sprayer drones and UAV application solutions. Our products have obtained C E, F C C, R O H S, I S O 9 0 0 1 certifications along with 18 national patents and 7 software copyrights. We have users and agents in more than 92 countries and have received significant positive feedback.

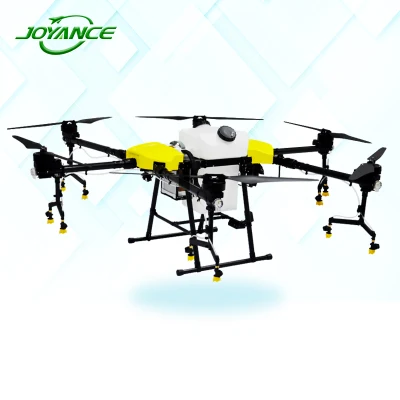

Agricultural sprayer drone
High power motor, Low cost of use, Thick size arm, Better spray effect
Smart Series Drone Sprayer | ||||||
Tank capacity | 10 Liters | 16 Liters | 30 Liters | 40 Liters | 16 liters Gasoline Hybird drone | JT Cleanning Drone |
Model | JT10L-404QC | JT16L-404QC | JT30L-404 | JT40L-404 | JT 16L-404HB | high-altitude cleaning |
Self weight | 13KG | 18KG | 23KG | 48.4KG | 36KG | 20KG |
Take off weight | 28KG | 40KG | 62KG | 80KG | 63KG | / |
Flying duration | 10-15 minutes | 30 - 60min / 5L gasoline | 15 min | |||
Spray width | 4-6m | 6-7m | 8-10m | 10m | 5-6m | Water pump pressure:100 kg Flying height: 0-30 m |
Efficiency | 5-7ha/hr | 8-10ha/hr | 12-15ha/hr | 15-18ha/hr | 8-10ha/hr | |
Battery | 1 pc 14s 10000mAh | 1 pc 14s 20000mAh | 1 pc 14S 22000mah | 3 pcs 18s 30000mah | Two-stroke two-cylinder EFI gasoline engine Gasoline tank: 5L Gasoline grade: 95# | 1 pc 14s 20000mAh |
Charger | 2 way 2.4KW (2pcs 20-25min) | 2 way 3KW (1pc 10-18min) | 2 way 3KW (1pc 16min) | 2 way 8KW (1pc 15min) | 2 way 3KW (1pc 10-18min) | |
Nozzle | 4 high pressure cone nozzles | 8 high pressure cone nozzles | 2 centrifugal nozzles | 4 centrifugal nozzles | 2 centrifugal nozzles | Effective distance between |
Spray flow | 1-1.5L/min | 2-2.5L/min | 3.5-4 L / min | 10~13 L/Min | 2-2.5L/min | 7 L/min |
Wind resistance | 10m/s |
| ||||
Spread size | W1.14 * L1.12 * H0.58 m | W1.4 * L1.35 *H 0.7 m | W2.5m x L2.5m x H0.76m | W1.85m x L1.52m x H0.9m | W2.2m x L2.2m x H0.65m | W1.4 * L1.35 *H 0.7 m |
Folded size | W0.82 * L0.64 * H0.58 m | W0.88 * L0.77 * H0.7m | W0.8m x L0.8m x H0.8m | W1.5m x L0.9m x H0.9m | W0.8m x L0.8m x H0.7m | W0.88 * L0.77 * H0.7m |
JT10L-404QC
10 liters payload, Quick plug battery and water tank, Centrifugal nozzle can be installed
JT16L-404QC
16 liters payload, quick plug battery and water tank, sprayer and spreader 2 in 1, centrifugal nozzle can be installed
JT30L-404
30 liters payload with 4 axis, sprayer and spreader 2 in 1, fast charging,ultrasonic flow meter, 2pcs centrifugal nozzles

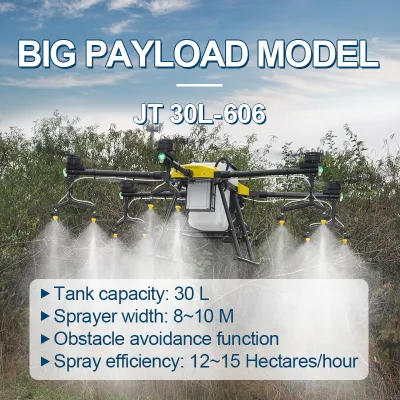

JT30L-606
30 liters payload with 6 axis, sprayer and spreader 2 in 1, centrifugal nozzle can be installed
JT16L-HB
16 liters payload, hybrid drone, long flight time, 2pcs centrifugal nozzles
JT40L-404
40 liters payload, sprayer and sprader 2 in 1, centrifugal nozzles can be installed, RTK
Drone Advantages
Optimize the design of the cross folding parts, change the force structure, and avoid the unreliability caused by the force of the thread. The folding space is small, the transition is convenient, and the transportation cost is low.
The drone can spray both liquid chemicals and solid fertilizer, fast and easy to switch 2 systems.
Droplet size 50~200um
With the centrifugal nozzles the JT30L-404 penetrates thick canopies with oblique spraying, ensuring uniform adhesion of liquid pesticides and increasing the number of droplets by 100%.
Equipped with ESC LED indicators and FPV cameras, the Joyance JT30L-404 sprayer drone provides clear views. And a bright searchlight doubles the aircraft's night vision capabilities, creating more nighttime operation possibilities.
Brushless water pump, integrated motor and Esc, long life and large flow. Protection grade lP68, no fear of acid and alkali corrosion.
How many hectares can this drone spray per hour/day?
The 30 liters drone can spray 2 hectares per flight, 12 hectares per hour if work continuously.
What is your payment terms of drone?
T/T, Credit card, online transfer, Paypal. 50% deposit before production, balance before delivery.
What is the delivery time of drone?
After payment, 3~7 days for sample order, 10~20 days for bulk order.
Does your drone have obstacle radar and terrain following?
Yes, the radar module can detect the angle of a slope and automatically adjust to maintain the same distance with the surface even in mountainous terrain. Obstacle Avoidance Obstacle avoidance is used in the following two scenarios: A. The aircraft begins to decelerate when it detects an obstacle is 15 m away and hovers in place when 2.5 m away from the obstacle. Users can not accelerate in the direction of the obstacle but can fly in a direction away from the obstacle. B. The aircraft immediately brakes and hovers if it detects an obstacle nearby. Users cannot control the aircraft when it is braking. When the aircraft is hovering, it is in Obstacle Avoidance mode. Users can fly in a direction away from the obstacle to exit Obstacle Avoidance mode and regain full control of the aircraft.
Can the drone spray solid/granule fertilizer?
Fertilizer spreader (granule spreader) can be installed on the drone to spread solid fertilizer/seed/feed, add more function for the sprayer drone.
Can the drone continue spraying from breakpoint?
The flowmeter can detect volume of water/pesticide sprayed out from the tank and display the data in App in real time. When the tank is empty the drone will hang and stop flying. After refilling it will back to the breakpoint and resume spraying work automatically.
Yes, we provide online training, multi-lingual manual and tutorial video.
What types of chemical can the drone spray?
Liquid pesticide, fungicide, foliar fertilizer, herbicide, etc.
How to buy a drone?
Contact our sales in this page to get quotation and buying guide.
How to be your distributor/dealer/agent?
We are looking for agent all over the world. Contact our sales to talk details.
