Basic Info.
Model NO.
JT 40L-404
Warranty
3 Years
Installation
Ready-to-Work Kit
Liquid Contained
Medicine, Disinfector
Spraying Shape
Sector
Volume
10L 16L 30L 40L
Power Supply
Electric
Technics
Self-Adhesive Label
Material
Carbon Fiber
Type
Drone Spraying
Item
40L Drone Sprayer
Spraying Span
10-12m
Nozzle
4 Centrifugal Nozzles
Battery
18s 30000mAh Battery
Charger
7500W Charger
Coverage on a Single Charge
2.6 Ha
Spray Efficiency
16-18 Ha Per Hour
Low Voltage Alarm
Yes
Fail-Safe Function
Yes
Cloud Service
Yes
Spreading Tank
70 L
Camera
Fpv Camera Front and Rear
Radar
Obstacles Avoidance Radar Front and Rear
Terrain
Terrain Following Radar
Transport Package
Aluminum Packing Case
Specification
16 liter
Trademark
Joyance
Origin
Shandong, China
HS Code
8802200090
Production Capacity
200 Sets Per Month
Packaging & Delivery
Package Size
154.00cm * 94.00cm * 101.00cm
Package Gross Weight
150.000kg
Product Description
40L Pulverizador Spray Farm Sprayer Fumigation Dron GPS Agriculture Pesticide Spraying Drone with Fertilizer Sow Spreader
Spray efficiency: 15-18 ha/H
Range: 6~10m
Nozzle type : centrifugal nozzles
Nozzle number: 4 pcs
Tank: 40L

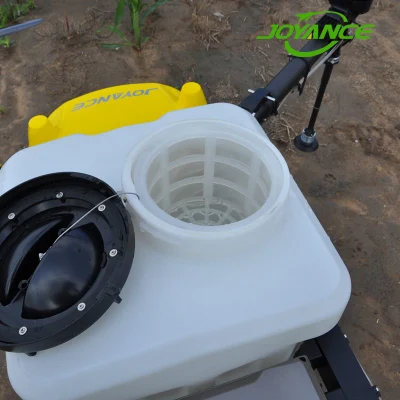

Filter class: class 3( water inlet,outlet,nozzle )
Atomizing diameter: 50~100μm
Spreading rate:5.5ha/Hr
Endurance: 6bags/battery(40kgs/bag, 240kgs)
Range:6~15m(materials amplitude
varies with height)
Max speed:80kgs/min
tank capacity:70L
Applicable materials:0.5~10mm dia. dry granules
| Model | JT40L-404 |
| Pesticide Tank | 40L |
| Net Weight | 48 kg |
| Take-off Weight | 88 kg |
| Flying Time | 10~12min |
| Flying Radius | 0~1000m |
| Flying Height | 0~30m |
| Flying Speed | 0~10m/s |
| Work Temperature | -10~70°C |
| Work Humidity | 0~90% |
| Spray Speed | 0~8m/s |
| Spray Width/Nozzle No. | >10~12m / 4 Centrifugal Nozzles |
| Spray Flow | MAX 12L/min |
| Spray Efficiency | 16~18Ha/Hr |
| Flying Downward Airflow | 4~15m/s |
| Wind Resistance | 20m/s |
| Machine Size | Unfold: W1.52m x L0.67m x H0.93m |
| Fold: L1.05m x W0.67m x H0.93m | |
| Power System | FOC X11 MAX |
| Flight Control | JIYI K++ V2 |
| Remote Controller | H12 RC with 5.5″ screen app |
| Battery / Quantity | 18S 30000mAh / 1pc |
| Pump | Doule brushless pump |

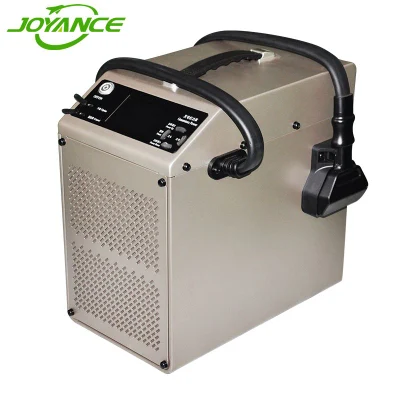

| Adapter + Charger | Dual-Channel Charger 7200W |
| Packing Case | Aluminum Case |
| Toolkit | Maintenance/Repair Tools |
| Terrain following radar | Terrain following |
| Obstacles avoiding sensor | Front and back sensor |
| FPV | Camera with night light |
| Spreader tank | scattering grass seeds, sowing seeds,feeding , fertilizer, deicing agent, etc |
Clients Use Application
Company Profile
This is our drone transparent production process and qualified certificates got with CE FCC ROHS ISO9001 certificates and 24 Patents.
After Sales Service
1. Warranty: 3 years for the agriculture drone frame; 12 months for main drone spare parts; 3 months for wearing spare parts.
2. Ready to fly and Quality control: Before dispatch, every agriculture drone is 100% tested and has to pass through a rigorous quality control requirements. Ready to fly.
3. Lifelong after-sales service, operate manual and videos, timely video support is available.
4. Free training in our factory, including operation and maintenance, takes 2-3 days.
5. Offer operation manual & video in English , Spanish....and online technical support.
FAQ
Q. Are you sprayer drone factory?
A: Yes, we are a professional agricultural sprayer drone R & D and production:agricultural sprayer drones, spreader drones. thermal fogger drones. Agriculture Spraying Drone 10 kg Joyance factory price Agricultural sprayer nozzle farm drone for orchard agriculture purpose. Agriculture Spraying Drone 10 kg Joyance factory price Agricultural sprayer nozzle farm drone for orchard agriculture purpose Q. Is uav sprayer drone ready to fly?
A:Yes.Before dispatch, JOYANCE assembled all the parts and set all the parameters. every drone is 100% tested and confirm it meets the highest standards in performance and durability
Q: How long is your delivery time of spraying drones?
A:Generally it is 2-3 days if the goods are in stock. or it is 7-15 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: 50% T/T deposit for sprayer drone production, balance paid before shipment.
