10L 16L 20L 25L 30L Plant Protection Drone Agricultural Uav Sprayer

Introducing our top-of-the-line agricultural UAV sprayer, the 10L 16L 20L 25L 30L Plant Protection Drone. Manufactured in our factory for optimal crop protection.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Product Parameters
  • Packaging & Shipping
  • Company Profile
  • Our Advantages
  • FAQ
Overview

Basic Info.

Model NO.
JS-410L
Usage
Agricultural
Structure
Fixed-Wing Uav
Model
Qk-410L
Remote Control Radius
1000m
Flight Altitude
35m
Spray Width
3-6m
Spraying Speed
3-6m/S
Spraying Efficiency
2-3 Mu /Min
Operation Height
1.5-4m
Working Efficiency
500 Mu/Day
Body Net Weight
16.85kg
Expanded Size
2.13*2.13*0.55m
Transport Package
Wooden Case
Specification
2.13*2.13*0.55m
Trademark
JIESHENG
Origin
Shandong, China
Production Capacity
500m2/600m2

Product Description

Product Description

10L 16L 20L 25L 30L Plant protection drone agricultural UAV sprayer

Plant protection UAV is an unmanned aircraft used for agricultural and forestry plant protection operations. This type of unmanned aircraft is composed of three parts: flight platform, navigation and flight control, and spraying mechanism. The ground remote control or navigation and flight control can realize spraying operations, which can spray agents, seeds, powder, etc.
Agricultural UAV is a variable spraying mode with flight speed adjustment, electric rotor, intelligent setting height and speed, automatic flight machine with auxiliary battery replacement and pesticide addition; operation distance varies from several hundred meters to several kilometers, including manual operation, semi-automatic operation, computer program / mobile APP control and so on.
The ultra-low altitude aerial plant protection operation of the uav system can reach a spraying range of 4-8 meters, the flight speed is about 0-12 meters / second, and the average operation time per mu is less than 1 minute.The amount of operations is 40-90 times that of traditional manual spraying.A farm drone system can replace 40-90 workers.Plant protection uav system spraying 1-3 meters above crops, avoid the drug drift, improve the drug area relatively reduce the use of pesticides by 50%, the drone rotor downward increased the fog penetration of crops, crops in the process of turbulence, leaves up and down uniform drug, make the spraying effect increased.

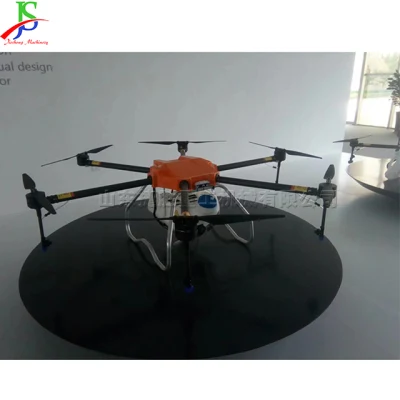

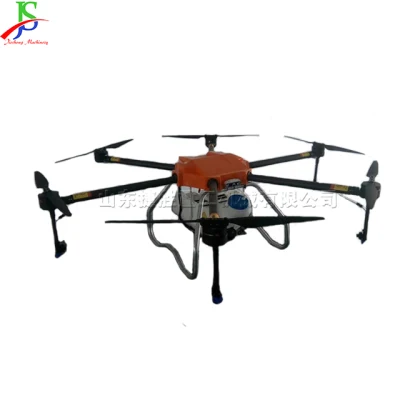

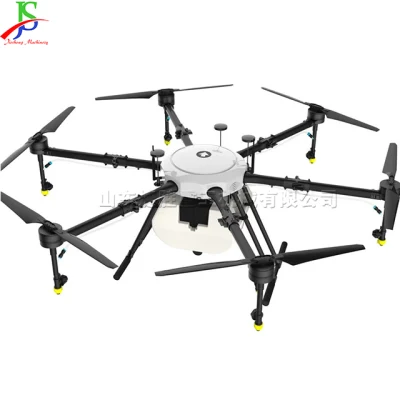

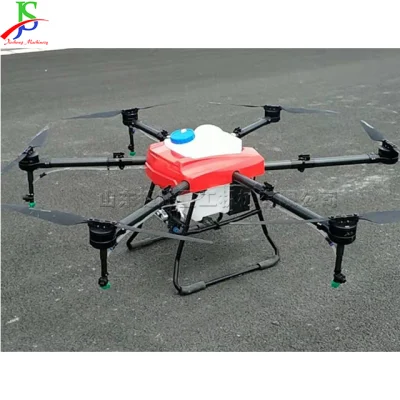

Detailed Photos

10L 16L 20L 25L 30L Plant Protection Drone Agricultural Uav Sprayer
10L 16L 20L 25L 30L Plant Protection Drone Agricultural Uav Sprayer
10L 16L 20L 25L 30L Plant Protection Drone Agricultural Uav Sprayer
10L 16L 20L 25L 30L Plant Protection Drone Agricultural Uav Sprayer
10L 16L 20L 25L 30L Plant Protection Drone Agricultural Uav Sprayer



Product Parameters

model Four axes 10L Four axes 16L Six axes 20L Six axes 25L Six axes 30L
Remote control radius 1000m 1000m 1000m 1000m 1000m
flight altitude 35m 35m 35m 35m 35m
Spray width 3-6m 3-6m 3-6m 3-6m 3-6m
Spray speed 3-6m/s 3-6m/s 3-8m/s 3-8m/s 3-8m/s
Spray efficiency 2-3 AM / min 2-3 AM / min 2-3 AM / min 2-3 AM / min 2-3 AM / min
Job height 1.5-4m 1.5-4m 1.5-4m 1.5-4m 1.5-4m
work efficiency 500 Acres / day 600 Acres / day 800 Acres / day 800 Acres / day 800 Acres / day
Net weight of the fuselage 16.85KG 20KG 25Kg 25Kg 30Kg
Expand the size 2.13*2.13*0.55m 2.5*2.5*0.7m 2.81*2.81*0.86m 2.81*2.81*0.86m 2.81*2.81*0.86m
No-load flight time 10-18min 12-20min 18-22min 18-22min 18-22min
Operation flight time 9-12min 10-13min 12-15min 12-15min 12-15min
battery capacity 1 block 16000mAh 1 block 20000mAh 1 block 22000mAh 1 block 28000mAh 1 block 32000mAh
Number of sprinkler heads Four Four Four Four Four

Packaging & Shipping

10L 16L 20L 25L 30L Plant Protection Drone Agricultural Uav Sprayer
Wooden case

Company Profile

10L 16L 20L 25L 30L Plant Protection Drone Agricultural Uav Sprayer
10L 16L 20L 25L 30L Plant Protection Drone Agricultural Uav Sprayer
10L 16L 20L 25L 30L Plant Protection Drone Agricultural Uav Sprayer
10L 16L 20L 25L 30L Plant Protection Drone Agricultural Uav Sprayer
Shandong Jiesheng Heavy Industry Machinery Co., Ltd. was established in July of 2 0 1 7, located in Jining city which near Qingdao port.
Our products mainly include Construction Machinery and Accessories, Engineering Machinery and Accessories, Road Machinery and Accessories.Agriculture Machinery, and other Machinery, etc.
We are the supplier of both foreign and domestic brands. We have the annual production capacity of 2 0,0 0 0 Pcs of Construction Machinery, 3 5,0 0 0 units of Engineering Machinery and other parts for construction machinery.
Product quality is assured from equipment, works instruction sheet, production management to quality assurance system. We can fabricate from 4 tons to 3 0 tons class for different customers with more than 4 0 equipments, including 4 units of multifunction positioners. We have more than 3 0 equipments including C N C machines. Surface treatment adopt famous brand of equipment.
 The company from research and design, manufacture, production management, equipment guarantees ability and delivery speed both in the leading level. we have 6 branches in Shandong province and Shanghai city.
We are making our efforts to be an overseas oriented company. Product features prominent specialization, seriation, customization. We have been successfully exported our machines to America, Europe, Africa and southeast Asia etc.
    We are keeping challenging ourselves with on-going innovation. We are doing our best to provide good services for our customers all over the world.



Our Advantages

1. 24 hours on line service, support Chinese, English, Spanish, French, German, Russian ,technical guidance.

2. When meets machine failure problem, our factory will ensure that the problem is solved within 1 hour.

3. Povide machine install video.

4. Provide logistics information, like shipping by sea, shipping by express DHL, FEDEX delivery, real-time tracking service.

5. If machine is broken ,Non-human causes,the new machine will be provided or new parts will be provided.

FAQ



Are you manufacture?

Yes. We are one of leading manufacturers

Do youhave Stockproductions to sell?

Yes,ofcourse.Butwe also offer OEM service. Please send us some drawing.

What information do you want to know if i want to get a quotation?

a). The model/size of your products.

b). The application for your products.

c). Special package methods if you needs.

d). Raw material.

Do you inspect the finished products?

Yes.Each step of products will be carried out inspection by QC department until shipping

What advantages do you have?

(1) Punctual: Have your orders met with the latest delivery?

We are a manufacturer with so many advanced and new machines. It ensures we have the ability to carry out the production schedual for punctual delivery.

(2) 20year production experience. We have over 20 years exprerience in this industry.

That means we can preview the problems for the orders and production. Therefore, it will make sure to deduce the risk of bad situation to happen.

(3) Point to point service.

There is two sales departments who will serve you from inquiry to products shipped out. During the process, you just need to discuss with him for all the problems and the way sames much times
