30L 4 Axis Quadcopter Farm AG Heavy Lift Drone Chemical Fertilizer Sprayers Long Range Agriculture Spraying Drone Citrus Sprayer for Farm Pesticide Crop Spray

“Shop our 30L 4 Axis Quadcopter Farm AG Heavy Lift Drone Chemical Fertilizer Sprayers Long Range Agriculture Spraying Drone Citrus Sprayer for Farm Pesticide Crop Spray. We are a factory specializing in agricultural drone equipment.”
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Parameters
  • Product Description
  • Company Profile
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Model NO.
HTU T30
Battery
30000mAh, 51.8V
Medicine Box Capacity
30L
Material Box Capacity
45L
Maximum Flow Rate
8.1L/Min
Spray
6~8m
Spreading Speed
50L/Min
Spread
5~7m
Transport Package
1100mm*1100mm*930mm
Specification
2515*1650*788mm(Unfoldable)

Product Description

Product Parameters
30L 4 Axis Quadcopter Farm AG Heavy Lift Drone Chemical Fertilizer Sprayers Long Range Agriculture Spraying Drone Citrus Sprayer for Farm Pesticide Crop Spray
HIGH COST PERFORMANCE - PLANT PROTECTION
SOLUTION
·High Efficiency ·Easy to operate ·High Quality ·Stable
·All-aviation aluminum main frame, light weight, high strength, impact resistance.
·Module-level IP67 protection, no fear of water, dust. Corrosion resistance.
·It can be applied to multi-scene crop drug spraying, sowing and spreading fertilizer.
·Easy to fold, can be installed in common agricultural vehicles, easy to transfer.
·Modular design, most parts can be replaced by themselves. 30L 4 Axis Quadcopter Farm AG Heavy Lift Drone Chemical Fertilizer Sprayers Long Range Agriculture Spraying Drone Citrus Sprayer for Farm Pesticide Crop Spray

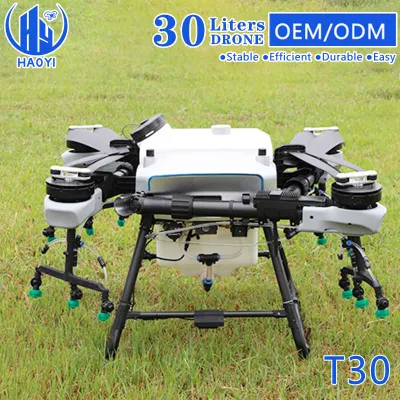

HTU T30 Product Parameters
Basic Parameters
Flight Parameters
Outline dimension
2515*1650*788mm(Unfoldable)
Hovering time
>20min(No load)
1040*1010*788mm(Foldable)
>8min(Full load)
Effective spray (depending on the crop)
6~8m
Maximum flight speed
8m/s(GPS mode)
Whole machine weight
(including battery)
40.6kg
Job height
1.5~3m
Maximum effective takeoff weight
(near sea level)
77.8kg
Positioning accuracy (good GNSS signal, RTK enabled)
Horizontal ± 10cm Vertical ± 10cm
Battery
30000mAh, 51.8V
Avoidance perception range
1~40m
Avoidance front and rear according to the flight direction
Spraying Parameters
Sowing Parameters
Medicine box capacity
30L
Material box capacity
45L
Nozzle type
High pressure Fan nozzle Support switching centrifugal nozzle
Feeding method
Roller quantification
Nozzle model
11015VS
Bulk material method
High pressure air
Number of nozzles
12
Feeding speed
50L/min
  Maximum flow rate
8.1L/min
Broadcasting
5~7m
Spray
6~8m
Product Description

Spraying

30L 4 Axis Quadcopter Farm AG Heavy Lift Drone Chemical Fertilizer Sprayers Long Range Agriculture Spraying Drone Citrus Sprayer for Farm Pesticide Crop Spray

Equipped with 30L oversized medicine box
·The operating efficiency is increased to 15 hectares/hour.
·Equipped with no manual pressure relief valve, automatic exhaust, equipped with pressure nozzle, liquid medicine does not drift, can support centrifugal nozzle, powder does not block.
·The full-range continuous level gauge shows the true liquid level.

30L 4 Axis Quadcopter Farm AG Heavy Lift Drone Chemical Fertilizer Sprayers Long Range Agriculture Spraying Drone Citrus Sprayer for Farm Pesticide Crop Spray
·120ha/day, 170 times more artificial
·Safer without contact
·Uniform spraying,Provincial medicine
·Disinfection in isolation area
·0.7ha/day ·Pesticide injury
·Re-spray, spray leakage
·Manual operation in isolation area is easy to be infected

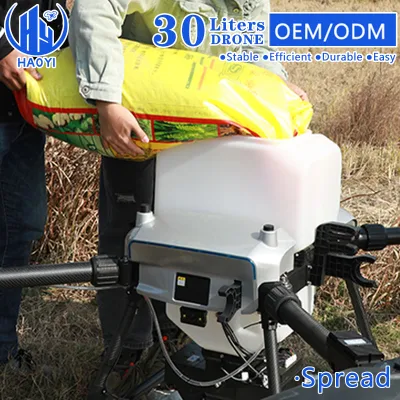

Spreading
30L 4 Axis Quadcopter Farm AG Heavy Lift Drone Chemical Fertilizer Sprayers Long Range Agriculture Spraying Drone Citrus Sprayer for Farm Pesticide Crop Spray

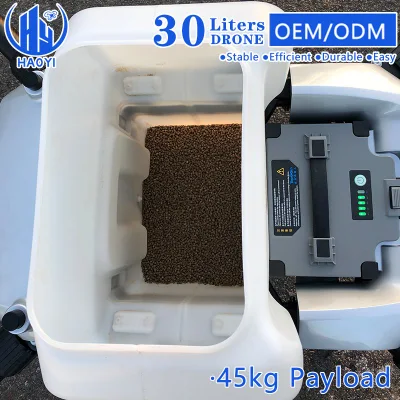

Equipped with 45L bucket, large load
·8m sowing width, the Air Spray is more uniform, does not hurt the seeds, does not hurt the machine.
·Full anti-corrosion, washable, no blockage.
·Measuring material weight, real time, anti-overweight.
Modular Design
30L 4 Axis Quadcopter Farm AG Heavy Lift Drone Chemical Fertilizer Sprayers Long Range Agriculture Spraying Drone Citrus Sprayer for Farm Pesticide Crop Spray ·Full aviation aluminum main frame, reduce weight while high strength, impact resistance.
·Core components closed treatment, avoid dust entry, resistant to liquid fertilizer corrosion.
30L 4 Axis Quadcopter Farm AG Heavy Lift Drone Chemical Fertilizer Sprayers Long Range Agriculture Spraying Drone Citrus Sprayer for Farm Pesticide Crop Spray
·High toughness, foldable, three-layer filter

30L 4 Axis Quadcopter Farm AG Heavy Lift Drone Chemical Fertilizer Sprayers Long Range Agriculture Spraying Drone Citrus Sprayer for Farm Pesticide Crop Spray
·Provides multiple modes of operation, including fully autonomous, AB points, and manual operations.
·A variety of enclosure methods:
Handheld mapping device
, airplane dot, Map dot.
·High-bright screen remote control, you can see clearly under the scorching sun, 6-8 hours long battery life.
·Fully automatic generation of sweeping routes to prevent leakage.

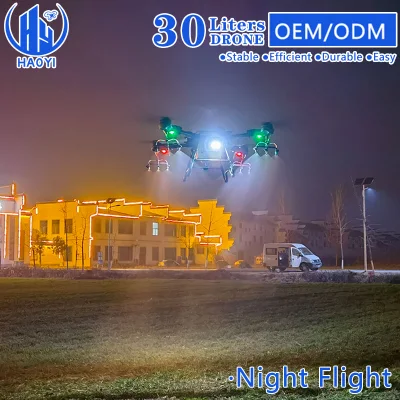

·Equipped with searchlights and help lights, it can also operate safely at night.
30L 4 Axis Quadcopter Farm AG Heavy Lift Drone Chemical Fertilizer Sprayers Long Range Agriculture Spraying Drone Citrus Sprayer for Farm Pesticide Crop Spray
·Night navigation: Front and rear 720P HIGH definition FPV, rear FPV can be flipped down to view the ground.
30L 4 Axis Quadcopter Farm AG Heavy Lift Drone Chemical Fertilizer Sprayers Long Range Agriculture Spraying Drone Citrus Sprayer for Farm Pesticide Crop Spray
Company Profile

Why Choose Us

1> Our service network is sufficient to guarantee the needs of our customers, a perfect and continuous solution can guarantee the needs of most customers.
2> One-stop sourcing provides you with a perfect supply chain of plant protection products, saving your purchasing cost and time cost with high efficiency and quality. You can also enjoy our long-term technical consulting services.
3> We support OEM/ODM service to meet your special needs.
4> Price, information, quality, program, after-sales, a full range of standardized support services for our agents to win more opportunities and competitiveness, making cooperation so easy and efficient.
5> Based on the absolute advantage of factory network, we have long-term cooperation with logistics, which can make the products delivered faster and more efficiently.
6> We will provide the best after-sales service for our customers. You are welcome to visit our factory and receive after-sales service training. No matter what, we will try our best to meet your requirements.
7> We can provide the certifications you need, or we can help you get through your official certifications.
30L 4 Axis Quadcopter Farm AG Heavy Lift Drone Chemical Fertilizer Sprayers Long Range Agriculture Spraying Drone Citrus Sprayer for Farm Pesticide Crop Spray

Haojing International Trade Co., Ltd.
Haojing International Trade Co., Ltd. is a well-known manufacturer in China for many years. Our factory was established in 2003.
Our products include UAV, UGV,UAV parts, etc. Our products have passed ISO certification and CE certification and patent certificates.
Our company iscommitted to providing global customers with high-quality mechanical and electrical products and complete sets of solutions, andproviding one-stop procurement services.
We conforms to market demand, takes technological innovation, customer first, and good quality as our concepts, based on ouractive actions and hard work, opened overseas markets successfully.
At present, we have an extensive sales network with customers all over the world, including the United States, Mexico, Russia,Portugal, Turkey, Pakistan, South Korea, Japan and Indonesia. Our products have covered distributors and agents in all European countries.
Our main manufacturing plant is located in Shanghai, China, with a stable and highly skilled labor force. We are willing to provide you with unique products that are not only attractive, but also practical and competitive.
We know for a company to develop an enviable reputation,it needs to do much efforts so that favor to the needs of differentclients. We are in trying its best effort to play a pivotal role in this field. Waiting for more cooperation partners to join us.
Packaging & Shipping

30L 4 Axis Quadcopter Farm AG Heavy Lift Drone Chemical Fertilizer Sprayers Long Range Agriculture Spraying Drone Citrus Sprayer for Farm Pesticide Crop Spray

FAQ

1. Who are we? We are an integrated factory and trading company, with our own factory production and 65 CNC machining centers. Our customers are all over the world, and we have expanded many categories according to their needs.
2. How can we guarantee quality? We have a special quality inspection department before we leave the factory, and of course it is very important that we will strictly control the quality of each production process throughout the whole production process, so our products can reach a 99.5% pass rate.
3. What can you buy from us? Professional drones, unmanned vehicles and other devices with high quality.
4. Why should you buy from us not from other suppliers? We have 20 years of production, R&D and sales experience, and we have a professional after sales team to support you.
5. What services can we provide? Accepted Delivery Terms: FOB,CIF,EXW,FCA,DDP; Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card;
