Product Description
![30L Agro Dron Remote-Controlled Drone for Spraying Pesticides and Spreading Fertilizers](http://img6.grofrom.com/www.auligdroneshop.com/226f3j00coNbqFYRknki/30L-Agro-Dron-Remote-Controlled-Drone-for-Spraying-Pesticides-and-Spreading-Fertilizers.webp)
Dimension | 2515*1650*788mm (Unfoldable) |
1040*1010*788mm (Foldable) | |
Effective spray (depending on the crop) | 6~8m |
Whole machine weight (including battery) | 40.6kg |
Maximum effective takeoff weight (near sea level) | 77.8kg |
Battery | 30000mAh, 51.8V |
Payload | 30L/45KG |
Hovering time | >20min (No load) |
>8min (Full load) | |
Maximum flight speed | 8m/s(GPS mode) |
Working height | 1.5~3m |
Positioning accuracy (good GNSS signal, RTK enabled) | Horizontal ± 10cm Vertical ± 10cm |

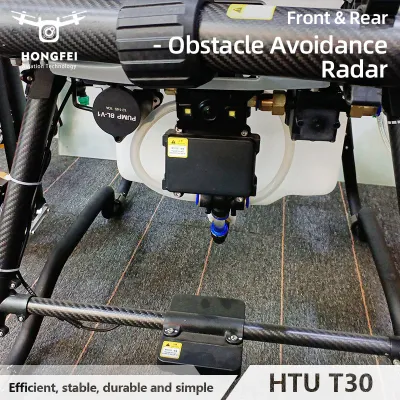

Avoidance perception range | 1~40m (Avoidance front and rear according to the flight direction) |
![30L Agro Dron Remote-Controlled Drone for Spraying Pesticides and Spreading Fertilizers](http://img6.grofrom.com/www.auligdroneshop.com/226f3j00ebnkqEYykFci/30L-Agro-Dron-Remote-Controlled-Drone-for-Spraying-Pesticides-and-Spreading-Fertilizers.webp)
1. All-aviation aluminum main frame, light weight, high strength, impact resistance.
2. Module-level IP67 protection, no fear of water, dust. Corrosion resistance.
3. It can be applied to multi-scene crop drug spraying, sowing and spreading fertilizer.
4. Easy to fold, can be installed in common agricultural vehicles, easy to transfer.

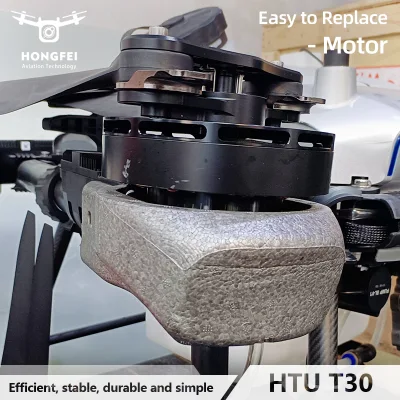

5. Modular design, most parts can be replaced by themselves.
Modular Design
![30L Agro Dron Remote-Controlled Drone for Spraying Pesticides and Spreading Fertilizers](http://img6.grofrom.com/www.auligdroneshop.com/226f3j00BoFcqpGnSObh/30L-Agro-Dron-Remote-Controlled-Drone-for-Spraying-Pesticides-and-Spreading-Fertilizers.webp)
·Core components closed treatment, avoid dust entry, resistant to liquid fertilizer corrosion.
![30L Agro Dron Remote-Controlled Drone for Spraying Pesticides and Spreading Fertilizers](http://img6.grofrom.com/www.auligdroneshop.com/226f3j00MkncoifqMybh/30L-Agro-Dron-Remote-Controlled-Drone-for-Spraying-Pesticides-and-Spreading-Fertilizers.webp)

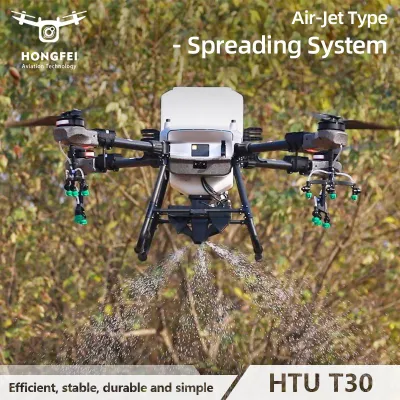

Spraying and Spreading System
![30L Agro Dron Remote-Controlled Drone for Spraying Pesticides and Spreading Fertilizers](http://img6.grofrom.com/www.auligdroneshop.com/226f3j00MqycovYrkObV/30L-Agro-Dron-Remote-Controlled-Drone-for-Spraying-Pesticides-and-Spreading-Fertilizers.webp)
·The operating efficiency is increased to 15 hectares/hour.
·Equipped with no manual pressure relief valve, automatic exhaust, equipped with pressure nozzle, liquid medicine does not drift, can support centrifugal nozzle, powder does not block.
·The full-range continuous level gauge shows the true liquid level.

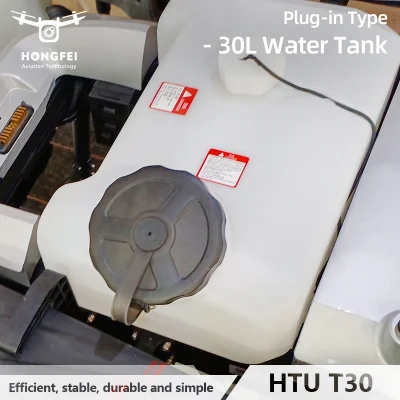

Medicine box capacity | 30L |
Nozzle type | High pressure Fan nozzle Support switching centrifugal nozzle |
Number of nozzles | 12 |
Maximum flow rate | 8.1L/min |
Spray width | 6~8m |
![30L Agro Dron Remote-Controlled Drone for Spraying Pesticides and Spreading Fertilizers](http://img6.grofrom.com/www.auligdroneshop.com/226f3j00vbyoknUAiFcW/30L-Agro-Dron-Remote-Controlled-Drone-for-Spraying-Pesticides-and-Spreading-Fertilizers.webp)

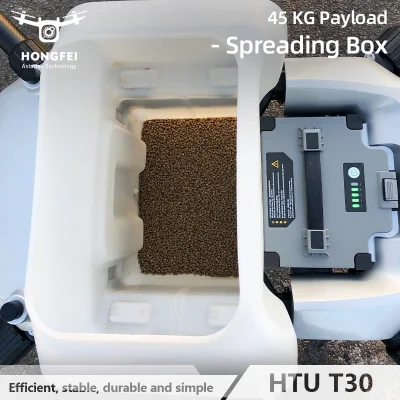

· Up to 7m sowing width, the Air Spray is more uniform, does not hurt the seeds, does not hurt the machine.
·Full anti-corrosion, washable, no blockage.
·Measuring material weight, real time, anti-overweight.
Material box capacity | 45L |
Feeding method | Roller quantification |
Bulk material method | High pressure air |
Feeding speed | 50L/min |
Sowing width | 5~7m |
Multiple Functions
![30L Agro Dron Remote-Controlled Drone for Spraying Pesticides and Spreading Fertilizers](http://img6.grofrom.com/www.auligdroneshop.com/226f3j00jbOcqafRAnkl/30L-Agro-Dron-Remote-Controlled-Drone-for-Spraying-Pesticides-and-Spreading-Fertilizers.webp)
·A variety of enclosure methods: RTK hand-held pointing, airplane dot, Map dot.
·High-bright screen remote control, you can see clearly under the scorching sun, 6-8 hours long battery life.
·Fully automatic generation of sweeping routes to prevent leakage.
·Equipped with searchlights and help lights, it can also operate safely at night.
![30L Agro Dron Remote-Controlled Drone for Spraying Pesticides and Spreading Fertilizers](http://img6.grofrom.com/www.auligdroneshop.com/226f3j00KbOcopRyynkV/30L-Agro-Dron-Remote-Controlled-Drone-for-Spraying-Pesticides-and-Spreading-Fertilizers.webp)
Intelligent Auxiliary Function
![30L Agro Dron Remote-Controlled Drone for Spraying Pesticides and Spreading Fertilizers](http://img6.grofrom.com/www.auligdroneshop.com/226f3j00jkOqoVYbSNcl/30L-Agro-Dron-Remote-Controlled-Drone-for-Spraying-Pesticides-and-Spreading-Fertilizers.webp)
·Five-wave beams imitate the ground, accurately follow the terrain.
·Front and rear 720P HD FPV, rear FPV can be turned down to observe the ground.
Intelligent Charging
![30L Agro Dron Remote-Controlled Drone for Spraying Pesticides and Spreading Fertilizers](http://img6.grofrom.com/www.auligdroneshop.com/226f3j00KbnokMfRkOci/30L-Agro-Dron-Remote-Controlled-Drone-for-Spraying-Pesticides-and-Spreading-Fertilizers.webp)
Standard Configuration
![30L Agro Dron Remote-Controlled Drone for Spraying Pesticides and Spreading Fertilizers](http://img6.grofrom.com/www.auligdroneshop.com/226f3j00ZbOckyGPwNoi/30L-Agro-Dron-Remote-Controlled-Drone-for-Spraying-Pesticides-and-Spreading-Fertilizers.webp)
![]() | ![]() | ![]() | ![]() |
Production, assembly | Testing | Packaging (customized boxing method available) | Loading and shipping |
Hongfei Aviation Technology Co., Ltd.
IsEstablished in 2003, with a factory in Anhui, China and a stable team of highly skilled employees, we are a professional UAV operation solution provider.
Our products have passed ISO certification and CE certification, and we have several patent certificates. We are committed to providing professional solutions for our partners in the drone industry and creating a complete supply chain of drone products.
Strength | Service | Quality | Certificates |
Years of operation, with rich manufacturing and sales experience. ·Support OEM/ODM ·Independent factory ·With professional R&D team ·Possess many patents ·One of the leading drone manufacturers in China | Quality service to meet your needs. ·Perfect pre-sales and after-sales service ·According to the application industry, we can match the best solution for you ·Focus on customer feedback, timely and effective solution to customer problems | Professional production system to ensure the quality of each product. ·Passed ISO9001 international quality system certification ·Controlling the details, to ensure that each detail of the product delivery | Received several certifications. ·20 invention patents ·15 utility model patents ·23 software copyrights ·1 appearance patent |
1.What is the best price for your product?
We will quote based on the quantity of your order, the higher the quantity the higher the discount.
2.What is the minimum order quantity?
Our minimum order quantity is 1 unit, but of course there is no limit to the number of units we can purchase.
3.How long is the delivery time of the products?
According to the production order dispatch situation, generally 7-20 days.
4.What is your payment method?
Wire transfer, 50% deposit before production, 50% balance before delivery.
5.What is your warranty time? What is the warranty?
General UAV frame and software warranty of 1 year, the warranty of wearing parts for 3 months.
