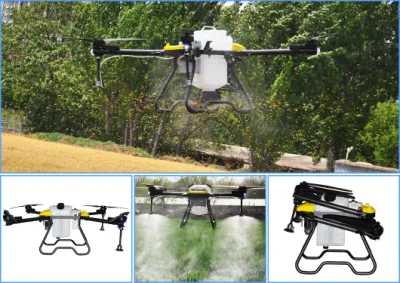

JT30L-404 New design quick pluggable smart batteries 30L large payload agricultural sprayer drone
Model: 30L AGRICULTURAL SPRAYER DRONE
The latest modern design, smart appearance. The most competitive model of drone sprayer.
Aviation aluminum alloy drone frame, durable and stable;

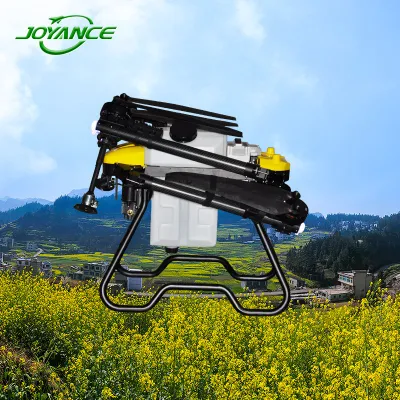

Foldable drone sprayer arms, easy to transport;
Quick pluggable battery drone ;
Can be equipped with an optional granular spreader, for scattering and seeding;
14S 22000mAh smart battery, intelligent management system inside;
High-power fast charge, charging can be completed in 15 minutes;
H12 remote controller with night vision FPV camera;
Multilingual language App for flight routes planning;
Standard obstacle avoidance function.
Terrain the following function
JT 30L-404 agricultural drone technical parameters sheet
| Model | JT30L-404 drone |
| Pesticide Tank | 30L |
| Net Weight | 20.8 kg |
| Take-off Weight | 59 kg |
| Max take-off weight | 68.3KG |
| Flying Time | 10~15min |
| Flying Radius | 0~1000m |
| Flying Height | 0~30m |
| Flying Speed | 0~12m/s |
| Work Temperature | -10~70°C |
| Work Humidity | 0~90% |
| Spray Speed | 0~8m/s |
| Spray Width/Nozzle No. | >8~10m / 2 centrifugal Nozzles |
| Spray Flow | 7L/min |
| Spray Efficiency | 12~15Ha/Hr |
| Flying Downward Airflow | 4~15m/s |
| Wind Resistance | 10m/s |
| Machine Size | W 2.9m x L 2.9 m x H0.78 m |
| W1.05m x L0.62 m x H 0.78m | |
| Power System | FOC X11 PLUS |
| Flight Controller | JIYI K++ V2 |
| Remote Controller | H12 RC with 5.5" screen app |
| Battery / Quantity | 14S 22000mAh / 1pc |
| Pump | Double brushless pump |
| Adapter + Charger | Dual-Channel Charger 3000W |
| Packing Case | Aluminum Case |
| Toolkit | Maintenance/Repair Tools |
| Terrain following radar | terrain following |
| Obstacles avoiding sensor | front and back sensors optional |
| FPV | Camera with night light |
| Spreader tank | scattering grass seeds, sowing seeds, feeding, fertilizer, deicing agent, etc |
| Features of model JT30L-404 drone | ||

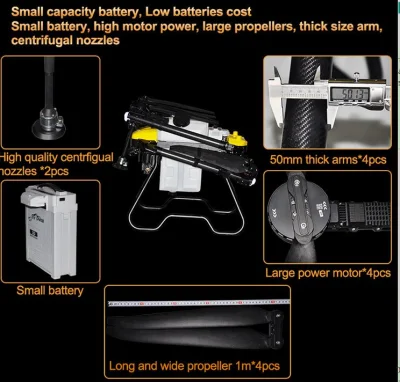

| Large power 4 pcs X11 plus motor, large propellers 43 inch | ||
| Small battery 14s 22000mah, low use cost, complete set price is low, battery cost low | ||
| Fashionable appearance, Novel design, and waterproof IP56. | ||
| The whole drone frame is made from aluminum alloy, which less weight but is the more durable and firm, long life span | ||
| Small drone size, easy to deliver and transport | ||
| Adopt a smart battery, with high energy density, support fast charge, and longer life. Built-in battery management system, easy to manage and maintain. | ||
| Fast-charging charger, fast charging speed, reducing the number and cost of battery purchase. | ||
| Stable downward pressure wind field, not roll up, best spraying effect larger spraying width, small drift, no spray leakage. | ||
| Centrifugal nozzles 2pcs, better-spraying atomization effect, suitable for fruit trees, droplet size 50-100 um. |
| Características del dron modelo JT30L-404 | ||
| Motor de gran potencia 4 piezas X11 plus, hélices grandes de 43 pulgadas | ||
| Batería pequeña 14s 22000mah, bajo costo de uso, el precio del conjunto completo es bajo, el costo de la batería es bajo | ||
| Apariencia de moda, diseño novedoso e impermeable IP56. | ||
| Marco de dron completo hecho de aleación de aluminio, menos peso pero más duradero y firme, larga vida útil | ||
| Tamaño de dron pequeño, fácil de entregar y transportar | ||
| Adopte una batería inteligente, alta densidad de energía, soporte de carga rápida, vida más larga. Sistema de gestión de batería integrado, fácil de gestionar y mantener. | ||
| Cargador de carga rápida, velocidad de carga rápida, reduciendo el número y el costo de la compra de la batería. | ||
| Boquillas centrífugas 2 uds, mejor efecto de atomización de pulverización |
Model JT30L-404 drone sprayer including :
Complete reply to fly drone sprayer,
Remote controller H12 with screen and app
Obstacles avoidance radar
1 pcs battery 14s 22000mah
1 pcs dual-way quick charger
Ultrasonic flow meter, more accurate
Camera
Aluminum packing case
Tool kit case
For continuous working with the drone sprayer, we advise buying an extra 3 pcs batteries and one extra charger.
The drone can install a spreader tank for spreading solid seeds and fertilizers, such as rice seeds, urea, etc.
Seeder spreader tank available
- agriculture drone sprayer,
- ag drone sprayer,
- agricultural spraying drone,
- agriculture drone for spraying,
- agriculture drone spraying,
- crop spraying drone,
- drone spraying agriculture,
- pesticide drone spraying
FAQ:
Q1. Are you a sprayer drone factory?
A1: Yes, we are a professional manufacturer of sprayer drones.
Our main products are agricultural sprayer drones and spreader drones. thermal fogger drones, biological control drones.
Q2. Is the UAV sprayer drone ready to fly?
A2: Yes. Before dispatch, JOYANCE assembles all the parts and set all the parameters. Every drone is 100% flight tested and has strict quality control.
Q3. What`s your MOQ for an agricultural drone?
A3: MOQ ≥1. More than 100 units of order is available. Besides, we are looking for dealers and agents all over the word. Welcome to contact us for more details.
Q4. What`s the delivery time of the sprayer drone?
A4: 7 days for one, please contact us for mass order.
Q5. What`s your payment term?
A5: 50% payment as deposit, balance before delivery.
