Basic Info.
Model NO.
Agras T40
Transport Package
Original
Specification
CE
Trademark
original
Origin
Hong Kong
HS Code
88062910
Production Capacity
51000
Product Description

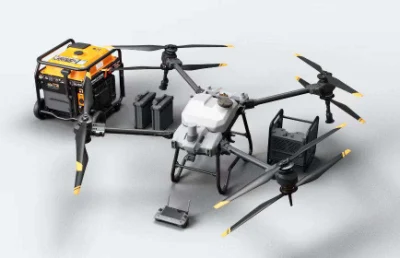

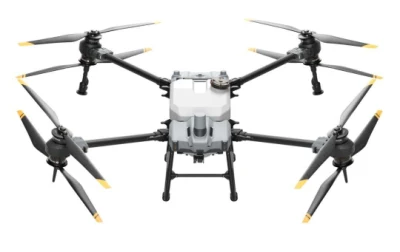

Global Version DJI Agras T40 sprayer Agricultural Drone Spraying agriculture drone T40 T30 Charging Station Massive payload increase thanks to the coaxial twin rotor
The AGRAS T40 features a coaxial twin rotor design that increases the payload capacity by 30% with a maximum payload of 50 kg . Its foldable design reduces the aircraft size by 70% for greater portability.
Spraying System
Dual Atomized Centrifugal Sprinkler
The dual atomized spray disc ensures even droplets and more efficient pesticide usage.
Magnetic Drive Impeller Pump
The new magnetic transmission design completely isolates the pesticide from the motor, making the aircraft corrosion-proof and
ultra-durable. Quick disassembly by hand for easy cleaning
T40 spreading system (50kg payload)
Real-time weighing
The aircraft is equipped with a weighing sensor that monitors the spread quantity and remaining payload
Fast disassembly and cleaning
The spreading device can be dismantled in 3 minutes and washed with water.
Omnidirectional Obstacle Sensing
The Active Phased Array Radar is incorporated with a binocular vision sensor system to provide 360-degree horizontal omnidirectional obstacle sensing, offering optimal security. The detection distance of up to 50 m allows for intelligent terrain following, smooth scaling and bypassing of multiple obstacles.
Mapping, spraying and spreading,
all in one
The AGRAS T40 combines mapping, spraying and spreading functions, while its UHD camera and adjustable gimbal enable easy capture
of your desired view. Farmland and orchard images can be captured in real time, and local maps can be generated using the remote
controller with the D-RTK 2 Mobile Station. The system detects land boundaries and obstacles automatically, for quicker planning of flight routes over farmland and hilly orchards..
Fully enhanced remote controller for smoother, faster mapping
The 8-core processor makes mapping of 6.67 hectares possible in 10 minutes. Minimizes wasted journeys with intelligent route planning, for greater efficiency. The large 7-inch high brightness screen offers a broader view with refined detail. A wide range of custom physical buttons provides flexible control.
Essential details
Sprayer Type:Pump
Usage:Agriculture
Applicable Industries:Farms
Showroom Location:None
Place of Origin:Guangdong, China
Brand Name:djl t40
Diameter:38 inch
Feature:high efficient
Condition:New
Warranty:1 Year
Key Selling Points:High efficiency, new and original
Marketing Type:New Product 2023
Machinery Test Report:Not Available
Video outgoing-inspection:Not Available
Warranty of core components:1 Year
Core Components:other
Weight:21.1 KG
Total Weight (Excluding battery):21.1 kg
Standard Takeoff Weight:42.6 kg
Max Takeoff Weight:47.5 kg (at sea level)
MOTOR Stator Size:100*15 mm
MOTOR Weight:666 g
Propulsion System KV:75 rpm/v
Max Thrust:13.5 kg/rotor
Battery Model:AB3-18000mAh-51.8V
Battery Weight:6.4 kg
IP Rating:IP54
Usage:Agriculture
Applicable Industries:Farms
Showroom Location:None
Place of Origin:Guangdong, China
Brand Name:djl t40
Diameter:38 inch
Feature:high efficient
Condition:New
Warranty:1 Year
Key Selling Points:High efficiency, new and original
Marketing Type:New Product 2023
Machinery Test Report:Not Available
Video outgoing-inspection:Not Available
Warranty of core components:1 Year
Core Components:other
Weight:21.1 KG
Total Weight (Excluding battery):21.1 kg
Standard Takeoff Weight:42.6 kg
Max Takeoff Weight:47.5 kg (at sea level)
MOTOR Stator Size:100*15 mm
MOTOR Weight:666 g
Propulsion System KV:75 rpm/v
Max Thrust:13.5 kg/rotor
Battery Model:AB3-18000mAh-51.8V
Battery Weight:6.4 kg
IP Rating:IP54
Packaging & delivery
Port
shenzhen guangzhou hongkong
Lead time:
shenzhen guangzhou hongkong
Lead time:
| Quantity(pieces) | 1 - 20 | 21 - 100 | >100 |
| Lead time (days) | 15 | 45 | To be negotiated |
