Basic Info.
Model NO.
KIP30G625
Kind
Autofocus Lens
Certification
ISO9001: 2000
Feature
Waterproof / Weatherproof, High Definition, Mini Size
Effective Distance
Could Be Very Far Distance
Sensor Size
1/2.8 Inch
Remote Control
With Remote Control
Resulotion
8mega Pixels
Light
Thermal Dual Light
Weight
950g
Af Time
Real Time Focusing, Fast Focusing Time < 1s
Pixels
2.13MP
Multi-Target Detection Number
More Than 20
Transport Package
20X25X30cm
Specification
145.2mmx138.3mmx182.1mm
Trademark
TOPOAVIONICS
Origin
China
HS Code
8525891900
Production Capacity
100000
Product Description
Dual light IP output 2.13MP 30X optical zoom with 8xdigital zoom+ 640 IR Tracking 25mm surveillance systems starlight night vision gimbal camera
KHP30G625 30x optical zoom with 8xdigital zoom + thermal imaging optical IP with starlight night vision AI tracking gimbal camera
Product Description
Specification
Packing & Delivery
Company Profile
Topotek avionics focuses on design and development of optical zoom camera and Gimbal. The products include 10x, 18x, 20x, 30x, and 36x auto-focus cameras and Gimbal. Now Topotek has Beijing R&D center,Hangzhou Operation Center and Shenzhen Products Center. Topotek device integrate various core technology and module, such as various optical zoom camera, thermal camera, Laser Range Finder, laser light, and 3axis gimbal, ground display&control station. As a core module integrated with Unmanned Aerial Vehicle(UAV), it enables UAV to obtain high-resolution images and capture far distance moving targets. For instance, 36x zoom camera is capable of seeing car plate number clearly in more than 500 meters away. Topotek invests enormous efforts on R&D of optical zoom camera of which zoom ranges from 10x to 36x. Our mature products have occupied almost 70% market shares since foundation of company in 2012. Advantages of our zoom camera include large optical zoom function, video record and storage at HD 1080P, HDMI output, compressing coding in real time, direct UAV signal control, and 3-axis stabilizing gimbal. Due to so, customers are enabled to assemble their UAV directly without concerning compatibility issues. Recently, we developed dual sensor that integrates optical zoom camera and thermal imaging system allows Piture-in-Picture(PIP) display, temperature measurement, daylight camera zooming, and moving target tracking. Our AI image processing algorithms are designed and developed directly in Android system without mounting thirdparty modules such as FPGA or DSP unit, which yields customers more flexible choices of image processing algorithms on target identifying, classifying, and tracking, etc. Therefore, the customers are encouraged to apply our product to fields of electrical power system, fire control, and security. Topotek is committed to philosophy of "Quality&Service" since foundation of company. We highly emphasize on feedback of our customers and technical support on solving technical problems. We hope to develop together with our partners. We believe that concentration makes us professional. We hope we can lead the innovative development of high-resolution optical zoom camera.
FAQ
KHP30G625 30x optical zoom with 8xdigital zoom + thermal imaging optical IP with starlight night vision AI tracking gimbal camera
Product Description

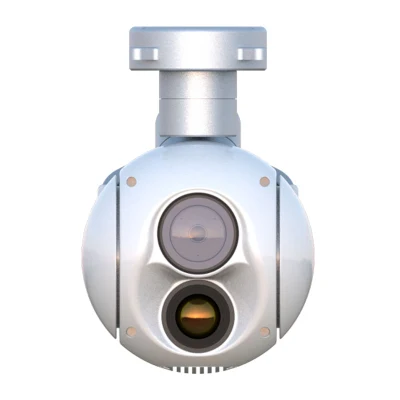

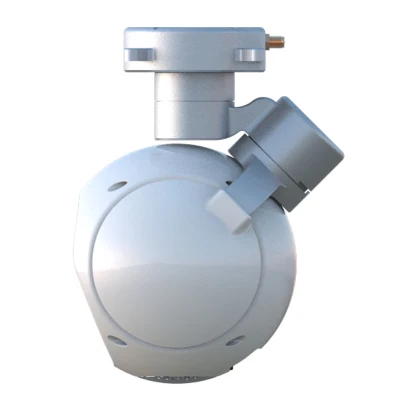

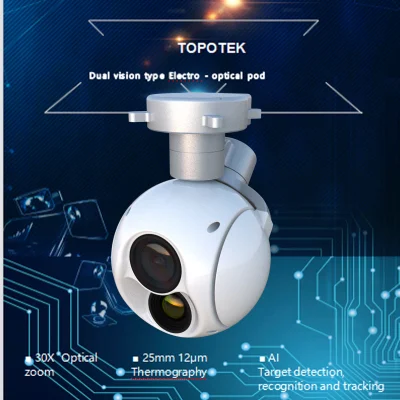

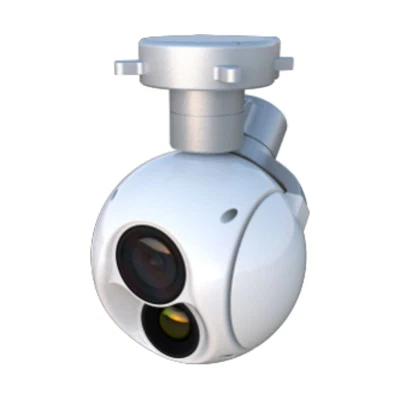

KIP30G625 is a zoom dual-optical integrated system that integrates 30xoptical zoom starlight night vision camera with high-precision real-time tracking of fixed and moving targets on the ground can be realized according to the acquired video acquisition picture. It support the thermal imager and high-precision professional three-axis stabilization gimbal. Which adopts network IP output and IP control, and gimbal adopts high-precision encoder FOC control scheme. It has the characteristics of high stability, small size, light weight and low power consumption. The visible camera uses a wide dynamic 1/2.8 inch Exmor comos SENSOR with an effective pixel of 2.13 mega pixels. The domestic 640x512 resolution vanadium oxide detector is used for thermal imaging, with baffle plate design. The system supports network RTSP picture-in-picture code stream output, supports a variety of picture-in-picture mode, a variety of pseudo-color switching. The serial port and the network can synchronously control the camera and the cradle head, and support local TF 32G storage. Full metal case. Aviation aluminum alloy .The focal lengths of the thermal imaging lenses are 25mm respectively.
| Functional characteristics |
- 30x Optical zoom+640 thermal infrared
- Multiple pseudo color switching
- Multiple picture in picture modes
- Starlight night vision
- Ai tracking function and Anti-target deformation
- 3-Axis stabilized gimbal
- IP port, SDI output
- SMB protocol network access memory CARDS
- Starlight night vision
| Whole structure |
Specification | KIP30G625 | |||
| Voltage input | 12V | ||
| Power Supply | 20W | ||
| Working Status | Roll Angle | -120° | |
| Pitch Angle | -30° | ||
| Yaw Angle | 360°rotation | ||
| Angle jitter in Pitch and Roll | ±0.03° | ||
| Horizontal angle jitter | ±0.03° | ||
| One click return function | One click automatic quick return to the initial position | ||
| Control signal | S.BUS,TTL UART(RS232 optional) | ||
| Video interface | Network/ SDI | ||
| Control model | Follow yaw;Lock yaw;90° overlook | ||
| White light gimbal camera parameter | Sensor | 1/2.8" Exmor CMOS 2.13 mega pixel wide dynamic CMOS SENSOR | |
| Focal length | 4.3~129.0mm | ||
| Optical Zoom factor | 30x Optical zoom optical zoom len, f=4.5±10%~135±10%mm | ||
| AF time | Real time focusing, fast focusing time < 1S | ||
| Shutter speed | 1/1S~1/10000S, 22 steps | ||
| FOV | 63.7° ~ 2.3° | ||
| Video output format | 1080P/30FPS | ||
| Pixels | 2.13 MP | ||
| Image storage | JPEG | ||
| Video storage | AVI(1080P) | ||
| Min illumination | 0.001Lux | ||
| Digital Zoom | 1.0~8.0X | ||
| IP video output | Network HD RTSP output 1080P, video streaming local TF storage | ||
| Support Mode | 1080P 30fps | ||
| Tracker | Automatic detection of target types | Vehicles/ ships personnel, etc | |
| Multi-target detection number | ≥20 | ||
| Minimum target size | 10× 10 pixel | ||
| Detection rate | ≥90% | ||
| Recognition rate | ≥85% | ||
| Target capture time | ≤5 frames | ||
| FAR | ≤10% | ||
| Tracking accuracy | ≤ 1pixel | ||
| Anti occlusion time | 3s | ||
| Maximum target tracking field of view | ≤ 1/3 field of view | ||
| Anti target deformation | Support | ||
| Target switching tracking | Support | ||
| Thermal imagery | Resolution | 640*512 pixel | |
| Pix Spacing | 12μm | ||
| Frame rate | 50Hz | ||
| Photo format | JPEG | ||
| Video format | AVI | ||
| Polarity | White/Black Thermal | ||
| Colorize | Lava/Rainbow | ||
| Measuring range | -20ºC ~ 150ºC(default) /0ºC ~ +550ºC(switchable) | ||
| Type | Uncooled vanadium oxide | ||
| Wavelength coverage | 8~14μm | ||
| Thermal sensitivity (NETD) | ≤[email protected]@25ºC | ||
| Video output | Network IP output | ||
| Field angle | 25mm lens, FOV: 17°X 14° | ||
| Digital Zoom | 1.0~8.0X | ||
| Measurement function (optional) | Center point, maximum temp and minimum temp display; Support all area temp measurement | ||
| Device Size | 145.2(L)× 138.3(W)× 182.1(H) mm | ||
| Working Condition | -10ºC ~ 55ºC | ||
| Stored Environment | -20ºC ~ 60ºC | ||

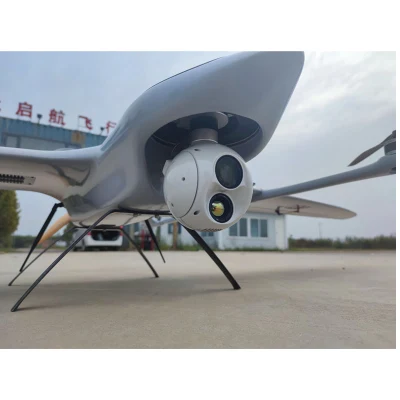

| Main application | UAV aerial photography | ||
| Weight | 950g | ||
