Basic Info.
Model NO.
XK-DR410A
Specification
120*120*70cm, 15kg/pcs
Trademark
Xingkaitech
Origin
China
Production Capacity
50000PCS/Year
Product Description
Plant protection UAV, as the name implies, is a UAV used for agricultural and forestry plant protection operations.
This type of UAV through the ground remote control or GPS flight control to achieve spraying operations, can spray agents, seeds, powder, etc.Product Parameters
Carrier platform | |
| Dimensions | 2320mm*2320mm*630mm- (product unfolded size) 1050mm*1050mm*630mm- (product folded size) |
Total weight of the machine (no load and without battery) | 13 kg |
Symmetrical motor wheelbase | 1550 mm |
Arm tube material | carbon fiber |
Protection class | IP56 |
Flight parameters | |
Maximum effective take-off weight (near sea level) | 36 kg |
Standard take-off weight (including battery and full load) | 34 kg |
Hovering accuracy (good GNSS signal) | horizontal ±0.5 m, vertical ±0.3 m |
Power battery | 12S 16000mAh smart battery |
Recommended working environment temperature | -10~40 ºC |
Maximum operating flight speed | 7 m/s |
Maximum flight speed (good GNSS signal) | 10 m/s |
| The maximum take-off altitude | 4000m (as the altitude increases, the load needs to be reduced) |
Hover time | |
No-load hover time | 23 minutes (take-off weight 18 kg) |
| Full-load hover time | 10 minutes (take-off weight 34 kg) * Measured near sea level, wind speed < 3 m/s, for reference only> |
Spraying System | |
Rated volume | 16L |
Remaining detection | Flow sensor |
Number of nozzles | 8 |
| Spray width | 4-6m (depending on operating height, wind speed, and spray volume per acre) |
| Atomization particle size | 60~90μm (related to the actual working environment, spray flow, etc.) |
Number of brush-less water pumps | 1 |
Maximum working flow | 5L/min |
Spreading System | |
Weight | 1.8kg |
Tank capacity | 16L |
Maximum load inside the sowing box | 16kg |
Applicable material seed diameter | 0.5-5mm |
Maximum tank gate opening area | 8.6cm² |
Radar System ground radar | |
Modulation method | FMCW |
Frequency | 2.4GHz |
Protection class | IP65 |
Height range setting | 1~10m |
Ranging accuracy | 0.02m |
Obstacle avoidance radar (optional) | |
Perception range | 2~12m |
| Conditions of use | The relative altitude of the aircraft is higher than 1.5m and the speed is less than 6m/s |
Safe distance to ground | 4m |
| Obstacle avoidance direction | achieve front and rear obstacle avoidance according to the flight direction |
Power System Motor | |
Model | JTI8 |
Stator size | 81*20mm |
KV value | 100KV |
Maximum pulling force (single motor) | 15.3 kg |
Rated power (single motor) | 1200W |
Electronic Speed Control | |
Maximum continuous operating current | 80 A |
Maximum operating voltage | 52.2 V (12S Li-polymer battery) |
Foldable propeller | |
Model | 3090 |
Remote control | |
Model | T12 |
Operating frequency | 2.400-2.4833 GHz |
Signal effective distance (no interference, no blocking) | 1-3km |
Battery voltage | 3.7V (rechargeable lithium battery) Battery |
capacity | 4000 mAh |
Weight | 610g |
Dimensions | 225x123x35mm |
Supported language | Simplified Chinese/English |
FPV camera | |
Viewing Angle (FOV) | 120° |
Resolution | 720P |
Flashlight brightness | 1000lux |
Flashlight power | 8W |
Electricity System Smart battery | |
Model | 12S 16000mAh |
Battery Type | 12S Lithium Polymer |
Rated capacity | 16 A |
Charging ambient temperature | 10~45 ºC |
Charger | |
Model | H26+ |
Output power | 2400 W |
Input voltage | AC180~240 V, 50/60 Hz |
Output voltage and current | DC direct current, 50~60 V/ 30 A (maximum) |
Working environment temperature | -10~40 ºC |
Features
1. Adopt high efficiency brushless motor as power. The fuselage has small vibration, can be equipped with precision instruments, spraying pesticides and so on more accurately;
2. The terrain requirements are low. The operation is not limited by altitude, and it is in Tibet, Xinjiang and other high-altitude areas;
3. Short take-off adjustment, high efficiency, high attendance;
4. Environmental protection, no waste gas, in line with the national energy conservation and environmental protection and green organic agriculture development requirements;
5. Easy maintenance, low cost of use and maintenance;
6. The overall size is small, light weight, easy to carry;

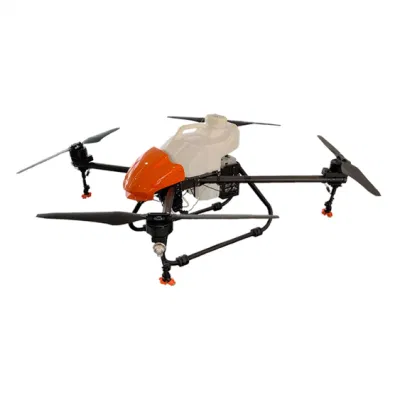

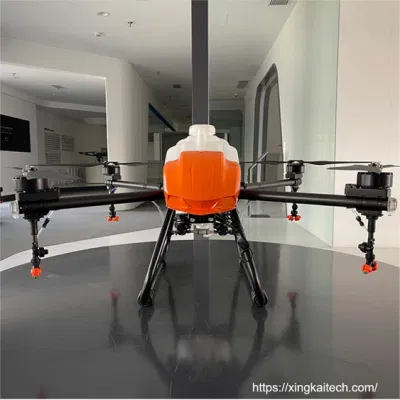

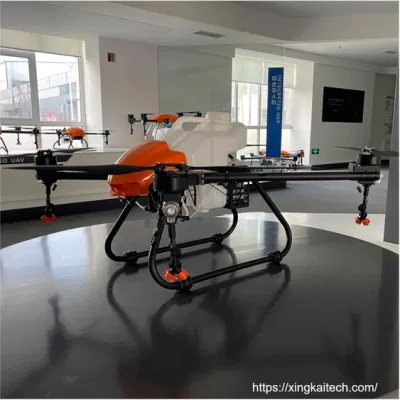

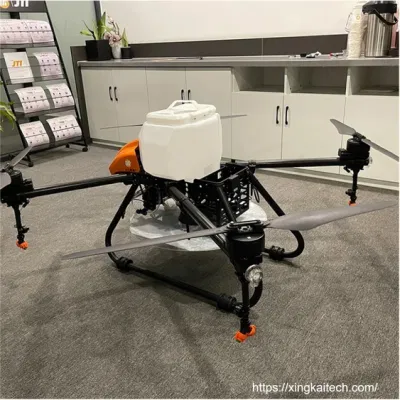

Pictures
Company Information
Shenzhen Xingkai Technology Co., Ltd. is a Global leading high-tech enterprise engaged in R&D development and production of RF wireless communication systems for the broadcast, public surveillance, and defense industries.
Our R&D team has over 20 years of professional technical experience in design, develop, build, support and delivery end-to-end communications & advanced networkings.
Our company attaches great importance to the construction of the R&D team, who with extensive industry experience and accumulation in the fields of RF communication, Baseband unit, and images processing.
Our products range includes mimo mesh network, tactical radio, software detined radio, tactical data link, ip encoder, there has also been continued demand in the areas of C2/C3/C4ISR/C5ISR mission systems, border and perimeter security systems, unmanned aircraft systems, unmanned surtace vessels, remote controlled systems, and homeland security solutions, law enforcement and also covering film, broadcast and live stream activities that who can't risk communication failure.
Our R&D team has over 20 years of professional technical experience in design, develop, build, support and delivery end-to-end communications & advanced networkings.
Our company attaches great importance to the construction of the R&D team, who with extensive industry experience and accumulation in the fields of RF communication, Baseband unit, and images processing.
Our products range includes mimo mesh network, tactical radio, software detined radio, tactical data link, ip encoder, there has also been continued demand in the areas of C2/C3/C4ISR/C5ISR mission systems, border and perimeter security systems, unmanned aircraft systems, unmanned surtace vessels, remote controlled systems, and homeland security solutions, law enforcement and also covering film, broadcast and live stream activities that who can't risk communication failure.
Exhibitions
Testing Instruments
Certifications
Cooperation Partners
Packaing & Delivery
Packing: Packed in a professional shipping boxPort: Yantian, Shekou or Hong Kong
