Basic Info.
Model NO.
S450
Power Supply
Fuel-Electric Hybrid
Technics
All-Steel Body, Electrophoretic Coating
Material
Stainless Steel for Body; LLDPE for Pesticide Tank
Type
Air Blast Sprayer
Operation
Autonomous/ APP/ Remote Control Handle
Configuration
Machine and Sparing Parts Package
Transport Package
Wooden Box
Specification
190cm*120cm*115cm; 560kg
Trademark
LJ Tech
Origin
China
Production Capacity
150sets/Month
Product Description
Product Parameter
· Navigation enables work in darkness.
Customer Photos
| Power Type | Fuel-electric Hybrid |
| Power Specifications | 15kw petrol engine + 5*45AH large-capacity battery |
| Wheel Type | Wheel Type |
| Overall Dimensions | 190cm(L)*120cm(W)*115cm(H) |
| Ground Clearance | 17cm |
| Pesticide Tank Volume | 450L(super large) |
| Spraying Range | 15m wide, 5m high |
| Atomization Effect | 150-400μm (droplet size too small, will be blown by wind; too large, will drip down) |
| Climbing Ability | 30° MAX climbing angle, 15° MAX inclination |
| Movement Precision | RTK accurate positioning, self-driving precision ±5cm deviation |
| Movement Speed | 3km/h MAX |
| Maximun Load | 1000kg |
| Operation Time | 1 tank of petrol≥8h; 1 tank of pesticide≥26min |
| Operation Efficiency | 5.93 acre/h |
| Operation Method | Remote Control/ autonomous mode |

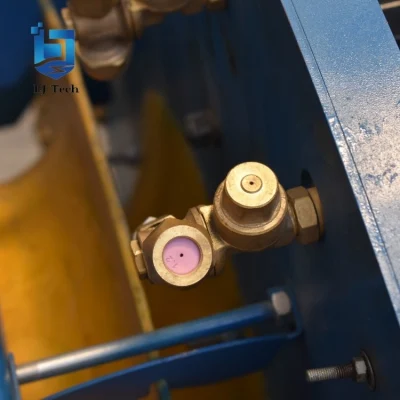

| Nozzle | 12 adjustable(can adjust 30°) double heads(1mm diameter and 1.2mm diameter) nozzles |
| Safety | Electronic fence, ultrasonica radar, automatic stop before barriers |
| Intelligence | Real-time positioning, low pesticide liquid level alarm |

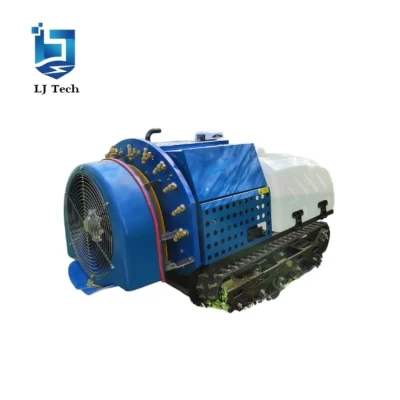

LJ Tech Robot Sprayer, more professional in orchard spraying!
Professional Spraying Effect
· Proven technology. Patented spray system. Plant protection dedicated blower. Generates even and appropriate fog droplets.
· Proven technology. Patented spray system. Plant protection dedicated blower. Generates even and appropriate fog droplets.
· Spray from the bottom, can penetrate every leaf and both leaf sides.
Save labor to a greater extent!
· Unmanned efficient operation, no need for large quantity of workers.
· Unmanned efficient operation, no need for large quantity of workers.
· Easy operation, no need for skillful driving.
· Large capacity, no need for frequent refilling pesticide and power.
Wider Application
· Crawler chassis.
· Crawler chassis.
Can shuttle in narrow corner.
Climb uneven grounds.
No fear of soil in rainy days.
Climb uneven grounds.
No fear of soil in rainy days.
· Dwarf and narrow body.
Can shuttle under low trees.
· Navigation enables work in darkness.
