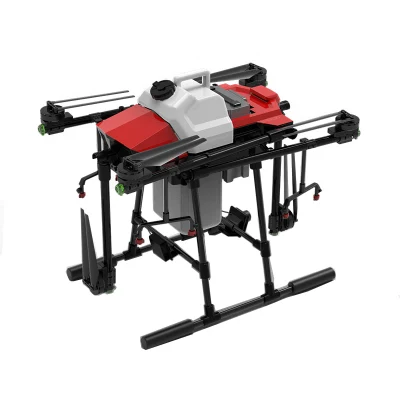

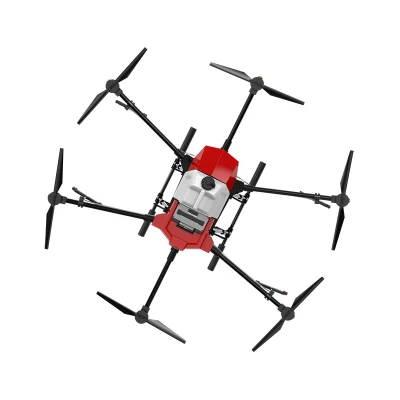

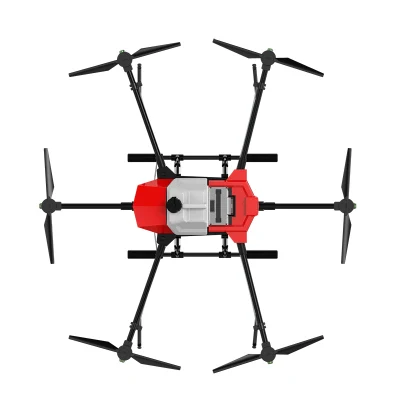

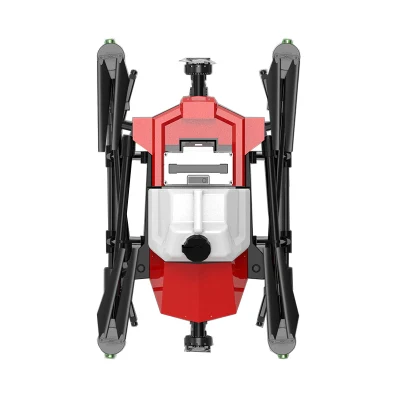

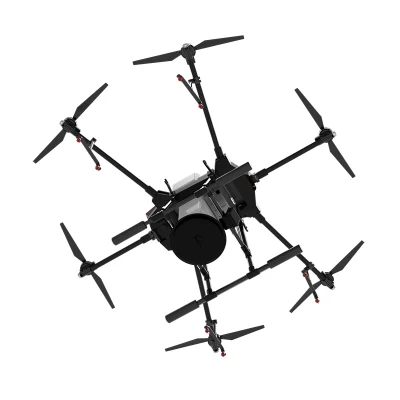

Brouav Profession Agricultural Pesticide Spray Equipment Drone with GPS

Brouav Profession Agricultural Pesticide Spray Equipment Drone with GPS - Factory direct supplier for high-quality agricultural drones with precision GPS technology.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
U30L-6
Power Supply
Electric
Technics
Assembly
Material
Aviation Carbon Fiber and Aviation Aluminum
Type
Sprayer Drone
Sprayer Type
Pump
Usage
Agriculture
Applicable Industry
Farms,Home Use,Epidemic Prevention
Feature
Anti-Fall
Production Material
Aviation Carbon Fiber and Aviation Aluminum
Production Folding Size
660mm*600mm*1020mm
Max Pesticide Load
30kg
Aircraft Medicine Box Capacity
30L
Flight Radius
Less Than 5000m
Max Takeoff Weight
66.5kg
Aircraft Weight
24kg Excluding Battery
Flight Attitude
Less Than 30m
Flight Duration
6-20 Minutes
Condition
New
Warranty Time
12 Months
Transport Package
Professional Package Box
Specification
1 CBM
Trademark
BROUAV
Origin
China
HS Code
8802200090
Production Capacity
10000 Unit

Product Description


Night navigation function high quality agriculture drone UAV
- OEM  & ODM Service -
Product Description

The U30L-6 integrates a number of cutting-edge Brouav technologies, including a Radar Sensing System that provides additional reliability during flight. The spraying system and flow sensor ensure accurate operations. When used with  the Intelligent Operation Planning System and the UNID Agriculture Management Platform,a user can plan operations, manage flights in real-time, and closely monitor aircraft operating status. The U30L-6 is a high performance aircraft capable of offering comprehensive solutions for agricultural care.

Product Specifications
 Model U30L-6
 Product material  Aviation carbon fiber + aviation aluminum
 Product expansion size  2692mm*2619mm*885mm
 Product folding size  660mm*600mm*1020mm
 Packaging size  1192mm*623mm*885mm
 Maximum takeoff weight  66.5KG
 Aircraft weight  24KG Excluding Battery
 Pesticide Barrel  30 L
 Flight altitude  ≤30 meters
Fly time(unloaded)  6~20 minutes
Fly time(loaded)  6 minutes when fully loaded
 Flight speed  1-10 m / sec
 Structure Life Span  ≥10 years
 Spray width  6-12 meters
 Hovering in the air  Hovering in any direction
 Spray flow  8-10L/min
 Spray system  Imported high pressure anti-floating atomizing nozzle
 Atomization point size  60~500μm
 Fly Control  Industrial Version GPS and Controller
Spary efficiency  ≥18 hectares/day
Safe takeoff and landing wind speed  ≤5
Motor speed  5000rpm
Power system 60.9V power polymer computer battery
Charer AC Input 100-240V
Lithium-polymer battery 28000mAh*1

Features

1. The fuselage adopts a closed design, which can prevent pesticides from entering the flight control system and provide safety guarantee for long-term operation;
2. The plant protection machine has built-in GPS and compass module, with fixed-height and fixed-point flight function, which can well maintain the spray height and spray route accuracy of the operation;
3. The height limit and flight speed limit of spraying operation can be set. The high-pressure spraying system has good atomization effect. Under the wind pressure of the aircraft, the drug mist has the characteristics of strong penetration. Leaf face.
4. Modular design of functional components, easy maintenance and upgrade.
5. Using intelligent plug-in battery
6. Use quick-plug medicine barrel
7. High-pressure brushless water pump is adopted, and the ESC is fully waterproof.
8. Wear the case, optimize the whole machine, and hide the medicine circuit.
9. 7075 aviation aluminum (high grade) is used for the folding part.
10. Alternating spraying function, the spray head can be switched independently.
11. The arm can be quickly disassembled.
Don't puncture the battery. If the battery pack is drummed, there is a safety hazard. Especially when charging, the drum pack should be stopped immediately and the battery should be moved to a safe place.
