Basic Info.
Model NO.
K3A Pro
Feature
Terrain Follow
Transport Package
Carton
Specification
90*40*20mm
Trademark
JIYI
Origin
China
HS Code
9032900001
Production Capacity
1000 Per Month
Product Description

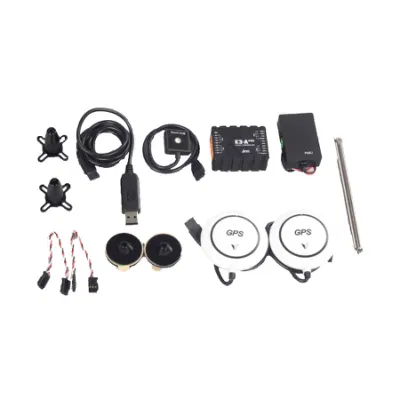

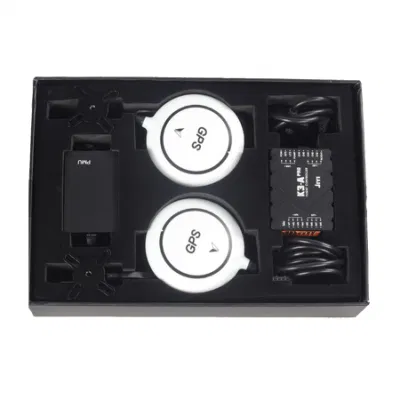

JIYI K3A Pro
Specification
| Supported Multi | Quadrotor(+ type, X type) |
| Six Rotor(+type, X type, IY type, YI type Coaxial double paddle ) | |
| Eight Rotors (+types, X types, V types) | |
| Supported ESC Type | Below 490Hz PWM ESC |
| Maximum Output Channel | 8 Channels |
| Recommend remote controller | with SBUS receiver |
| Supported receiver types | PPM, S-BUS receiver |
| Supported accessories | Radar, RTK, Data link, Flow Sensor Module |
| Working Voltage | 2-12S |
| Power Consumption | Less than 2W |
| Working temperature | 0-60° |
| Storage temperature | -40-60° |
| Seismic pressure | <1G |
| Hover accuracy | Horizon: ±2M |
| Vertical: ±0.8M | |
| Maximum tilt angle | 30 ° |
| Maximum yaw speed | 150°/s |
| Maximum vertical speed | 6 m/s |
| Wind resistance | Continuous wind: level 3 |
| Gust: Level 4 | |
| Flight mode and function | Attitude - stabilization mode, Attitude - fixed height mode, GPS - speed mode, GPS - angle mode, AB point mode, automatic return mode, out of control return mode, low voltage protection, Breakpoint continuous spray function, one button Traverse function, Water pump control function, Terrain following function, Emergency stop function, GPS speed switching function, support for App ground station, support remote control tuning setting by data link. |
Hardware Specification
| Weight | Flight controller:56g |
| GPS:45g | |
| LED module:13g | |
| Power module:39g | |
| Dimension | Flight controller:53.5mm×40.0mm×21.0mm |
| GPS:63.0mm(diameter)*15.0mm | |
| Led module:24mm | |
| Power module: 53.5mm×34.5mm×14.5mm |
Why you should choose TTF
We focus on drones
TTF Technology is a high-tech enterprise and professional Aero-Model manufacturer that unifies product design, research development, production, marketing and customer service. Our main products are UAV, including professional drones and consumer drones, as well as DIY components for drones. We has more than 20 years' experience on mechanical processing.
TTF Technology is a high-tech enterprise and professional Aero-Model manufacturer that unifies product design, research development, production, marketing and customer service. Our main products are UAV, including professional drones and consumer drones, as well as DIY components for drones. We has more than 20 years' experience on mechanical processing.
We have our own factory
We have a whole machining industry chain. All our products, from the materials processing to completed products, were manufacture red by ourselves. Thus, the quality and the consistency can be well controlled and always be the top of the industry. Besides the standard edition, we also supply customer-exclusive edition, which has its own SN for each product (Support all your requests).
We have a whole machining industry chain. All our products, from the materials processing to completed products, were manufacture red by ourselves. Thus, the quality and the consistency can be well controlled and always be the top of the industry. Besides the standard edition, we also supply customer-exclusive edition, which has its own SN for each product (Support all your requests).
We have rich overseas sales experience
Established in 2015, our company has been dealing with overseas marketing from the very beginning. Our products are sold into many countries. We are familiar with the customs, laws and agriculture situations of each country. And besides, we have many well-cooperated shipping agencies, who can arrange delivery to all over the world, without any issues.
Established in 2015, our company has been dealing with overseas marketing from the very beginning. Our products are sold into many countries. We are familiar with the customs, laws and agriculture situations of each country. And besides, we have many well-cooperated shipping agencies, who can arrange delivery to all over the world, without any issues.
