Agricultural Drones Factory Heavy Lift Drone Vtol Drone Agri Spray Drones Remote Control Drones Drone Agriculture Sprayer

Introducing our advanced Agricultural Drones Factory! Our Heavy Lift Drone, VTOL Drone, and Agri Spray Drones are perfect for efficient and remote-controlled precision agriculture spraying. revolutionizing farming.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Company Profile
  • Certifications
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Model NO.
XK-DR612A
Specification
130*70*100cm, 25kg/pcs
Trademark
Xingkaitech
Origin
China
Production Capacity
50000PCS/Year

Product Description

Product Description



Basic Parameters Product Material Aviation carbon fiber + aviation aluminum
Unfolded Size 2692mm*2619mm*885mm (including paddle)
Folded Size 1192mm*623mm*885mm
Total Weight 24kg (not including battery)
Maximum Takeoff Weight 66.5kg
Water Tank Capacity 30L
Flight Parameters
Max. Flight Altitude
5000m

Max. Wind Speed

8m/s

Hovering Time

6-20min

Full Load Flight Time

13-18min

Flight Speed

1-20m/s

Maximum Operating Speed

8m/s
Spraying Parameters Water Pump Type Double brushless DC water pump
Spraying Speed 8-10L/min
Nozzle Type Imported high-pressure atomization nozzle
Spraying Efficiency 15ha/h
Spraying Width 6-12m
Atomized Droplet Size 60-90μm
Battery
Model

14S lithium polymer battery

Capacity

28000mAh

Voltage

60.9V(full charge)

Battery Life

600 cycles
Charger Type Dual-channel high-voltage intelligent charger

Charging Time

15min (from 30% to 95%)

Features
1 High precision Gps system
2 Self planned routes
3 Night navigation function
4 Airframe stability and reliability, strong anti-interference
5 Brushless water pump motor, super long life
6 Aircraft automatic fixed point
7 Automatic return
8 Aircraft automatic obstacle avoidance
9 Equipped fertilizer spreader for sowing and raising fertilizer
10 Integrated smart remote control
11 The plane returned out of control
12 Aircraft low voltage return
13 Aircraft AB point memory operation
14 Aircraft self-planning operation
15 Aircraft breakpoint memory
16 Aircraft breakpoints continue to spray
17 High resolution FPV camera
18 Intelligent lithium battery with self heat dissipation
19 Alternate spray function, the nozzle can be switched separately
20 Ground station, video transmission, anti-fall performance

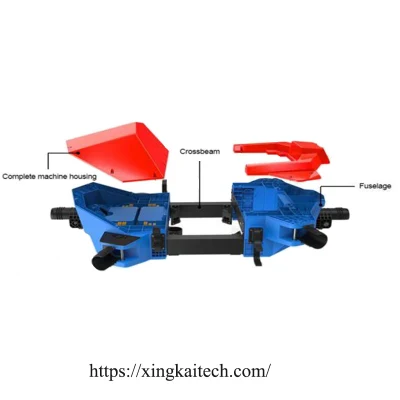

Integral Frame
One-piece body frame, streamlined structure and high strength, with good durability and reliability

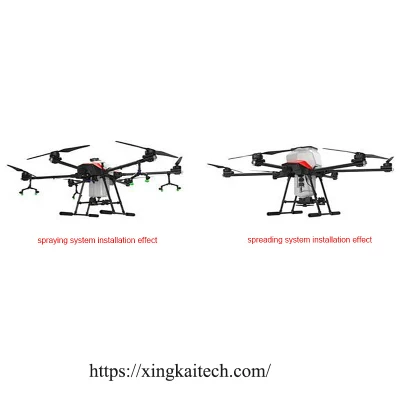

One Machine for Multiple Uses (Spray & Spread)

Quickly changeable spreading system and spraying system to meet the operational needs of two different scenarios

Spreading System
·Multi-seal Waterproof:  The spreader adopts multiple waterproof processes, the whole system reaches IP67 waterproof level and can be washed directly.
·Tool-free Quick Disassembly:  Separated quick disassembly design, using three hand screws for quick disassembly, more convenient maintenance and replacement.
·360° High-flow Spreading: Adopting 360° sowing, the maximum outlet area is increased to 43cm², improving the sowing efficiency.
·Multi-type Granule Spreading: Granule spreading system can support different types of grain, fertilizer, bait, etc. Solid granule spreading, suitable for sowing, fertilizing, baiting and other spreading operations.
·Optional Weighing Module: With the optional weighing module, the weight of the remaining material can be displayed in real time, and the flow calibration function of different particles can be realized.

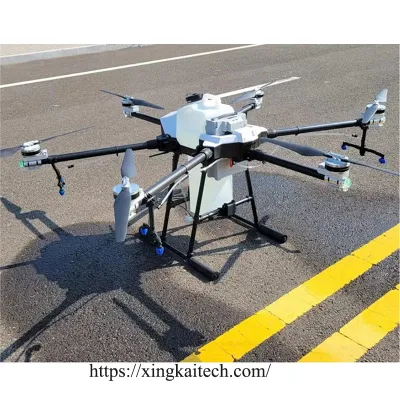

Detailed Photos

Pictures
Agricultural Drones Factory Heavy Lift Drone Vtol Drone Agri Spray Drones Remote Control Drones Drone Agriculture SprayerAgricultural Drones Factory Heavy Lift Drone Vtol Drone Agri Spray Drones Remote Control Drones Drone Agriculture SprayerAgricultural Drones Factory Heavy Lift Drone Vtol Drone Agri Spray Drones Remote Control Drones Drone Agriculture SprayerAgricultural Drones Factory Heavy Lift Drone Vtol Drone Agri Spray Drones Remote Control Drones Drone Agriculture SprayerAgricultural Drones Factory Heavy Lift Drone Vtol Drone Agri Spray Drones Remote Control Drones Drone Agriculture Sprayer

Company Profile

Company Information

Shenzhen Xingkai Technology Co., Ltd. is a Global leading high-tech enterprise engaged in R&D development and production of RF wireless communication systems for the broadcast, public surveillance, and defense industries.

Our R&D team has over 20 years of professional technical experience in design, develop, build, support and delivery end-to-end communications & advanced networkings.


Our company attaches great importance to the construction of the R&D team, who with extensive industry experience and accumulation in the fields of RF communication, Baseband unit, and images processing.

Our products range includes mimo mesh network, tactical radio, software detined radio, tactical data link, ip encoder, there has also been continued demand in the areas of C2/C3/C4ISR/C5ISR mission systems, border and perimeter security systems, unmanned aircraft systems, unmanned surtace vessels, remote controlled systems, and homeland security solutions, law enforcement and also covering film, broadcast and live stream activities that who can't risk communication failure.
Agricultural Drones Factory Heavy Lift Drone Vtol Drone Agri Spray Drones Remote Control Drones Drone Agriculture Sprayer

Exhibitions
Agricultural Drones Factory Heavy Lift Drone Vtol Drone Agri Spray Drones Remote Control Drones Drone Agriculture Sprayer

Testing Instruments
Agricultural Drones Factory Heavy Lift Drone Vtol Drone Agri Spray Drones Remote Control Drones Drone Agriculture Sprayer
Certifications

Certifications
Agricultural Drones Factory Heavy Lift Drone Vtol Drone Agri Spray Drones Remote Control Drones Drone Agriculture Sprayer

Cooperation Partners

Agricultural Drones Factory Heavy Lift Drone Vtol Drone Agri Spray Drones Remote Control Drones Drone Agriculture Sprayer
Packaging & Shipping

Packaging & Delivery

Packing: Packed in a professional shipping box
Port: Yantian, Shekou or Hong Kong


FAQ

FAQ:

Q: Who we are?
A: We are a Global leading high-tech enterprise engaged in R&D development and production of RF wireless communication systems for the broadcast, public surveillance and defense industries.

Q: Could you support OEM&ODM?
A: We are able to offer you the best solutions on market by providing you OEM/ODM service.

Q. How long is the delivery time?
A: Normally small quantity orders will be dispatched within 2-5 working days after receiving payment. For bulk order, we will ship out within 10-15 days..

Q. How do we make a business long term and good relationship with you?
A. We will protect our partner's profit by providing them with good quality products and competitive prices. We treat every customer as a friend and do business with everyone sincerely. no matter where they come from.

Q: How can you guarantee quality?
A: For all systems before shipment, will undergo a series of tests, including vibration testing, test for functional interface & RF indicators & sensitivity & meter settings, high and low temperature testing, trial aging testing, test the interface and all wiring, field testing outsides etc.

Q: What is your usual payment terms for orders?
A: T/T, Western Union
