Agricultural Drone Farming Spray Plant Protection Uav Agriculture Sprayer Agro Drone

Agro Drone: Leading factory for high-quality agricultural drone farming spray equipment. Enhance plant protection and efficiency with our UAV agriculture sprayers.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Why choose us
  • Company Profile
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Model NO.
405
Power Supply
Electric
Technics
Carbon Fiber
Material
Carbon Fiber
Type
Sprayer Parts
Feature
Anti-Fall
Production Folding Size
470mm*470mm*445mm
Max Pesticide Load
5.5kg
Aircraft Medicine Box Capacity
5L
Flight Radius
Less Than 5000m
Max Takeoff Weight
14kg
Aircraft Weight
5.5kg
Flight Attitude
Less Than 30m
Flight Duration
10-15minutes
Transport Package
Carton
Specification
carbon fiber
Trademark
CHINA BIA
Origin
China
HS Code
8802110010
Production Capacity
10000 Unit

Product Description

Agricultural Drone Farming Spray Plant Protection Uav Agriculture Sprayer Agro Drone
5L 4 Rotor Pesticide Spraying Crop Agricultural Plant Protection Drone


Product Description
 Model BIA-405
Product material Aviation carbon fiber + aviation aluminum
Product unfolded size 775mm*775mm*445mm
Product folded size 470mm*470mm*445mm
Maximum takeoff weight 14KG
Aircraft weight 5.8KG
Pesticide Barrel 5.5L(standard a bucket)
Fly time(loaded) 6~8 minutes when fully loaded
Spray width 2-3 meters
Spray flow 5L/min double pump adjustable
Fly control  Industrial Version GPS and Controller
Spray efficiency 40 mu/hour
Safe takeoff and landing wind speed ≤5
Motor speed  5000rpm
Working voltage  24V



Detailed Photos

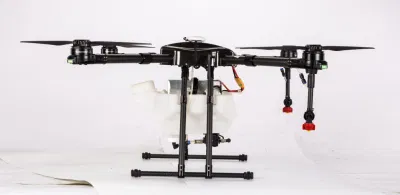

Agricultural Drone Farming Spray Plant Protection Uav Agriculture Sprayer Agro Drone Folding machine arm, saving space

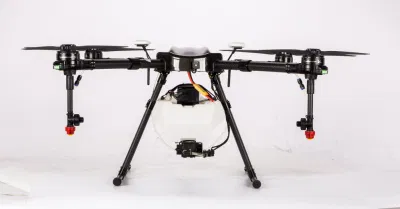

3K carbon fiber , resistance to falling Agricultural Drone Farming Spray Plant Protection Uav Agriculture Sprayer Agro Drone

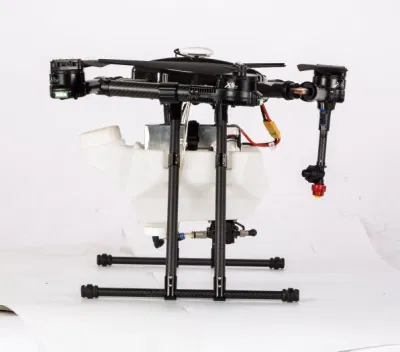

Agricultural Drone Farming Spray Plant Protection Uav Agriculture Sprayer Agro Drone Solid and stable frame, anti shock

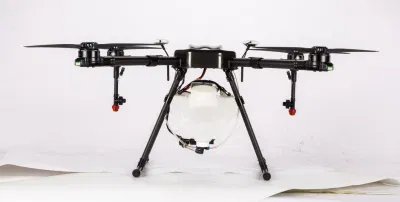

Embrace folding arm, easy to carry Agricultural Drone Farming Spray Plant Protection Uav Agriculture Sprayer Agro Drone






Why choose us



1.Horizontal folding design

Adopting a horizontal embracing folding design,a light weight
body,Folding size 470*470*445mm (empty drone) can
be lifted with one hand .It can greatly reduce the problem
of transfer and transportation during operation
 .


Agricultural Drone Farming Spray Plant Protection Uav Agriculture Sprayer Agro Drone



2.Image transmission remote

The ground station has been optimized based on the tower,with a better interactive interface, a larger map view,The aircraft can be controlled to
realize intelligent waypoint planning,automatic execution,automatic follow,one click home,Significantly provide work efficiency for
professional tasks .
Agricultural Drone Farming Spray Plant Protection Uav Agriculture Sprayer Agro Drone


Agricultural Drone Farming Spray Plant Protection Uav Agriculture Sprayer Agro Drone 3. Simple assembly

Equipped with dual GNSS modules,double guarantee for operation and flight,
Achieve greater precision and efficiency of heading positioning control.


4.A-B point operation mode

In A-B point operation mode, farmers can set
point A and B as the apexof the working
area, and control the flying direction
manually.Then the aircraft will automatically
spray in accordance with the established route.
When there is no medicine in the medicine
box, the aircraft will hover at a fixed point
and record it.After fulfilling the medicament,
the aircraft will fly back to the point where it
stopped and continues its work.This mode
is more suitable for working in a regular
large area.
Agricultural Drone Farming Spray Plant Protection Uav Agriculture Sprayer Agro Drone


Agricultural Drone Farming Spray Plant Protection Uav Agriculture Sprayer Agro Drone 5. Map planning mode
Automatical map planning operation mode, farmers can
operale the working area through the phone's APP map.
This mode is mainly used for complex fields.To select the
multi-point and multi-lateral planning of the field to operate,
and it can automatically create the route.
If there are obstacles in the work area,you can set this
area as avoidance place and the aircraft will pass it
automatically.

6. provides customized routes for irregular terrain,
operates completely as your idea, and improves operational efficiency.
Have route memory function, and can calculate the spray area,so as to assist the operator to adjust the dosage more accurately.
Agricultural Drone Farming Spray Plant Protection Uav Agriculture Sprayer Agro Drone


Company Profile



Shandong Liying Agricultural Technology Development Co.,Ltd. is a company dedicated to improving the agricultural environment, providing solutions to agricultural problems, mainly producing unmanned aerial vehicles, tractors and farm tools.

We operate through five business segments, provide solutions to the UAV industry application, UAV plant protection services, UAV automation control system development, UAV teanchnical maintence support and UAV education.

We offer products in various categories such as Plant protection drone,Security Force drone,Fire fighting drone,Surveillance drone, Rescue drone,Patrol drone, Cargo drone.

We will never stop to commit to the research and development of new products according to the different needs of customers. We are the only manufacturer who can provide 52L big payload agricultural drones in the market now.
Packaging & Shipping

Agricultural Drone Farming Spray Plant Protection Uav Agriculture Sprayer Agro Drone


FAQ



Q1.How to Choose the suitable Drones?
Please tell us your usage and detailed request. The Most suitable model will be recommend by us.

Q2.MOQ?
l set is acceptable for test

Q3.Accept OEM?
Yes, OEM is accepted.

Q4.What About Transportation?
By Sea(To You Nearest Seaport)
By Air(To Your Nearest Airport)
By Express(To Your Address)

Q5.Delivery Time?
lf in Stock, about 2-5 days to transport.If not,about 7-10days.Accurate time will be confirmed according to the order quantity.

Q6.How to Pay?
We can trade by Alibaba Trade Assurance online. TT/LC is also available.

Q7.Quality Warranty?
1 Year Quality Warranty with free spare parts exclude human factors.

Q8.After-sale Service?
Extreme low failure rate and simple structure make it much easier to maintain.Parts and video instruction will be offered.

Q9.Are you factory or trading company?
We are factory with 10 years R&D experience.
