Basic Info.
Model NO.
U50 max
Material
Aviation Carbon Fiber and Aviation Aluminum
Type
Sprayer Drone
Sprayer Type
Pump
Usage
Agriculture
Applicable Industry
Farms,Home Use,Epidemic Prevention
Feature
Anti-Fall
Production Material
Aviation Carbon Fiber and Aviation Aluminum
Production Folding Size
2760mm*2760mm*850mm
Max Pesticide Load
60kg
Aircraft Medicine Box Capacity
52L
Flight Radius
Less Than 3000m
Max Takeoff Weight
107kg
Aircraft Weight
30kg
Flight Attitude
Less Than 30m
Flight Duration
13-30minutes
Condition
New
Warranty Time
12 Months
Transport Package
Professional Package Box
Specification
1 CBM
Trademark
UNID
Origin
China
HS Code
8802200090
Production Capacity
1000 Unit
Product Description

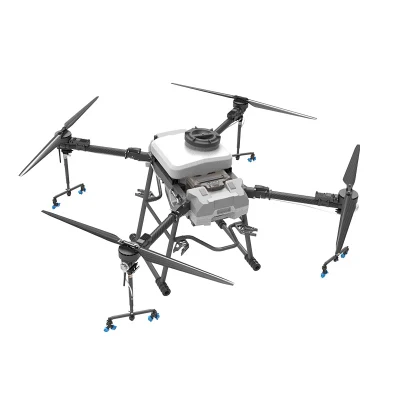

52L payload drone sprayer for farmer big load drone agricultural sprayer
- OEM & ODM Service -
- OEM & ODM Service -
Our products and services are all over the world, and we are committed to promoting the development of global agricultural automation.At present, more and more countries and regions begin to contact and use our agriculture drone(uav)for spraying and sowing operations. While improving the work efficiency, it greatly reduces the cost of agricultural operations and reduces the working time.We will solve problems for you with our mature technical support and products and services.
- Features - 1.The fuselage adopts a closed design, which can prevent pesticides from entering the flight control system and provide safety guarantee for long-term operation.

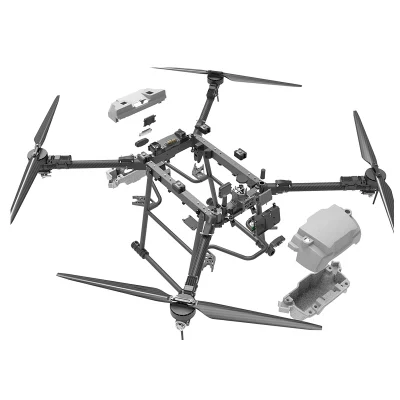

2.Modular design of functional components, easy maintenance and upgrade.
3.Using intelligent plug-in battery
4.Use quick-plug medicine barrel
5.The arm can be quickly disassembled.
6.7075 aviation aluminum (high grade) is used for the folding part.
7.Wear the case, optimize the whole machine, and hide the medicine circuit.
8.High-pressure brushless water pump is adopted, and the ESC is fully waterproof.
9.The plant protection machine has built-in GPS and compass module, with fixed-height and fixed-point flight function, which can well maintain the spray height and spray route accuracy of the operation.
10.The height limit and flight speed limit of spraying operation can be set. The high-pressure spraying system has good automization effect. Under the wind pressure of the aircraft, the drug mist has the characteristics of strong penetration.
11.Alternating spraying function, the spray head can be switched independently.
2.Modular design of functional components, easy maintenance and upgrade.
3.Using intelligent plug-in battery
4.Use quick-plug medicine barrel
5.The arm can be quickly disassembled.
6.7075 aviation aluminum (high grade) is used for the folding part.
7.Wear the case, optimize the whole machine, and hide the medicine circuit.
8.High-pressure brushless water pump is adopted, and the ESC is fully waterproof.
9.The plant protection machine has built-in GPS and compass module, with fixed-height and fixed-point flight function, which can well maintain the spray height and spray route accuracy of the operation.
10.The height limit and flight speed limit of spraying operation can be set. The high-pressure spraying system has good automization effect. Under the wind pressure of the aircraft, the drug mist has the characteristics of strong penetration.
11.Alternating spraying function, the spray head can be switched independently.
| Spraying Parameter | Spreading Parameter |
| Spray efficiency:6.8-20ha/H | Spreading rate:5.5ha/H |
| Range:6~10m | Endurance: 6bags/battery(40kgs/bag, 240kgs) |
| Flow rate:4.5L/Min*2 pumps | Range:6~15m(materials amplitude |
| Nozzle type :VP110015 | varies with height) |
| Nozzle number:16pcs | Max speed:80kgs/min |
| Tank:40L | tank capacity:70L |
| Filter class:class 3(water inlet,outlet,nozzle) | Applicable materials:0.5~10mm dia.dry granules |
| Atomizing diameter:80~250μm |
