Basic Info.
Model NO.
U30L-6
Power Supply
Electric
Technics
Assembly
Material
Aviation Carbon Fiber and Aviation Aluminum
Type
Sprayer Drone
Sprayer Type
Pump
Usage
Agriculture
Applicable Industry
Farms,Home Use,Epidemic Prevention
Feature
Anti-Fall
Production Material
Aviation Carbon Fiber and Aviation Aluminum
Production Folding Size
900mm*730mm*1760mm
Max Pesticide Load
30kg
Aircraft Medicine Box Capacity
30L
Flight Radius
Less Than 5000m
Max Takeoff Weight
66.5kg
Aircraft Weight
24kg
Flight Attitude
Less Than 30m
Flight Duration
13-33minutes
Condition
New
Warranty Time
12 Months
Transport Package
Professional Package Box
Specification
1 CBM
Trademark
UNID
Origin
China
HS Code
8802110010
Production Capacity
10000 Unit
Product Description

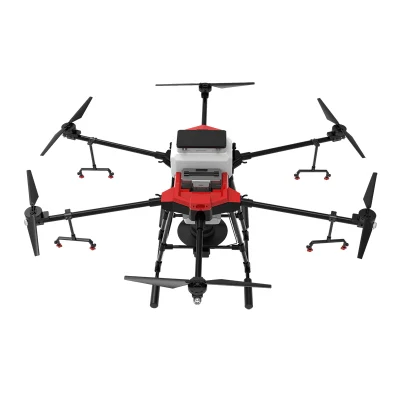

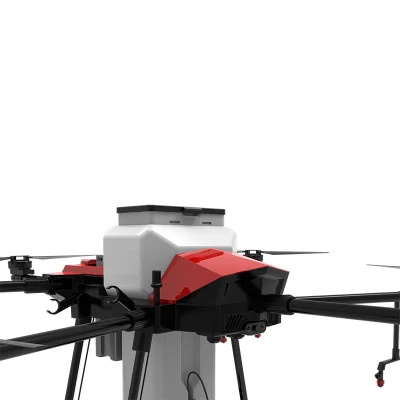

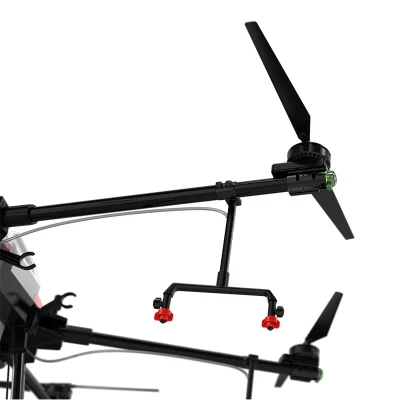

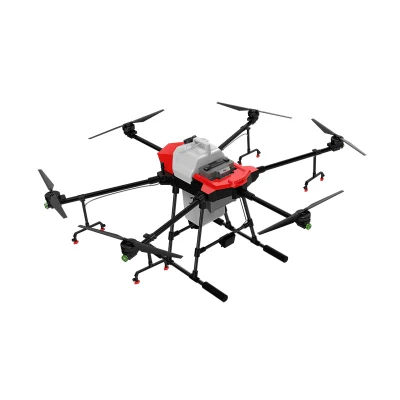

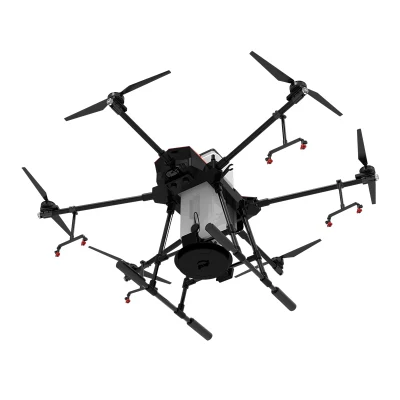

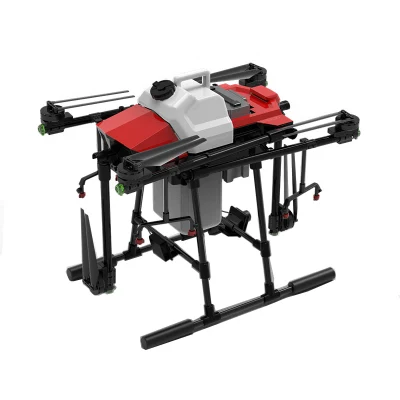

30L Payload Herbicide Agricultural Spraying Drone Uav for Fertilizer Spraying
- OEM & ODM Service -
| Model | U30L-6 |
| Product material | Aviation carbon fiber + aviation aluminum |
| Product expansion size | 3090mm*3090mm*910mm |
| Product folding size | 900mm*730mm*1760mm |
| Packaging size | 1730mm*1200mm*790mm |
| Maximum takeoff weight | 66.5KG |
| Aircraft weight | 24KG |
| Pesticide Barrel | 30L |
| Flight altitude | ≤30 meters |
| Fly time(unloaded) | 20~30 minutes |
| Fly time(loaded) | 10~18minutes when fully loaded |
| Flight speed | 1-20 m / sec |
| Structure lift span | ≥10 years |
| Spray width | 6-12 meters |
| Hovering in the air | Hovering in any direction |
| Spray flow | 8-10L/min |
| Spray system | Imported high pressure anti-floating atomizing nozzle |
| Atomization point size | 60~500μm |
| Fly control | Industrial Version GPS and Controller |
| Spray efficiency | ≥14hectares / hour |
| Safe takeoff and landing wind speed | ≤5 |
| Motor speed | 5000rpm |
| Power system | 60.9V power polymer computer battery |
| Charer | AC Input 100-240V |
| Lithium-polymer battery | 20000mAh*2 |
Features
1. The fuselage adopts a closed design, which can prevent pesticides from entering the flight
control system and provide safety guarantee for long-term operation;
2. The plant protection machine has built-in GPS and compass module, with fixed-height and
fixed-point flight function, which can well maintain the spray height and spray route accuracy
of the operation;
3. The height limit and flight speed limit of spraying operation can be set. The high-pressure
praying system has good atomization effect. Under the wind pressure of the aircraft, the drug
mist has the characteristics of strong penetration. Leaf face.These advantages make our products
ore efficient and useful.
1. The fuselage adopts a closed design, which can prevent pesticides from entering the flight
control system and provide safety guarantee for long-term operation;
2. The plant protection machine has built-in GPS and compass module, with fixed-height and
fixed-point flight function, which can well maintain the spray height and spray route accuracy
of the operation;
3. The height limit and flight speed limit of spraying operation can be set. The high-pressure
praying system has good atomization effect. Under the wind pressure of the aircraft, the drug
mist has the characteristics of strong penetration. Leaf face.These advantages make our products
ore efficient and useful.
