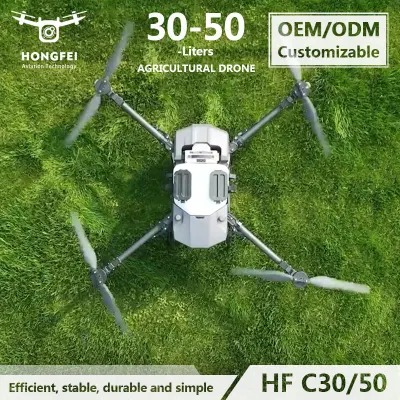

30-50L Big Payload Fumigation Uav Drone for Agriculture

Introducing our 30-50L Big Payload Fumigation UAV Drone for Agriculture. As a factory, we offer top-quality drones for efficient crop spraying.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Packaging & Shipping
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
HF C30/C50
Installation
Module
Liquid Contained
Medicine, Disinfector
Spraying Shape
Sector
Volume
30L/50L
Power Supply
Electric
Material
Carbon Fiber and Aerospace Aluminum
Type
Drone
Wheelbase
C30: 2025mm / C50: 2272mm
Folded Size
C30: 979*684*752mm / C50: 1066*677*830mm
Expand Size
C30: 2435*2541*752mm / C50: 2845*2718*830mm
Spraying Tank
C30: 30L / C50: 50L(Recommend 45L)
Spreading Tank
C30: 50L / C50: 70L
Applicable Granule
0.5-6mm Dry Solids
Spread Width
8-12m
Transport Package
Cardboard Box (Optional Wooden Box)
Specification
C30: 979*684*752mm / C50: 1066*677*830mm
Trademark
HongFei
Origin
China

Packaging & Delivery

Package Size
98.50cm * 67.00cm * 45.50cm
Package Gross Weight
30.850kg

Product Description

30-50L Big Payload Fumigation Uav Drone for Agriculture

Product Description

DRONE SYSTEM C30 C50
Unloaded Spraying drone weight (without batteries) 29.8kg 31.5kg
Unloaded Spraying drone weight (with batteries) 40kg 45kg
Unloaded Spreading drone weight (without battery) 30.5kg 32.5kg
Unloaded Spreading drone weight (without battery) 40.7kg 46kg
Max Take-off weight 70kg 95kg
Wheelbase 2025mm 2272mm
Expand Size Spraying drone:2435*2541*752mm Spraying drone:2845*2718*830mm
Spreading drone:2435*2541*774mm Spreading drone:2845*2718*890mm
Folded size Spraying drone:979*684*752mm Spraying drone:1066*677*830mm
Spreading drone:979*684*774mm Spreading drone:1066*677*890mm
No-load hovering time 17.5min(Test by 14S 30000mah) 20min(Test by 18S 30000mah)
Full load hovering time 7.5min(Test by 14S 30000mah) 7min(Test by 18S 30000mah)
Working temperature 0-40ºC
Hongfei C Series Agricultural Drone
Choose between 30kg and 50kg load models, new high-strength truss fuselage structure, wiring-free integrated grouped flight control, with high-flow impeller pumps and water-cooled centrifugal spray nozzles, the deep integration of software and hardware, to realize the whole machine intelligent sensing.
30-50L Big Payload Fumigation Uav Drone for Agriculture
New structure
30-50L Big Payload Fumigation Uav Drone for Agriculture
Z-Type Folding
Minish folding size, easy transport
Truss Structure
Double the strength, sturdy and durable
Press-Locking Handle
Intelligent sensor, convenient operation, sturdy&durable
New experience
30-50L Big Payload Fumigation Uav Drone for Agriculture

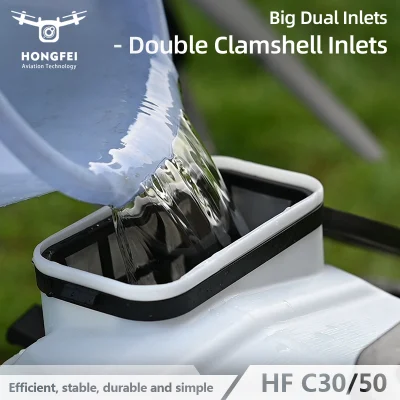

Double Clamshell Inlets
Big dual inlets, easy pouring
Tool-Free Housing
Simple built-in buckle, quick disassembly
Front High Tail Low
Effective reduction of wind resistance
Fully Interconnection, Aptitude Upgrade
30-50L Big Payload Fumigation Uav Drone for Agriculture

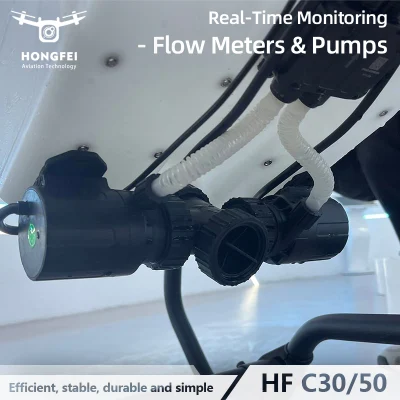

Ultrasonic Flowmeter
Separating detection, stable and reliable
High Precision Weighing Modules
Real-time detection to avoid overloading
Intelligent Feedback Module
Constantly status detection, early warning of faults
30-50L Big Payload Fumigation Uav Drone for Agriculture
Integrated Flight Control
Wiring-free and debugging-free, enabling fast installation
Grouping Modular Design
Separate modules of flight control, RTK module and receiver module.
Plug-in connection, flexible configuration
Optimize Arrangement, Upgrade Waterproofing
Deeply optimized wire layout, orderliness and easy to repair, optimizing plug with waterproof terminal, more reliable performance



Efficient Spraying, Hearty Flow
-New spraying system, equipped with bilateral high-flow impeller pumps, abundant flow, efficient operation.
-Equipped with ultrasonic flow meter, the sensor and liquid are detected separately, which makes the performance more stable and the precision more accurate.

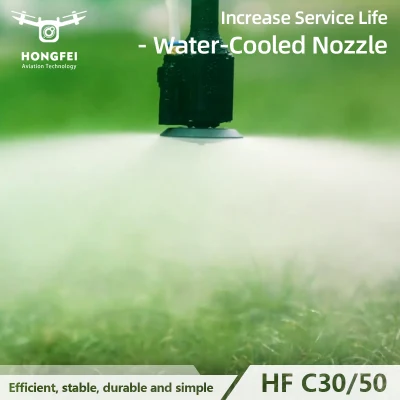

-Unique water-cooled centrifugal spray nozzle, effectively reduce the temperature of motor adjustment, increase service life.
-Large atomization radius, bringing a new spraying experience.
SPRAYING SYSTEM C30 C50
Spraying tank 30L 50L(recommend 45L)
Water pump Volt:12-18S / Power:30W*2 / Max flow:8L/min*2
Nozzle Volt:12-18S / Power:500W*2 / Atomized particle size:50-500μm
Spray width 4-8m
30-50L Big Payload Fumigation Uav Drone for Agriculture

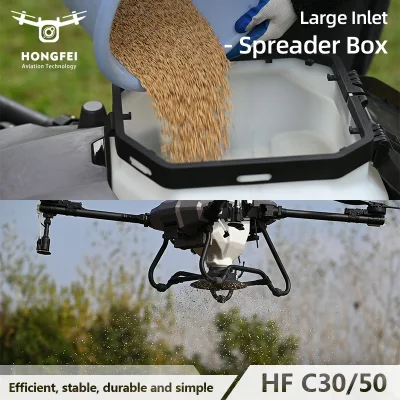

Precise Spreading, Smooth Sowing
-Integrated tank design, quickly change spraying and spreading in one step, convenient and fast.
-Super large inlets, greatly enhance the loading efficiency.
-Bow-shaped tripod design, effectively avoid the collision of broadcasting particles.
-Residual material weight detection for precise sowing.
SPREADING SYSTEM C30 C50
Spreading tank 50L 70L
Max load 30kg 50kg
Applicable granule 0.5-6mm dry solids
Spread width 8-12m
30-50L Big Payload Fumigation Uav Drone for Agriculture



IP67, Integrally Waterproof
-The whole drone is upgraded waterproof from the inside to the outside, Motherboard integral potting, plug with waterproof terminal, sealed all core modules.
-The whole drone achieves immersion waterproof, easily cope with various harsh working environments
30-50L Big Payload Fumigation Uav Drone for Agriculture



Common Structure, Convenient Maintenance
30L/50L universal structure, more than 95% of the parts are common. Which makes it easy to prepare the spare parts and effectively reduce the maintenance costs. Simplify assembly process and improve production efficiency.
Product Dimension Drawing
C30 C50
30-50L Big Payload Fumigation Uav Drone for Agriculture 30-50L Big Payload Fumigation Uav Drone for Agriculture

Packaging & Shipping

30-50L Big Payload Fumigation Uav Drone for Agriculture 30-50L Big Payload Fumigation Uav Drone for Agriculture 30-50L Big Payload Fumigation Uav Drone for Agriculture 30-50L Big Payload Fumigation Uav Drone for Agriculture
Production, assembly Testing Packaging
(customized boxing method available)
Loading and shipping

30-50L Big Payload Fumigation Uav Drone for Agriculture



Company Profile

Hongfei Aviation Technology Co., Ltd.

IsEstablished in 2003, with a factory in Anhui, China and a stable team of highly skilled employees, we are a professional UAV operation solution provider.
Our products have passed ISO certification and CE certification, and we have several patent certificates. We are committed to providing professional solutions for our partners in the drone industry and creating a complete supply chain of drone products.

Strength Service Quality Certificates
Years of operation, with rich manufacturing and sales experience.
·Support OEM/ODM
·Independent factory
·With professional R&D team
·Possess many patents
·One of the leading drone manufacturers in China
Quality service to meet your needs.
·Perfect pre-sales and after-sales service
·According to the application industry, we can match the best solution for you
·Focus on customer feedback, timely and effective solution to customer problems
Professional production system to ensure the quality of each product.
·Passed ISO9001 international quality system certification
·Controlling the details, to ensure that each detail of the product delivery
Received several certifications.
·20 invention patents
·15 utility model patents
·23 software copyrights
·1 appearance patent

30-50L Big Payload Fumigation Uav Drone for Agriculture



FAQ

1.What is the best price for your product?
We will quote based on the quantity of your order, the higher the quantity the higher the discount.

2.What is the minimum order quantity?
Our minimum order quantity is 1 unit, but of course there is no limit to the number of units we can purchase.

3.How long is the delivery time of the products?
According to the production order dispatch situation, generally 7-20 days.

4.What is your payment method?
Wire transfer, 50% deposit before production, 50% balance before delivery.

5.What is your warranty time? What is the warranty?
General UAV frame and software warranty of 1 year, the warranty of wearing parts for 3 months.
