Basic Info.
Model NO.
U25L-4
Usage
Agriculture
Applicable Industry
Farms, Home Use, Epidemic Prevention
Feature
Anti-Fall
Production Material
Aviation Carbon Fiber and Aviation Aluminum
Production Folding Size
1220mm*1220mm*600mm
Max Pesticide Load
25kg
Aircraft Medicine Box Capacity
25L
Flight Radius
Less Than 5000m
Max Takeoff Weight
51kg
Aircraft Weight
16.6kg
Flight Attitude
Less Than 30m
Flight Duration
20-25minutes
Condition
New
Warranty Time
12 Months
Transport Package
Professional Package Box
Specification
1 CBM
Trademark
UNID
Origin
China
HS Code
8802200090
Production Capacity
10000 Unit
Product Description
25kg payload drone for pesticide applicationfumigation drone sprayer
- OEM & ODM Service -
Product Description

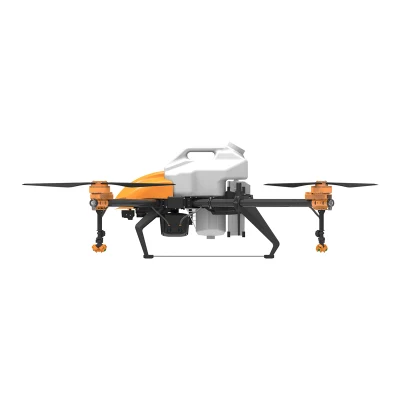

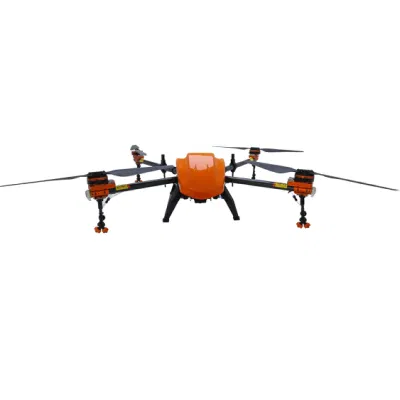

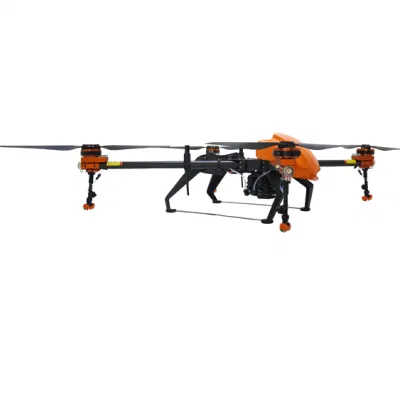

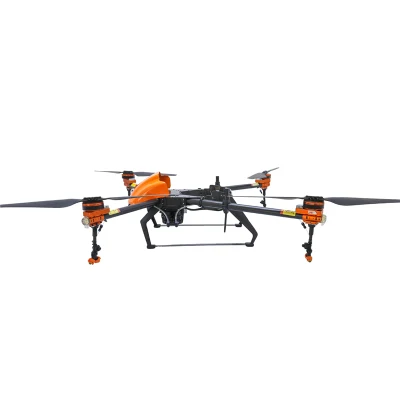

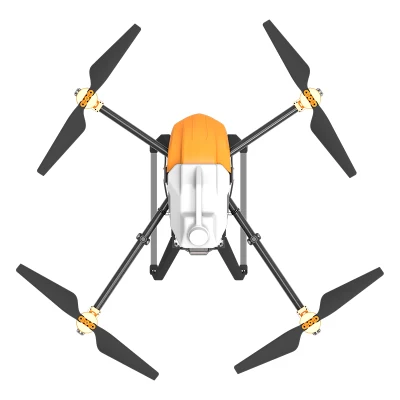

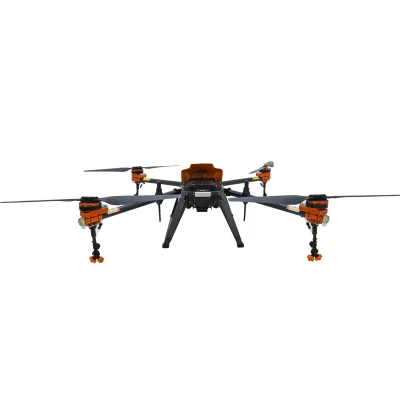

U25L-4 spray drone can carry up to 25 liters of chemicals. It can operate autonomously through flight control navigation, and the operator can grasp the current status and progress of spraying at any time through the display. U25L-4 accelerates the formation of an aerosol stream by airflow, which increases the penetration of medicine drops to a certain extent, saving labor costs and labor intensity while being more humane.
Product Specifications
Product Specifications
| Model | U25L-4 |
| Product material | Aviation carbon fiber + aviation aluminum |
| Product extended size | 1990mm*1990mm*600mm |
| Product folded size | 1220mm*1220mm*600mm |
| Maximum takeoff weight | 51KG |
| Aircraft weight | 16.6KG |
| Pesticide Barrel | 25L |
| Flight altitude | ≤30 meters |
| Fly time(unloaded) | 20~25 minutes |
| Fly time(loaded) | 10~13 minutes when fully loaded |
| Flight speed | 1-10 m / sec |
| Aircraft life span | ≥10 years |
| Spray width | 4-8 meters |
| Hovering in the air | Hovering in any direction |
| Spray flow | 3-8L/min double pump adjustable |
| Spray system | Imported high pressure anti-floating atomizing nozzle |
| Atomization point size | 60~90μm |
| Fly control | Industrial Version GPS and Controller |
| Spray efficiency | ≥8 hectares/hour |
| Motor speed | 5000 rpm |
| Safe takeoff and landing wind scale | ≤5 |
| Power system | 56V power polymer computer battery |
| Charger | AC Input100-240V |
| Lithium-polymer battery | 19000mAh*1 |
Product Features
1. Automatic line-feeding spray (recyclable spraying);
2. Automatic flight spraying at point AB (plant protection aircraft can fly autonomously and record automatically after spraying);
3. Fully autonomous spraying of plots (the area and terrain of the selected plots of the ground station are determined, and the aircraft can be autonomously sprayed);
4. One-click record of medicine break point (automatically record the main point after pesticide spraying in the spraying process and return to take-off point to change medicine);
5. One-click return to the medicine break point (after spraying pesticides, the main points are automatically recorded after spraying, and then return to the take-off point to change the coloring medicine. After changing the medicine, the machine will automatically return to the medicine break-off point.
