Basic Info.
Model NO.
YC2022-5
Working Way
Rotary
Type
Knapsack
Product Material
Aviation Carbon Fiber +Aviation Aluminum
Transport Package
Aluminum Transport Case
Specification
100*90*80 cm
Trademark
YUCHENG
Origin
Shandong, China
HS Code
8806100000
Production Capacity
200sets Per Month
Product Description

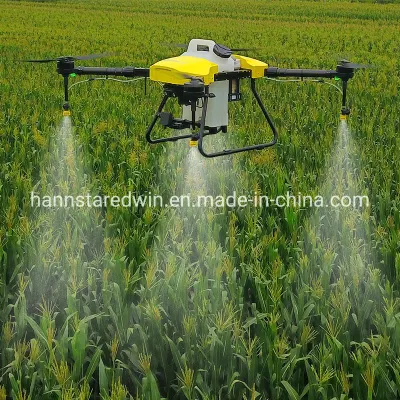

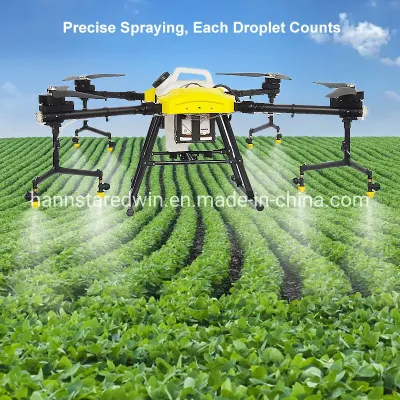

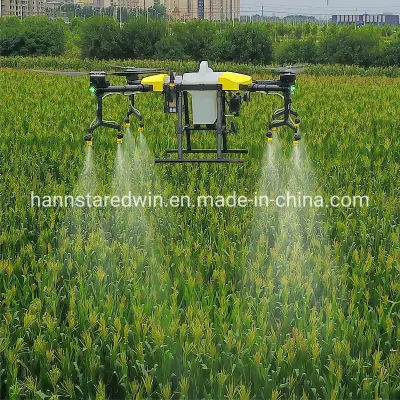

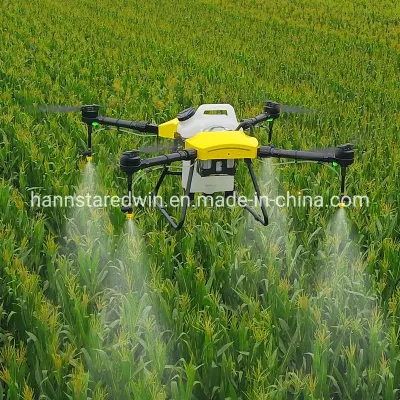

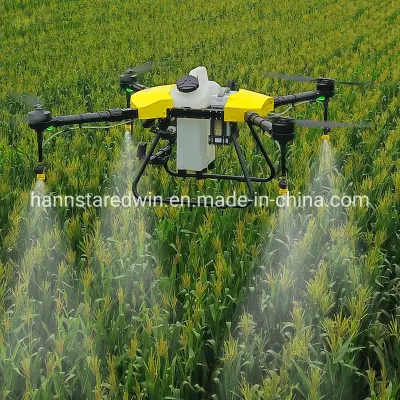

10L 20L 30L Agricultural Pesticide liquid Sprayer Drones
Usage:Agriculture
Applicable Industries:Farms, Retail, agriculture drone sprayer
Place of Origin:Shandong, China
Brand Name:YUCHENG
Sprayer Type:Pump
Diameter:130 cm
Feature:spray by dro
Condition:New
Warranty:3 years
Key Selling Points:High Safety Level
Marketing Type:Hot Product 2020
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Warranty of core components:3 months
Core Components:Pump, Motor
Weight:40 KG
Product name:agriculture drone sprayer
Ready to fly:Yes
Tank capacity:10L
Material:Carbon Fibre + Aviation Aluminum
Certification:CE FCC ROHS ISO9001
Net Weight:10.5KGS
Spray efficiency:≥5-6 hectares/hour
Fly time:10-15min
Spray width:>4-6m
Application:Spraying Liquid Chemical Pesticides
After Warranty Service:Video technical support, Online support
After-sales Service Provided:Video technical support, Online support
Supply Ability :50 Set/Sets per Month
Packaging Details:Aluminum transport case
Delivery Port:Qingdao
Specification
f
Agriculture Drone Applications.
YUCHENG agriculture sprayer drones have been widely used for crop protection, mosquito control, and public disinfection. Plantations: rice, corn, sugar cane, soybean, flower, coffee, vegetables, fruit trees.
Chemical/fertilizer use: liquid pesticide, herbicide, solid fertilizer/granule fertilizer, fungicide, insecticides,seed, etc.
Product Feature
Brushless Motor
Waterproof & Dustproof
Waterproof level IP67
Heavy-duty
With self-cooling system
Work continuously for 12 hours/day
High pressure nozzle
Droplet diameter of 100~200um
Italy famous brand ARAG
Ceramic nozzle & anti-corrosion
Conical spraying effect
Long service life
Aviation aluminum folding joint
Light and durable
Carbon fiber drone arm with diameter 40mm, thickness 2.0mm
Suitable for heavy duty work
Long service life
Carbon fiber propeller
Foldable during transport
FOC integrated power system
Foldable design for easy transport
Only use one smart battery
Two water tanks for quick change
Quick detachable design to change the battery and water tank quickly
Improve the spraying efficiency
Company Profile
YUCHENG INDUSTRY Co., Ltd. is a high-tech enterprise with 8 years experience in researching and developing agricultural sprayer drones and UAV application solutions. Our products have got CE, FCC, RoHS, ISO 9001 certifications and acquired 14 patents. With high quality, competitive price and professional after-sale service, has been widely praised by our clients, our products have been exported to all over the world , Now we have 10L, 15L,16L,20L,24L,32L... different capacity drones, widely used in the area of agricultural spraying, plant protection and public sanitary disinfection. our production capacity is over 200 units monthly, devote to be your reliable professional agriculture drones business partner. Welcome to contact us. Thank you.
Certificates: YUCHENG sprayer drones have got CE, FCC, RoHS, ISO 9001 and 12 Patents.
Packing & Delivery
Our services:
Warranty: 3 years for the agriculture drone frame; 12 months for main drone spare parts; 3 months for wearing spare parts.
Shipment methods: by sea, by air, by express according to your needs.
Lifelong after-sales service, operate manual and videos, timely video support is :
FAQ:
Q. What's your MOQ of the fumigation drone?
A:1 piece is our MOQ, Well we don't have quantity limitation, any quantity is ok for trial order.
Q.Are you sprayer drone factory?
A: Yes, we are a professional agricultural sprayer drone R & D and production:agricultural
sprayer drones, spreader drones. thermal fogger drones.
Q.Is uav sprayer drone ready to fly?
A:Yes.Before dispatch, YUCHENG assembled all the parts and set all the parameters. every drone is 100% tested and confirm it meets the highest standards in performance and durability
Q: How long is your delivery time of spraying drones?
A:Generally it is 2-3 days if the goods are in stock. or it is 7-15 days if the goods are not in stock, it is according to
quantity.
Q: What is your terms of payment ?
A: 50% T/T deposit for sprayer drone production, balance paid before shipment.
The competitive advantage of product line:
The company can produce various types of products to meet the requirements of different customers.
Usage:Agriculture
Applicable Industries:Farms, Retail, agriculture drone sprayer
Place of Origin:Shandong, China
Brand Name:YUCHENG
Sprayer Type:Pump
Diameter:130 cm
Feature:spray by dro
Condition:New
Warranty:3 years
Key Selling Points:High Safety Level
Marketing Type:Hot Product 2020
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Warranty of core components:3 months
Core Components:Pump, Motor
Weight:40 KG
Product name:agriculture drone sprayer
Ready to fly:Yes
Tank capacity:10L
Material:Carbon Fibre + Aviation Aluminum
Certification:CE FCC ROHS ISO9001
Net Weight:10.5KGS
Spray efficiency:≥5-6 hectares/hour
Fly time:10-15min
Spray width:>4-6m
Application:Spraying Liquid Chemical Pesticides
After Warranty Service:Video technical support, Online support
After-sales Service Provided:Video technical support, Online support
Supply Ability :50 Set/Sets per Month
Packaging Details:Aluminum transport case
Delivery Port:Qingdao
Specification
| Item/Model | YC2022-5 | YC2022-5 | YC2022-5 |
| Pesticide load | 10 Liters | 16 liters | 20 liters |
| Self weight | 10.5 KG | 17 kg | 18.5 kg |
| Take-off weight | 24.5 KG | 40 kg | 44 kg |
| Fly time | 10-15 Min | 10~15 min | 10~15 min |
| Spray efficiency | 5-7 Hectares/hour | 8~10 hectares/hour | 9~11 hectares/hour |
| Spray width | 4-6 m | 6~7 m | 7~8 m |
| Spray speed | 0~8 m/s | 0~8 m/s | 0~8 m/s |
| Nozzle | 4 high pressure nozzles | 4 High pressure nozzles | 4 centrifugal nozzles |
| Battery | 2 pcs 6S 17000 mAh | 1 pc 12S 22000 mAh | 2 pcs 6S 23000 mAh |
| Flying radius | 1000 m | 1000 m | 1000 m |
| Spray flow | 1~1.5 L/Min | 2~ 2.5 L/min | 2.5~ 3 L/min |
| Flying height | 0~30 M | 0~30 m | 0~30 m |
| Work temperature | -10~70 ºC | -10~70 ºC | -10~70 ºC |
| Work humidity conditions | 0-90% | 0-90% | 0-90% |
| Wind resistance | 10 m/s | 10 m/s | 10 m/s |
| Spread size (m) | W1.5 *L1.5 * H0.6 | 1.8 *1.8 * 0.7 m | 1.95 *1.95 * 0.57 m |
| Folded size (m) | W0.9 * L0.8 *H0.6 | 0.95 * 1.05 *0.7 m | 0.7 * 0.7 *0.8 m |
| Package size/ weight | 100*90*80 cm / 50 kg | 120*100*79 cm / 70 kg | 75*85*95 cm / 80 kg |
