Basic Info.
Model NO.
HF T72
Installation
Module
Liquid Contained
Medicine, Disinfector
Spraying Shape
Sector
Volume
72L
Power Supply
Electric
Material
Aerospace Aluminum + Carbon Fiber
Type
Drone
Folded Size
1050mm*900mm*1990mm
Package Size
2200mm*1100mm*960mm
Weight
51kg
Maximum Takeoff Weight
147kg
Flight Speed
1-10m/S
Spray Rate
8-15L/Min
Spraying Efficiency
28-30ha/Hour
Spraying Width
8-15m
Transport Package
Airline Box
Specification
2200mm*1100mm*960mm
Trademark
HongFei
Origin
China
Packaging & Delivery
Package Size
105.00cm * 90.00cm * 199.00cm
Package Gross Weight
51.000kg
Product Description
| Material | Aerospace carbon fiber + Aerospace aluminum |
| Size | 3920mm*3920mm*970mm |
| Folded size | 1050mm*900mm*1990mm |
| Package size | 2200mm*1100mm*960mm |
| Weight | 51KG |
| Maximum takeoff weight | 147KG |
| Payload | 72L/75KG |
| Flight altitude | ≤ 20m |
| Flight speed | 1-10m/s |
| Spray rate | 8-15L/min |
| Spraying efficiency | 28-30ha/hour |
| Spraying width | 8-15m |
| Droplet size | 110-400μm |
It can spray 28-30 hectares of fields per hour with very high efficiency, uses smart batteries, and charges quickly. Perfect for large areas of farmland or fruit forests.
The machine is packed in an airline box, which can ensure that the machine will not be damaged during the transportation.
Features A new generation of fly-defense experts:
1. From top to bottom, 360 degrees without dead angle.
2. Adopt high-quality flight control, intelligent battery, the highest grade 7075 aviation aluminum structure, to ensure stable flight and safe operation.
3. GPS positioning function, autonomous flight function, terrain following function.
4. Exported to many countries and regions, high stability and durability can bring you more revenue.
Structural Design
The right eight-axis design. HF T72 has an effective spray width of more than 15 meters. It is the best in its class. The fuselage is made of carbon fiber materials and integrated design to ensure structural strength. The arm can be folded up at 90 degrees, saving 50% of the transportation volume and facilitating transfer and transportation. Beginning in 2017, the large load 8-axis structure has been verified by the market for five years and is stable and durable. The HF T72 platform can carry a maximum of 75KG for operation. Realize fast spraying.

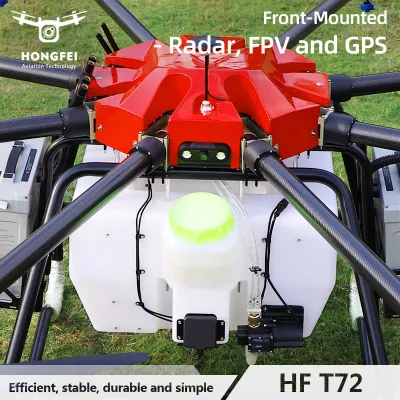

Radar System
Terrain follow radar:
This radar launch high precision centimeter level wave and early precept the terrain topography. Users can adjust the following sensitivity according to different crops and terrain topography to satisfy the demand of terrain following flight, ensure flight safety and well-distribution spraying.
Front and rear obstacle avoidance radar:
High precision digital radar wave detect the surroundings and circumvent obstacles automatically when flying. Operation safety is highly guaranteed. Because of resistance to dust and water, the radar can be adapted to most environment.
Intelligent Flight Control System
The system integrates high-precision inertial and satellite navigation sensors, the sensor data is preprocessed, drift compensation and data fusion in the full temperature range,obtain real-time flight attitude, position coordinates, working status and other parameters to complete the high-precision attitude and route control of the multi-rotor UAS platform.
Route Planning
Drone route planning is divided into three modes.Plot mode, Edge-sweeping mode and Fruit tree mode.
·Plot mode is a commonly used planning mode. 128 waypoints can be added.Freely set the altitude, speed, obstacle avoidance mode, and flight path.Automatically upload to the cloud, Convenient for the next spray planning.
·Edge-sweeping mode, the drone sprays the boundary of the planned area. Arbitrarily adjust the number of laps for sweeping flight operations.
·Fruit tree mode. Developed for spraying fruit trees. The drone can hover, spin and hover at a certain point. Freely choose waypoint/route mode for operation. Set fixed points or slopes to effectively prevent accidents.
Plot Area Sharing
Users can share plots.The plant protection team downloads the plots from the cloud,edits and delete plots. Share the planned plots through your account. You can check the planned plots uploaded to the cloud by customers within five kilometers. Provide plot search function, enter keywords in the search box, you can search and locate plots that meet the search criteria and display pictures.
Intelligent Power System
14S 42000mAh Li-Polymer battery with high voltage smart charger ensures stable and safe charging. | Battery voltage | 60.9V (fully charged) |
| Battery life | 1000 cycles |
| Charging time | About 40 minutes |
 |  |  |  |
| Production, assembly | Testing | Packaging (customized boxing method available) | Loading and shipping |
Hongfei Aviation Technology Co., Ltd.
IsEstablished in 2003, with a factory in Anhui, China and a stable team of highly skilled employees, we are a professional UAV operation solution provider.
Our products have passed ISO certification and CE certification, and we have several patent certificates. We are committed to providing professional solutions for our partners in the drone industry and creating a complete supply chain of drone products.
| Strength | Service | Quality | Certificates |
| Years of operation, with rich manufacturing and sales experience. ·Support OEM/ODM ·Independent factory ·With professional R&D team ·Possess many patents ·One of the leading drone manufacturers in China | Quality service to meet your needs. ·Perfect pre-sales and after-sales service ·According to the application industry, we can match the best solution for you ·Focus on customer feedback, timely and effective solution to customer problems | Professional production system to ensure the quality of each product. ·Passed ISO9001 international quality system certification ·Controlling the details, to ensure that each detail of the product delivery | Received several certifications. ·20 invention patents ·15 utility model patents ·23 software copyrights ·1 appearance patent |
1.What is the best price for your product?
We will quote based on the quantity of your order, the higher the quantity the higher the discount.
2.What is the minimum order quantity?
Our minimum order quantity is 1 unit, but of course there is no limit to the number of units we can purchase.
3.How long is the delivery time of the products?
According to the production order dispatch situation, generally 7-20 days.
4.What is your payment method?
Wire transfer, 50% deposit before production, 50% balance before delivery.
5.What is your warranty time? What is the warranty?
General UAV frame and software warranty of 1 year, the warranty of wearing parts for 3 months.
