40L Heavy Capacity Fertilizer Spreading Drone Agriculture Spray Battery Fumigation Drones

Diagonal Wheelbase	2050mm	Flight Control Systems	V9-AG
Size	Folded: 860*845*840mm	Dynamic System	Hobbywing X11 MAX

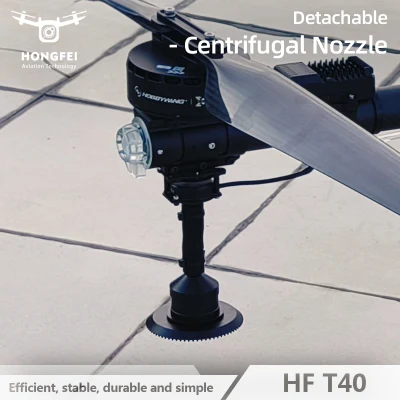

	Spreaded: 2050*2050*735mm	Spraying System	High-Pressure Nozzles / Centrifugal Nozzles
Weight	29KG (Battery:15KG)	Water Pump Pressure	0.8mPa*2
Loading	40KG	Spraying Flow	1.5 -12KG/min
Max. Takeoff Weight	84.8KG	Operational	0.5-0.8acre/min
Flight Time	Empty Tank: 20-25min	Daily Efficiency	20-60hectare (6hours)
	Full Tank: 8min	Power Battery	18S 30000mah
Flight Speed	3-8m/s	Charging Time	0.5-1hour
Spray Width	3-6m	Recharge Cycles	300-500 times

Agricultural Plant Protection Drone HF T40

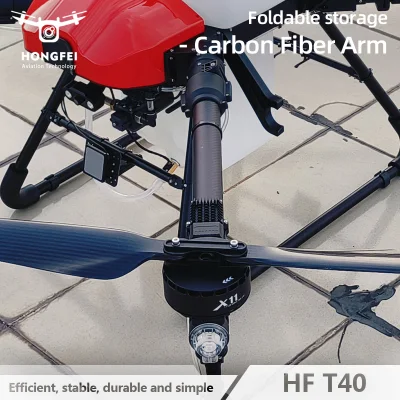

Plug-in Frame, Foldable Arm, Quick Completion of Spraying Tasks




Fuselage Structure
One-piece body frame, streamlined modular design, high strength, superb compatibility and reliability

Fuselage Integration Modular
Meet a variety of programs, can be quickly disassembled and installed, integrated head weak power waterproof module, strong power protection module at the end of the machine, water tank battery can be quickly plugged area.
RTK, remote control antenna corresponding installation position, all the arms can be completed quickly disassembled, hidden protection alignment, for agricultural plant protection to provide a systematic installation program.

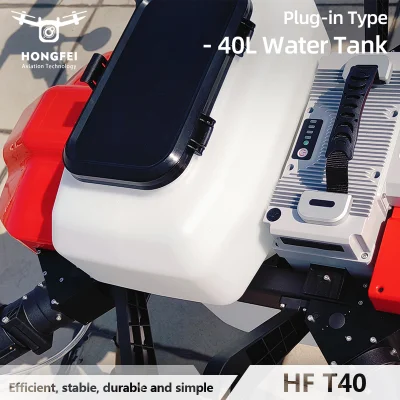

Lightweight folding, fast transfer	Dustproof and waterproof	40L large-capacity spraying water tank
T40 adopts a new folding method to minimize transportation costs, and can be easily operated by a single person	IP65 protection level, the whole machine is dustproof and waterproof, can be directly flushed	T40 is equipped with 40L large-capacity spraying water tank, more efficient sowing, improve the working area and efficiency

To meet different needs, you can choose intelligent pluggable battery or dump wire pluggable battery

Dump Wire Pluggable Battery	Intelligent Pluggable Battery

One Machine for Multiple Uses

To meet the needs of different users, a variety of options are available:
Spraying kit or spreading kit

Spreading systems
Efficient sowing platform	Efficient sowing, saving time and effort	Precise sowing, uniform particles
-This spreading system can be used with HF T40 plant protection drone to efficiently deliver solid particles such as seeds and fertilizers through high rotation speed. -It can be equipped with various control systems and RTK high precision navigation facilities to make the spreading operation more accurate.	-For example, the HF T40 can sow more than 5.3 ha of rice per hour, which is 50~60 times more efficient than manual sowing. -With intelligent control and fully autonomous sowing, it can easily operate under natural conditions where ground sowing equipment is difficult to work.	-The HF T40 drone has a stable structure and is equipped with a spreading system that can accurately spread seeds and solid particles to the desired location. -The design of rotating quantitative opening bin makes the scattered particles not lumpy and not sticky, landing evenly distributed to meet the demand of precise sowing. -Solve the traditional flying sowing dosage imprecision, low flight accuracy, uneven sowing and other pain points.

Rice direct seeding	Grassland replanting	Fish pond feeding	Sowing granular fertilizers and pesticide granules
Can sow more than 36 ha per day, the efficiency is 5 times of high speed rice transplanter, improve the agricultural sowing link	Locating areas where grassland ecology has been damaged and improving grassland ecosystems	Precision feeding of fish food pellets, modern fish farming, avoiding the accumulation of fish food pollution of water quality	Provide customized solutions for different granule density and quality to improve the agricultural management process

HF T40 Drone Dimensions



Production, assembly	Testing	Packaging (customized boxing method available)	Loading and shipping

Hongfei Aviation Technology Co., Ltd.

IsEstablished in 2003, with a factory in Anhui, China and a stable team of highly skilled employees, we are a professional UAV operation solution provider.
Our products have passed ISO certification and CE certification, and we have several patent certificates. We are committed to providing professional solutions for our partners in the drone industry and creating a complete supply chain of drone products.

1.What is the best price for your product?
We will quote based on the quantity of your order, the higher the quantity the higher the discount.

2.What is the minimum order quantity?
Our minimum order quantity is 1 unit, but of course there is no limit to the number of units we can purchase.

3.How long is the delivery time of the products?
According to the production order dispatch situation, generally 7-20 days.

4.What is your payment method?
Wire transfer, 50% deposit before production, 50% balance before delivery.

5.What is your warranty time? What is the warranty?
General UAV frame and software warranty of 1 year, the warranty of wearing parts for 3 months.
