Shandong Joyance Intelligence Technology Co., Ltd.
Joyance Tech is a professional and leading drone agricultural sprayer manufacturer located in China. Since 2012. Joyance Tech has focused on the research & development of sprayer drones and UAV application solutions. Our products have obtained C E, F C C, R O H S, I S O 9 0 0 1 certifications along with 18 national patents and 7 software copyrights. We have users and agents in more than 92 countries and have received significant positive feedback.

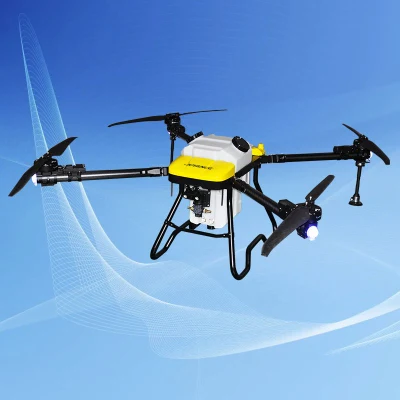

Agricultural sprayer drone JT30L-404
High power motor, Low cost of use, Thick size arm, Better spray effect
| Model | JT 10L-404 QC | JT 16L-404QC | JT30L-404 | JT30L-606 | JT40L-404 | |
| Pesticide Tank | 10L | 16L | 30L | 30L | 40L | |
| Net Weight | 13 kg | 18 kg | 23 kg | 27.5 kg | 42 kg | |
| Take-off Weight | 27 kg | 40 kg | 62 kg | 67 kg | 82 kg | |
| Flying Time | 10~15min | 10~15min | 10~15min | 10~15min | 10~15min | |
| Flying Radius | 0~1000m | 0~1000m | 0~1000m | 0~1000m | 0~1000m | |
| Flying Height | 0~30m | 0~30m | 0~30m | 0~30m | 0~30m | |
| Flying Speed | 0~12m/s | 0~12m/s | 0~12m/s | 0~12m/s | 0~12m/s | |
| Spray Speed | 0~8m/s | 0~8m/s | 0~8m/s | 0~8m/s | 0~8m/s | |
| Work Temperature | -10~70°C | -10~70°C | -10~70°C | -10~70°C | -10~70°C | |
| Work Humidity | 0~90% | 0~90% | 0~90% | 0~90% | 0~90% | |
| Spray Width | 3.5~5.5m | 4~6m | 8~10m | 8~10m | 6~10m | |
| Spray Flow | 1~1.5L/min | 2~2.5L/min | <7.5L/min | ≤7.5L/min | ≤10L/min | |
| Spray Efficiency | 5~7Ha/Hr | 8~10Ha/Hr | 12~15Ha/Hr | 12~15Ha/Hr | 15~20Ha/Hr | |
| Flying Downward Airflow | 4~15m/s | 4~15m/s | 4~15m/s | 4~15m/s | 4~15m/s | |
| Wind Resistance | 10m/s | 10m/s | 10m/s | 10m/s | 10m/s |
Fuselage Structure
JT30L-404 comes with several design improvements that enable more uniform spraying, three-minute disassembly, as well as better durability and corrosion resistance.
With the revolutionary branch-targeting technology and adjustable arms, the JT30L-404 penetrates thick canopies with oblique spraying, ensuring uniform adhesion of liquid pesticides and increasing the number of droplets by 100%.

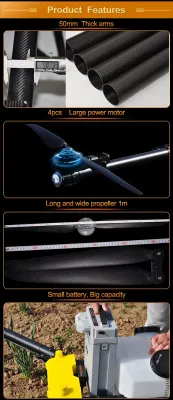

Drone Advantages

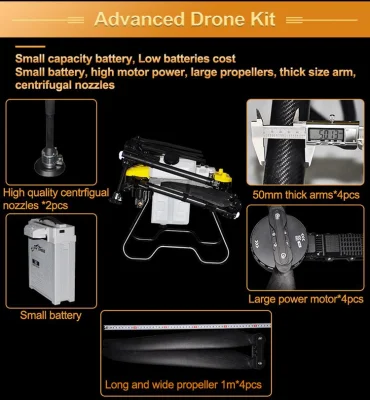

14s 22000mAh Tattu battery, low cost for spraying service.
4 batteries for continuous work. 15 minutes fast recharging.

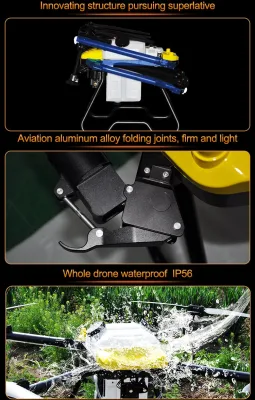

Optimize the design of the cross folding parts, change the force structure, and avoid the unreliability caused by the force of the thread. The folding space is small, the transition is convenient, and the transportation cost is low.
The drone can spray both liquid chemicals and solid fertilizer, fast and easy to switch 2 systems.
Droplet size 50~200um
With the centrifugal nozzles the JT30L-404 penetrates thick canopies with oblique spraying, ensuring uniform adhesion of liquid pesticides and increasing the number of droplets by 100%.
Equipped with ESC LED indicators and FPV cameras, the Joyance JT30L-404 sprayer drone provides clear views. And a bright searchlight doubles the aircraft's night vision capabilities, creating more nighttime operation possibilities.
Brushless water pump, integrated motor and Esc, long life and large flow. Protection grade lP68, no fear of acid and alkali corrosion.
Can the drone spray fertilizers?
Yes, the drone is sprayer and spreader 2 in 1 drone.
How many hectares can this drone spray per hour/day?
The 30 liters drone can spray 2 hectares per flight, 12 hectares per hour if work continuously.
What types of chemical can the drone spray?
Liquid pesticide, fungicide, foliar fertilizer, herbicide, etc.
What is your payment terms of drone?
T/T, Credit card, online transfer, Paypal. 50% deposit before production, balance before delivery.
What is the delivery time of drone?
After payment, 3~7 days for sample order, 10~20 days for bulk order.
How to buy a drone?
Contact our sales in this page to get quotation and buying guide.
How to be your distributor/dealer/agent?
We are looking for agent all over the world. Contact our sales to talk details.

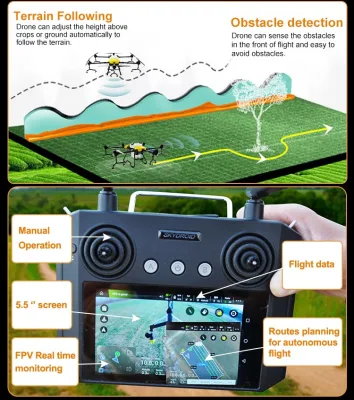

Does your drone have obstacle radar and terrain following?
Yes, the radar module can detect the angle of a slope and automatically adjust to maintain the same distance with the surface even in mountainous terrain. Obstacle Avoidance Obstacle avoidance is used in the following two scenarios: A. The aircraft begins to decelerate when it detects an obstacle is 15 m away and hovers in place when 2.5 m away from the obstacle. Users can not accelerate in the direction of the obstacle but can fly in a direction away from the obstacle. B. The aircraft immediately brakes and hovers if it detects an obstacle nearby. Users cannot control the aircraft when it is braking. When the aircraft is hovering, it is in Obstacle Avoidance mode. Users can fly in a direction away from the obstacle to exit Obstacle Avoidance mode and regain full control of the aircraft.
Can the drone spray solid/granule fertilizer?
Fertilizer spreader (granule spreader) can be installed on the drone to spread solid fertilizer/seed/feed, add more function for the sprayer drone.
Can the drone continue spraying from breakpoint?
The flowmeter can detect volume of water/pesticide sprayed out from the tank and display the data in App in real time. When the tank is empty the drone will hang and stop flying. After refilling it will back to the breakpoint and resume spraying work automatically.
