Product Description
Joyance Drone Agriculture Sprayer
Latest sprayer drone technology, ready to fly(RTF), foldable drone arms, remote control, autopilot by App for flight routes planning, with GPS, with night vision FPV camera, with obstacle avoidance radar.....
Joyance 40L agricultural spray drone, 40 liter pesticide tank, 40 kg payload.
- Aviation aluminum alloy frame and folding joints, durable and tough
- Quick-release smart battery with high energy density, supports fast charging and has a longer life. It can directly display the remaining voltage and power.
- Heavy-duty brushless motor, waterproof and dustproof, with self-cooling system, can work continuously for 12 hours a day.
- Front and rear FPV cameras can monitor the drone's field of view in real time, and there is no need to adjust the drone when retreating.
- Front and rear obstacle detection radar, detecting obstacles in real time;
- Ground-imitating radar can keep the drone at a certain height above the crops to ensure flight safety;
- Ultrasonic flow meter to achieve precise spraying, spray flow error +-3%
- Weighing module enables precise spreading and allows you to set how many kilograms of fertilizer you want to spread per hectare;
- A set of RTK antennas are installed to achieve directional function and prevent magnetic interference.
| Model | JT40L-404 | Net Weight (with 1 battery) | 49kg | Work Temperature | -10~70°C |
| Capacity | 40 liter | Take-off Weight | 80~100kg | Work Humidity | 0~90% |
| Spray Speed | 0~8m/s | Flying Time | 10~15min | Drone Spread Size | 1850*1520*930mm |
| Spray Width | >10~12m | Flying Radius | 0~1000m | Drone Folded Size | 1050*900*930mm |
| Nozzle No. | 4 centrifugal Nozzles | Flying Height | 0~30m | Propeller | Carbon Fiber |
| Spray Efficiency | 16 Hectares/Hour | Flying Downward Airflow | 4~15m/s | Battery / Quantity | 18S 30000mAh * 1pc |
| Spray Flow | 13L/min | Wind Resistance | 10m/s | Adapter + Charger | Fast Charger 7200W |
| Flight Control | VK-V9 FC | Flying Speed | 0~12m/s | Packing Case | Aluminum Case |
| Remote Controller | SKYDROID H12 RC | Motor | Hobbywing X11 MAX | Toolkit | Maintenance/Repair Tools |

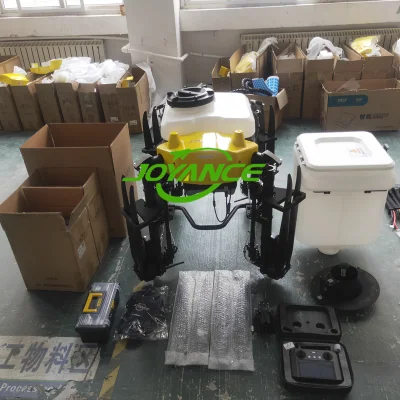

JT40 Aagricultural Drone Sprayer Configuration:
- 1unit of 40Ldrone that is ready to take off and has passed its first flight test;
- A remote control that sets the customer's language and installs the APP;
- Two FPV cameras at the front and rear;
- 2 18S 30000mAh smart batteries;
- 1 7200W smart fast charger;
- 2 obstacle avoidance radars at the front and rear;
- 1 ground-mimicking radar;
- 1 ultrasonic flow meter, which can achieve precise spraying;
- 1 set of weighing modules to achieve precise spreading;
- 1 set of RTK antenna, which can achieve directional function and effectively avoid magnetic interference;
- 1 tool box set;
Cost-Effective Garden Plant Protection Drones Pulverizadores Uav 40L Fumigar RC Agricultural Sprayer T40 Agriculture Crop Spraying Drone 40liter Capacity
Cost-Effective Garden Plant Protection Drones Pulverizadores Uav 40L Fumigar RC Agricultural Sprayer T40 Agriculture Crop Spraying Drone 40liter Capacity
Cost-Effective Garden Plant Protection Drones Pulverizadores Uav 40L Fumigar RC Agricultural Sprayer T40 Agriculture Crop Spraying Drone 40liter Capacity
Cost-Effective Garden Plant Protection Drones Pulverizadores Uav 40L Fumigar RC Agricultural Sprayer T40 Agriculture Crop Spraying Drone 40liter Capacity
Spray efficiency: 16-20 ha/H
Range: 10~12m
Nozzle type : centrifugal nozzles
Nozzle number: 4 pcs
Tank: 40L
Filter class: class 3( water inlet,outlet,nozzle )
Atomizing diameter: 50~100μm
Easy to Control 40L Spraying Uav OEM Agricultural Farm Sprayer Pesticide Drone for Agriculture Use with Fertilizer Sow Spreader Fast Delivery
Spreading rate:5.5ha/Hr
Endurance: 6bags/battery(40kgs/bag, 240kgs)
Range:6~15m(materials amplitude
varies with height)
Max speed:80kgs/min
tank capacity:70L
Applicable materials:0.5~10mm dia. dry granules
- Ultrasonic flow meter to achieve precise spraying, spray flow error +-3%
- Weighing module enables precise spreading and allows you to set how many kilograms of fertilizer you want to spread per hectare;
Cost-Effective Garden Plant Protection Drones Pulverizadores Uav 40L Fumigar RC Agricultural Sprayer T40 Agriculture Crop Spraying Drone 40liter Capacity
Cost-Effective Garden Plant Protection Drones Pulverizadores Uav 40L Fumigar RC Agricultural Sprayer T40 Agriculture Crop Spraying Drone 40liter Capacity
Cost-Effective Garden Plant Protection Drones Pulverizadores Uav 40L Fumigar RC Agricultural Sprayer T40 Agriculture Crop Spraying Drone 40liter Capacity

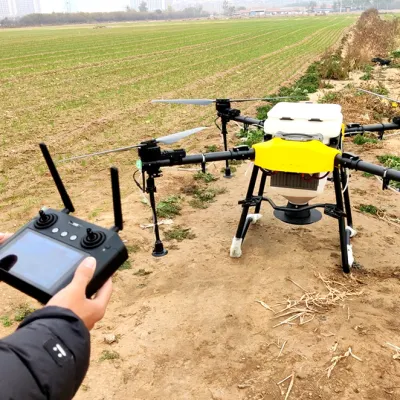

-Plan your plot from the APP directly;
-Front and back FPV camera and nigh lights;
-You can observe the situation around the drone in real time;
-Night lights support the drone work at night;
Our 40L drone is equipped with an RTK antenna, which can realize the directional function. There is no need to carry the machine for GPS calibration, and it can effectively avoid magnetic interference;
-Battery capacity: 18S 30000mAh
-Charger: 7200W fast charger
-Battery charging time: 10-13mins under 11KW, 220V voltage generator

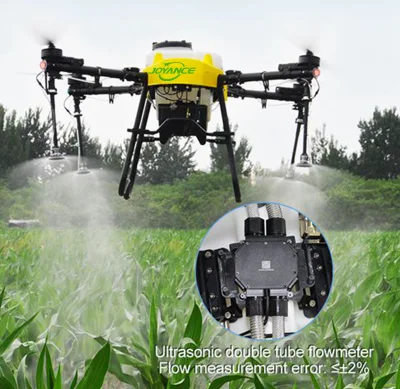

-1 double-tube ultrasonic flow meter, connected to 2 water pumps at the same time, to achieve precise spraying, with a spray flow error of +-3%;
- 70L big solids tank, very suitable for fertilizers, seeds, baits, etc spreading;

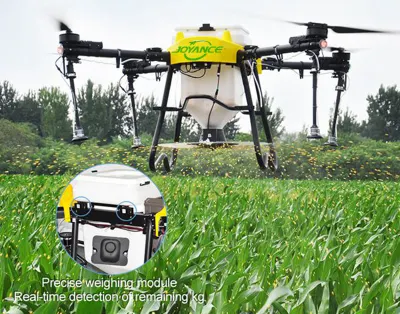

- The 40L drone is equipped with a weighing module, which can display the weight of remaining particles in real time to achieve precise spreading.
You can also set how many kilograms of seeds or fertilizers to sow per hectare;
Cost-Effective Garden Plant Protection Drones Pulverizadores Uav 40L Fumigar RC Agricultural Sprayer T40 Agriculture Crop Spraying Drone 40liter Capacity
JOYANCE TECH is a professional and leading drone agricultural sprayer manufacturer located in China. Since 2016, JOYANCE TECH has focused on the research & development of sprayer drones and UAV application solutions. Our products have obtained CE, FCC, RoHS, ISO9001 certifications along with 19 national patents and 7 software copyrights. We have users and agents in more than 90 countries and have received significant positive feedback.
Our sprayer drones, spreading drones, fogger drones, and biological control drones are widely used in agricultural spraying, seeding, pest control, and public disinfection. After several years of development, we have expertly designed 10lt, 16lt, 30lt, 40lt capacity sprayer drones. We can produce approximately 200 drones per month. The drones undergo 100% indoor and flight tests to ensure they are qualified and ready to fly before delivery.
We offer professional technician support, superior competitive price and fast response after-sales service and one-on-one technical guidance.
Our mission is to make the most desirable drones on the market. Let all farmers can use drones. We also accept OEM orders and looking for agents all over the world.
1. Are you manufacturer?
Yes. Joyance Tech is a leading & professional sprayer drone factory with 10 years Research & Development experiences. We have sold to 90 countries all over the world, we have all models in stock.2. What certificates do you have for your products?
Our products have got CE, FCC, RoHS, ISO 9001 certifications and acquired 13 patents, and have been exported to 90 countries and regions. Our sprayer drones are very popular with farmers.
3. Can this drone fly autonomously?
Yes. It has an autonomously flying app in the remote controller you will mark the points on the app, and the drone will carry out the plan autonomously
4. Does the drone need phone signal/internet to work?
During the spraying, the drone can still work without signal/internet. When planning a plot, you need the Internet. You can plan the plot and save it at home or anywhere else with an Internet connection.
5. Does your drone have GPS? Which satellites?
Yes, the drone has GPS supporting GPS GLONASS GALILEO BDS satellites.
6. What is your warranty policy?
We provide 3 years for the whole machine, 1 year for main parts such as flight control, and 3 months for wearing parts like nozzles and water pumps.
